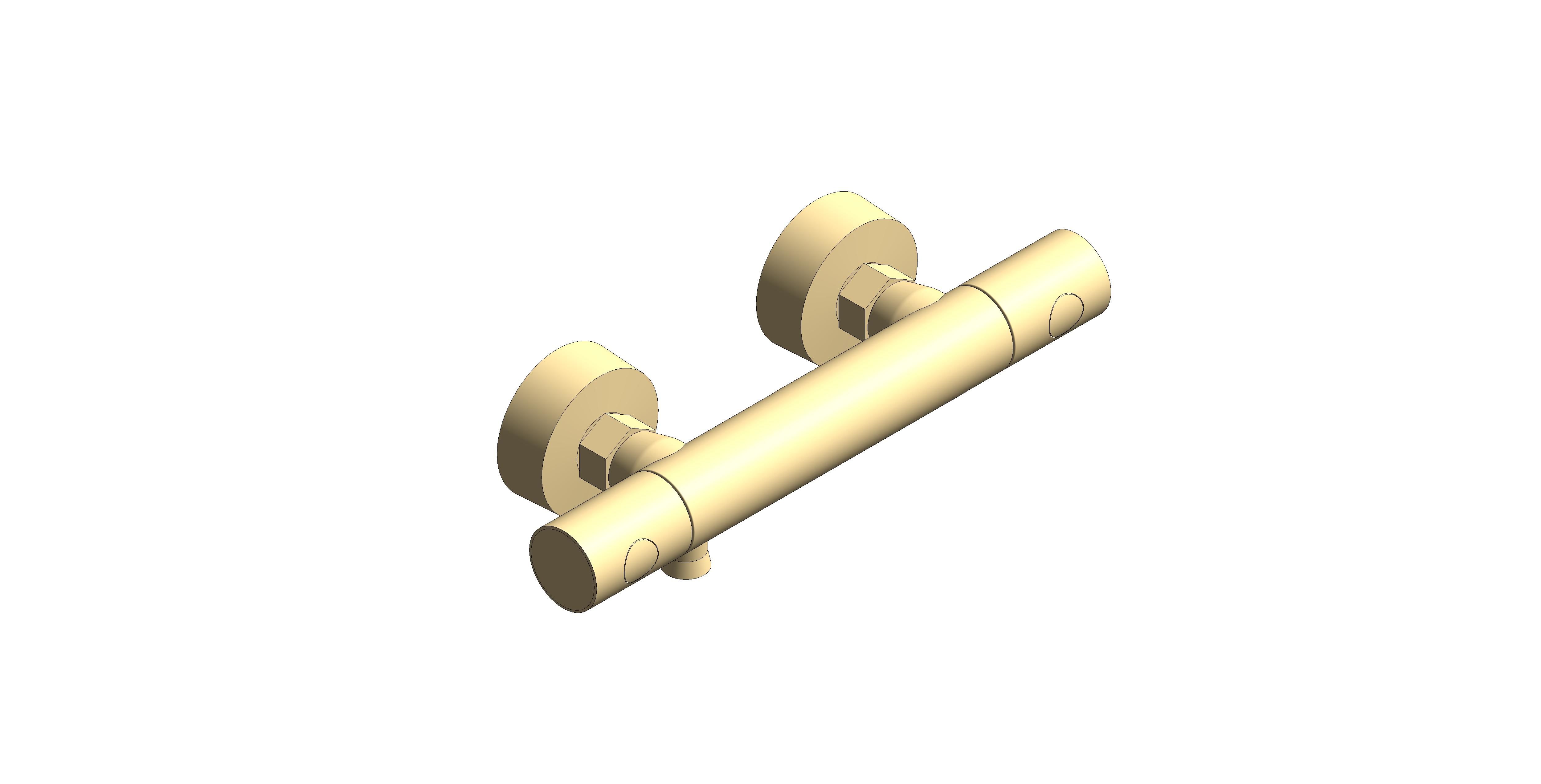

GROTHERM 800 COSMOPOLITAN Shower Safety Mixer (34765GN0)

by GROHE

Download Add to collection

Description

Product Number - 34765GN0

EAN - 4067393115182

Colour - Brushed Cool Sunrise

PRODUCT MAIN FEATURES

Product Page - TBC

Object Data

1 Revision

Last Updated

17/02/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Data Sheet

Object metadata

_AuthorAG
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/847246df-3ed0-439f-8e79-1e5332e9512c/document/object-user-guide
Accessibility Performancen/a
Assembly CodeC1030
Asset TypeFixed
BIM Object NameGrohe_ThermostaticShowerMixer_GROHTHERM800COSMOPOLITAN_34765GN0
Classification NameUniclass2015
Classification ValuePr_40_20_87_81
CO2 Neutral ProductionGROHE is one of the first leading manufacturer within the sanitary industry having a CO2-neutral production.
Code Performancen/a
ColorBrushed Cool Sunrise
Constituentsn/a
Cradle To Cradle CertificationN/A
Created Byinfo-uk@grohe.com
Created On2026-01-29 T09:00:00
CW ConnectionYes
CWFU0
Default Elevation1016.00 mm
Depth70.00 mm
DescriptionWall mounted; GROHE StarLight chrome finish; GROHE MetalGrip ergonomically shaped metal handles; GROHE SafeStop safety button at 38°C; GROHE SafeStop Plus optional temperature limiter at 43 °C included; GROHE TurboStat compact cartridge with wax thermoelement; Integrated mixed water shut off; Volume handle with GROHE EcoButton (economy button with individually adjustable economy stop); Ceramic headpart 1/2", 180°; Shower bottom outlet 1/2"; Built-in non-return valves; Dirt strainers; Protected against backflow; S-unions; Metal escutcheon; GROHE EcoJoy technology for less water and perfect flow.
Dimensions Document Linkcdn.cloud.grohe.com/dimdraw/1000/1800/1840/1848/1848728/1280/1848728.jpg
Documentation Certificateswww.bimstore.co/products/847246df-3ed0-439f-8e79-1e5332e9512c/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/847246df-3ed0-439f-8e79-1e5332e9512c/document/installation-guide
Documentation Literaturewww.bimstore.co/products/847246df-3ed0-439f-8e79-1e5332e9512c/document/product-literature
Documentation Maintenancewww.bimstore.co/products/847246df-3ed0-439f-8e79-1e5332e9512c/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/847246df-3ed0-439f-8e79-1e5332e9512c/document/technical-data-sheet
Duration UnitYear
EcojoyNo
EF000139Coated
EF000278not relevant
EF000958true
EF001469not relevant
EF00170770
EF002149true
EF002286External thread
EF002671Other
EF005474not applicable
EF006974Thermostatic
EF007955true
EF011775EB
EF011779not applicable
EF014578true
EF014591true
EF016712TRUE
EF016731Group I,<= 20 dB(A)
EF017097TRUE
EF017340TRUE
EF017341TRUE
EF020103false
EF020105Yes
EF020259Downwards
EF020780Single-grip
EF020781Cartouche, ball
EF020787Group II, <=30 dB(A)
EF020788true
EF020791Brass
EF020799true
EF020805false
EF020967false
EF021035false
EF021480true
EF021835150
EF021855false
EF022042Z
EF022133false
EF023686not applicable
EF023687true
EF023688With hose connection
EF023957false
EF024919false
EF024921true
EF025098not applicable
EF025102not relevant
EF025109Brushed
EFBE0001TRUE
EFDE0022None
EFNL0001false
EFSE0002true
Expected Life0
FeaturesWall mounted; GROHE StarLight chrome finish; GROHE MetalGrip ergonomically shaped metal handles; GROHE SafeStop safety button at 38°C; GROHE SafeStop Plus optional temperature limiter at 43 °C included; GROHE TurboStat compact cartridge with wax thermoelement; Integrated mixed water shut off; Volume handle with GROHE EcoButton (economy button with individually adjustable economy stop); Ceramic headpart 1/2", 180°; Shower bottom outlet 1/2"; Built-in non-return valves; Dirt strainers; Protected against backflow; S-unions; Metal escutcheon; GROHE EcoJoy technology for less water and perfect flow.
Finishn/a
Full Recyclability Of PlasticAll plastic components are fully recycable
Graden/a
GROHE Social Committmentgreen.grohe.com/social_engagement
GROHE Sustainabilitygreen.grohe.com
Height96.50 mm
HW ConnectionYes
HWFU0
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
KeynoteN13
Length298.00 mm
ManufacturerGrohe
Manufacturer NameGrohe
MaterialBrushed Cool Sunrise
Mixer MaterialGrohe_BrushedCoolSunrise
Model34765GN0
Model Number34765GN0
Model Reference34765GN0
NBS DescriptionShower mixers
NBS Noten/a
NBS Object NameGrohe - Shower mixers
NBS Office Master Tagn/a
NBS Reference45-35-70/335
Nominal Depth70.00 mm
Nominal Height96.50 mm
Nominal Length298.00 mm
PQ Diagram Linkcdn.cloud.grohe.com/PQCharts/lores/3/347/original/34765GN0-pqchart-en_GB.svg
Product Descriptionwall mounted GROHE LongLife finish GROHE MetalGrip ergonomically shaped metal handles GROHE SafeStop safety button at 38°C GROHE SafeStop Plus optional temperature limiter at 43°C included GROHE TurboStat compact cartridge with wax thermoelement integrated mixed water shut off volume handle with GROHE EcoButton (economy button with individually adjustable economy stop) ceramic headpart 1/2"", 180° shower bottom outlet 1/2"" built-in non return valves dirt strainers protected against backflow S-unions metal escutcheon GROHE EcoJoy - Less water, perfect flow
Production Year2026
Product Number34765GN0
Product Page URLwww.grohe.co.uk/en_gb/-34765GN0.html
Product Short TextThermostatic shower mixer 1/2"
Product TypeThermostat
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsinfo-uk@grohe.com
Sustainability Awardgreen.grohe.com/awards
Sustainability Reportgreen.grohe.com/reporting
TPI Document Linkcdn.cloud.grohe.com/tpi/2000/2100/2180/2186/2186857/original/2186857.pdf
Type CommentsGROTHERM Thermostatic Shower Mixer (34765GN0)
Type Name34765GN0
URLwww.grohe.co.uk/
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com
Waste ConnectionNo
