Grohe Zedra Single-Lever Sink Mixer - 32294000

4k
0
- / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

09/09/2015

Download BIM

Add to collection

Available for:

ZedraSingle-lever sink mixer 1/2"single hole installation swivel tubular spout swivel area 360° adjustable flow rate limiter pull-out profi spray automatic returning integrated non-return valve diverter: mousseur/SpeedClean shower jet automatic return to mousseur flexible connection hoses rapid installation system from the top protected against backflowGROHE SilkMove® 46 mm ceramic cartridgeGROHE StarLight® chrome finish GROHE SuperSteel Infinity FinishTMGROHE RealSteel® product material (stainless steel body)

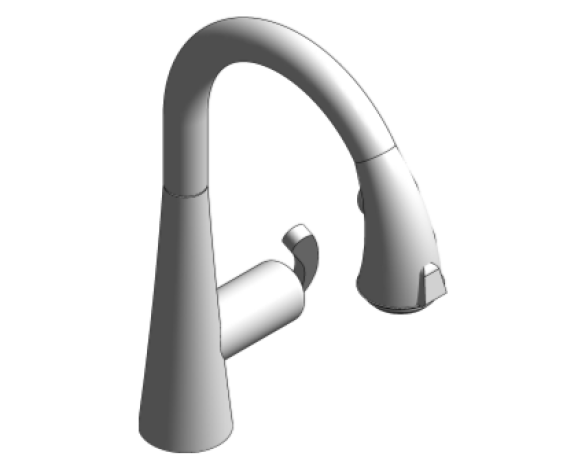

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

_authorized byConnor Laing
_BIMspec_GUID0
_created bybimstore
_current revision2
_distributed bywww.bimstore.co.uk
ADA CompliantYes
Assembly CodeC1030220
Asset TypeFixed
Barcode0
Cold Water Conection Diamiter10 mm
Cold Water Radius5 mm
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
CW ConnectionYes
CWFU4.5
Default Elevation600 mm
DescriptionSink mixer 1/2"
EcojoyNo
Expected Life0
Faucet MaterialGrohe-Chrome
Flow Rate12L/min (Shower) 14L/min(Mousseur)
Height482 mm
Hot Water Conection Diamiter10 mm
Hot Water Radius5 mm
HW ConnectionYes
HWFU4.5
Industry StandardsN/A
KeynoteN13
Length184 mm
Low Emitting MaterialYes
Maintenance Informationcdn08.grohe.com/lib/1/tpi/1734224.pdf
ManufacturerGrohe AG
Mixing LeaverYes
ModelZedra
Model NumberZedra
NameZedra
No of Holes1
Operating Pressure10 bar
Percentage of Recycled Content0
Product Documentation Linkcdn08.grohe.com/lib/1/tpi/1333046.pdf
Product Page URLwww.grohe.com/uk/5546/kitchen/taps/zedra/product-details/?product=32294-G229&color=000
Pull out or Pull DownPull Out
Serial Number0
Spare Parts Listwww.grohe.com/uk/5546/kitchen/taps/zedra/product-details/?product=32294-G229&color=000&%7E%5Bajax%5D=2442
Tag Number0
Type CommentsSink mixer 1/2"
URLwww.grohe.com
Valve Spacing34 mm
Vent ConnectionNo
Warranty InfomationN/A
Waste ConnectionNo
WFU0
Width95 mm
