Grohe Thermostatic Scalding Protection - 34487000

2.8k
0
- / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

24/05/2017

Download BIM

Add to collection

Available for:

temperature adjustment 15-43° C (± 2° C)thermal disinfection without re-adjustment of temperatureconnection 3/8" below with cap nutabove 3/8" male threadGROHE TurboStat thermoelementGROHE StarLight chrome finishbuilt-in non return valvesdirt strainerwithout connection set

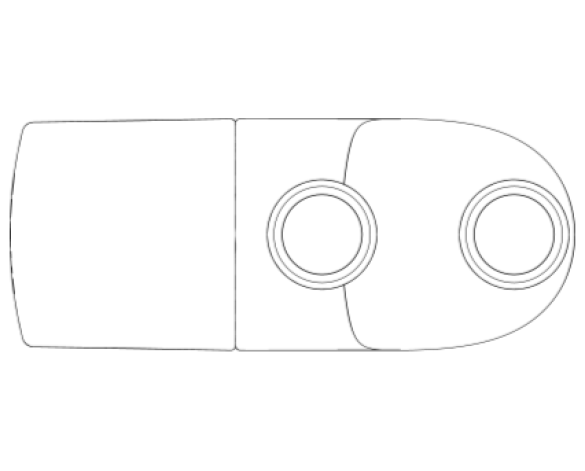

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2015 for use in MEP systems and is in line with 2015 industry standards.

_AuthorRyan Lashley
_Authorized ByKris Atkinson
_Bim Spec Guid0
_BS Bible Version14
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
ADA CompliantNo
Assembly CodeD2010
Asset TypeFixed
BIM Object NamePlumbingFixture_GroheLimited_ScaldingProtection_34487000_METRIC
Classification NameUniclass2015
Classification ValuePr_40_20_87_80
Code Performancen/a
Cold Water Connection Diameter10 mm
ColorChrome
Constituentsn/a
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - Email: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created On2017-05-08T00:00:00
CW ConnectionYes
CWFU4.5
Descriptiontemperature adjustment 15-43° C (± 2° C). thermal disinfection without re-adjustment of temperature. connection 3/8" below with cap nut. above 3/8" male thread. GROHE TurboStat thermoelement. GROHE StarLight chrome finish. built-in non return valves. dirt strainer. without connection set.
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturen/a
Documentation Maintenancen/a
Documentation Technicaln/a
Duration UnitYears
EcojoyNo
Expected Life0
Featurestemperature adjustment 15-43° C (± 2° C). thermal disinfection without re-adjustment of temperature. connection 3/8" below with cap nut. above 3/8" male thread. GROHE TurboStat thermoelement. GROHE StarLight chrome finish. built-in non return valves. dirt strainer. without connection set.
FinishChrome
Graden/a
Hot Water Connection Diameter10 mm
HW ConnectionYes
HWFU4.5
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
Industry Standardsn/a
KeynoteN13
LEED Creditn/a
Low Emitting MaterialNo
ManufacturerGrohe Limited
Manufacturer NameGrohe Limited
Masterformat Number01 52 19
Masterformat TitleSanitary Facilities
MaterialChrome
ModelGrohtherm Micro Thermostatic scalding protection
Model Number34487000
Model ReferenceGrohtherm Micro Thermostatic scalding protection
NBS DescriptionShower mixers
NBS Object NameGrohe Limited - Shower mixers
NBS Office Master Tagn/a
NBS Reference45-35-70/335
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Percentage Of Recycled Contentn/a
Primary MaterialGrohe-Chrome-Polished
Product Documentation Linkwww.grohe.co.uk/en_gb/grohtherm-micro-thermostatic-scalding-protection-34487000.html
Production Year2017
Product Page URLwww.grohe.co.uk/en_gb/grohtherm-micro-thermostatic-scalding-protection-34487000.html
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsn/a
Type Comments34487000
Type NameGrohtherm Micro Thermostatic scalding protection
URLwww.grohe.com
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com
Waste ConnectionNo
WFU0
