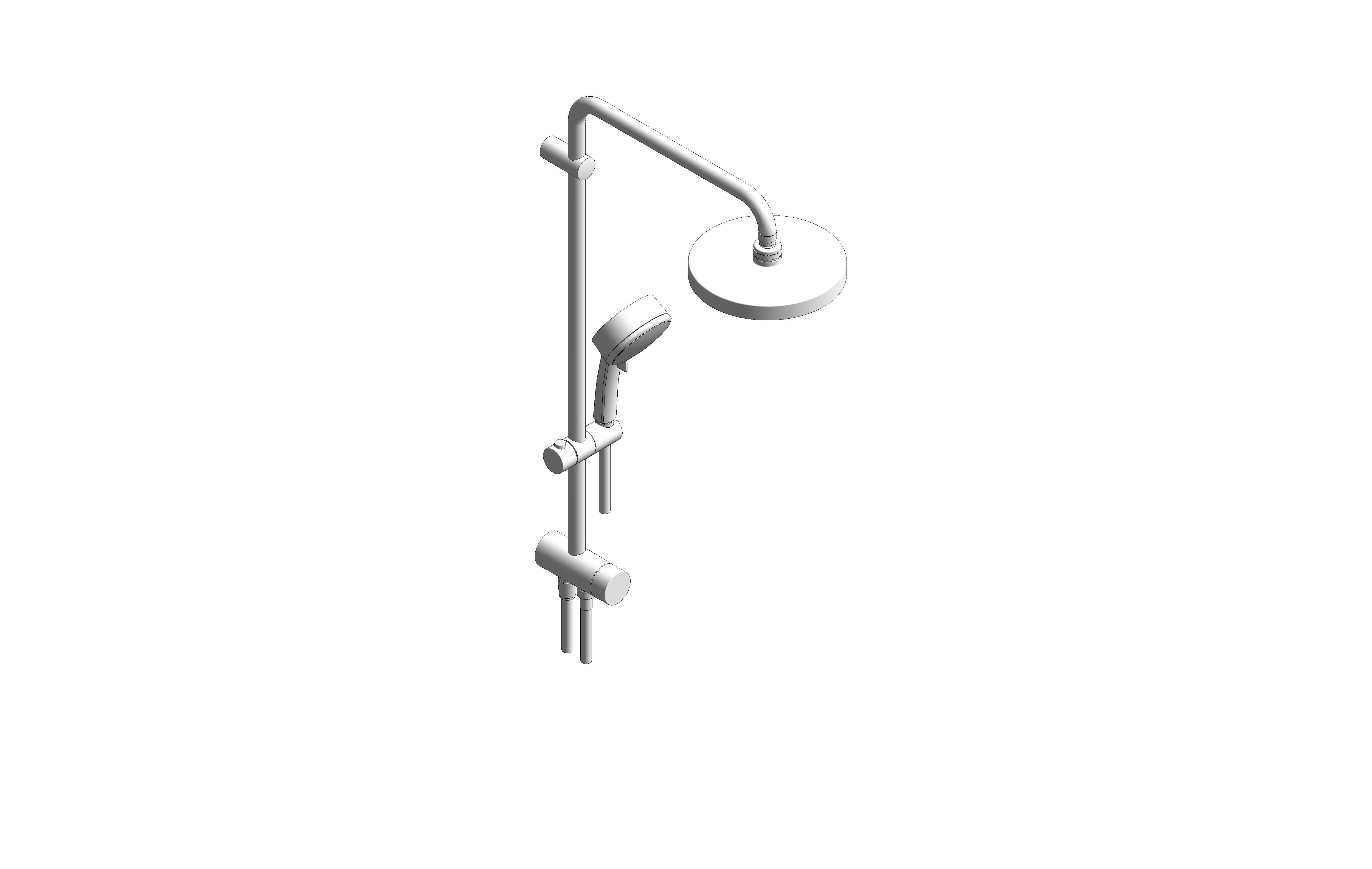

Grohe Tempesta Cosmopolitan System 200 Shower System With Diverter - 27394002

Object metadata

• _AuthorRL
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version16
• _Created Bywww.bimstore.co
• _Current Revision1
• _Distributed Bywww.bimstore.co
• _Object User Guidewww.bimstore.co
• Accessibility Performancen/a
• ADA CompliantNo
• Assembly CodeD2010
• Asset TypeFixed
• BIM Object NameGrohe_PlumbingFixture_TempestaCosmopolitanSystem200_FlexShowerSystemWithDiverterForWallMounting_27394002
• Classification NameUniclass 2015
• Classification ValuePr_40_20_87_75
• Code Performancen/a
• Cold Water Connection Diameter10 mm
• ColorChrome
• Constituentsn/a
• Contact Groheinfo-uk@grohe.com
• Created Byinfo-uk@grohe.com
• Created On2020-03-01T09:00:00
• CWFU4.5
• Default Elevation0 mm
• Descriptionn/a
• Documentation Certificateswww.grohe.co.uk/
• Documentation Installation Guidewww.grohe.co.uk/
• Documentation Literaturewww.grohe.co.uk/
• Documentation Maintenancewww.grohe.co.uk/
• Documentation Technicalwww.grohe.co.uk/
• Duration UnitYears
• EcojoyNo
• Expected Life0
• Faucet MaterialGrohe-Chrome
• Featureshorizontal 390 mm shower arm, adjustable before installation change by diverter between hand shower, head shower or head shower Eco setting head shower Tempesta Cosmopolitan 200 (27 541) 2 spray patterns (via diverter): Rain, SmartRain with ball joint, rotation angle ± 15° hand shower Tempesta Cosmopolitan 100 (27 573) 4 spray patterns: GROHE Rain O², Rain, Massage, Jet adjustable in height with gliding element distance between diverter and upper bracket: 620 mm shower hose Relexaflex 1500 mm (28 151) shower hose Relexaflex 1250 mm (28 150) flexible installation: connection to faucet / wall union for water supply with 1/2" thread of the 1250 mm shower hose minimum flow rate 7 l/min GROHE DreamSpray perfect spray pattern GROHE StarLight chrome finish SpeedClean anti-lime system Inner WaterGuide for a longer life
• Finishn/a
• Graden/a
• Hot Water Connection Diameter10 mm
• HWFU4.5
• Ifc Export AsIfcPipeFitting
• Ifc Export TypeIfcPipeFittingType
• Industry Standardsn/a
• KeynoteN13
• LEED Creditn/a
• Low Emitting MaterialNo
• ManufacturerGrohe
• Manufacturer NameGrohe
• Masterformat Number01 52 19
• Masterformat TitleSanitary Facilities
• Materialn/a
• ModelTempesta Cosmopolitan System 200
• Model Number27394002
• Model ReferenceTempesta Cosmopolitan System 200 - Flex shower system with diverter for wall mounting
• NBS DescriptionShower fittings package
• NBS Object NameGrohe - Shower fittings package
• NBS Office Master Tagn/a
• NBS Reference45-35-70/330
• Nominal Depth0 mm
• Nominal Height0 mm
• Nominal Length0 mm
• Percentage Of Recycled Contentn/a
• Product Documentation Linkn/a
• Production Year2020
• Product Page URLpro.grohe.com/30898/search/search-result/product-details/?product=27394-G361&color=002&material=27394000
• Referenced Standardn/a
• Replacement Costn/a
• Shapen/a
• Sizen/a
• Spare Partsinfo-uk@grohe.com
• Type CommentsFlex shower system with diverter for wall mounting
• Type NameTempesta Cosmopolitan System 200 - Flex shower system with diverter for wall mounting
• URLwww.grohe.com
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYears
• Warranty Guarantor Laborinfo-uk@grohe.com
• Warranty Guarantor Partsinfo-uk@grohe.com
