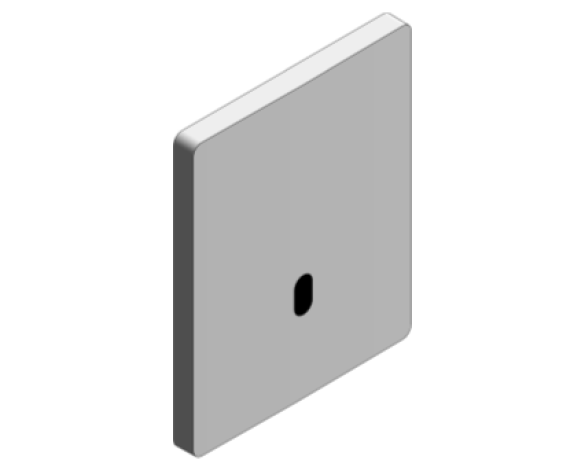

TECTRON SKATE Infra-red electronic for Urinal (37321SH1)

3k
0
- / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

22/03/2017

Download BIM

Add to collection

Available for:

Tectron SkateInfra-red electronic for urinalwith infrared sensor for bi-directional communication for monitoring, configuration and service purposewith transformer 100-230 V AC, 50-60 Hz, 6 V DCcartridge with solenoid valve and dirt strainerfront plate 116 x 144 mmflow pressure min 0.5 baroperating pressure max 10 bar7 pre-set programs:auto flushcleaning modepre-flush on/offadditional functions and precise settings by remote control 36 407adjustable flow time by hand or remoteset for final installationfor Rapido UCE approved

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

_authorized byKris Atkinson
_BIMspec_GUID0
_created byRyan Lashley
_current revision1
_distributed bywww.bimstore.co.uk
ADA CompliantNo
Assembly CodeC1030220
Asset TypeFixed
Classification NameUniclass 2015
Classification ValuePr_40_20_87_75
Cold Water Connection Diameter10 mm
ColorChrome
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnFebruary 2017
CW ConnectionYes
CWFU4.5
Default Elevation600 mm
DescriptionTectron Skate. Infra-red electronic for urinal. with infrared sensor for bi-directional communication for monitoring, configuration and service purpose. with transformer 100-230 V AC, 50-60 Hz, 6 V DC. cartridge with solenoid valve and dirt strainer. front plate 116 x 144 mm. flow pressure min 0.5 bar. operating pressure max 10 bar. 7 pre-set programs: auto flush. cleaning mode. pre-flush on/off. additional functions and precise settings by remote control 36 407. adjustable flow time by hand or remote. set for final installation. for Rapido U. CE approved
Duration UnitYears
EcojoyYes
Expected Life0
Faucet MaterialGrohe-Chrome
FeaturesTectron Skate. Infra-red electronic for urinal. with infrared sensor for bi-directional communication for monitoring, configuration and service purpose. with transformer 100-230 V AC, 50-60 Hz, 6 V DC. cartridge with solenoid valve and dirt strainer. front plate 116 x 144 mm. flow pressure min 0.5 bar. operating pressure max 10 bar. 7 pre-set programs: auto flush. cleaning mode. pre-flush on/off. additional functions and precise settings by remote control 36 407. adjustable flow time by hand or remote. set for final installation. for Rapido U. CE approved
FinishChrome
Hot Water Connection Diameter10 mm
HW ConnectionYes
HWFU4.5
Industry Standardsn/a
KeynoteN13
Low Emitting MaterialNo
ManufacturerGrohe Limited
Masterformat Number01 52 19
Masterformat TitleSanitary Facilities
MaterialChrome
ModelTectron Skate - Wall Plate
Model NumberTectron Skate - 37321SH1
NBS DescriptionFlush control devices
NBS Object NameFlush control devices
NBS Reference90-15-35/4700
Production Year2016
SensorPlastic, Opaque Black
Type CommentsTectron Skate - 37321SH1
Type NameTectron Skate - Wall Plate
URLwww.grohe.com
Vent ConnectionNo
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
