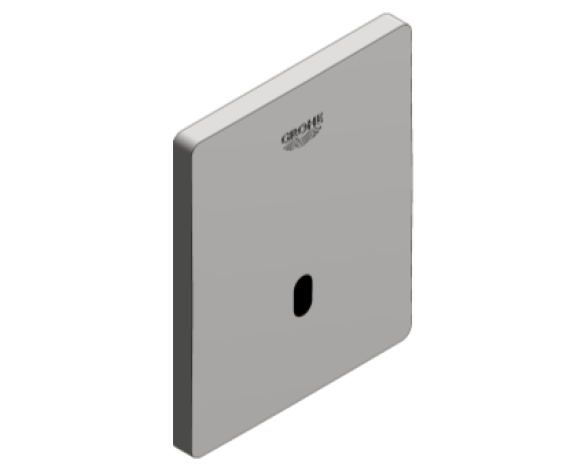

Grohe Tectron Skate - 37503000

3.3k
0
- / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

24/05/2017

Download BIM

Add to collection

Available for:

for Rapido U 37 338 000with transformer 100-240 V AC, 50-60 Hz, 6.75 V DCwith infrared sensor and Bluetooth module for bi-directional communication for monitoring, configuration and service purposeGROHE StarLight finishflow pressure min 0.5 baroperating pressure max 10 bar with Bluetooth® 4.0* for wireless data communicationBluetooth® transmitter frequency: 2.4 GHzfor Apple** and Android devicesBluetooth range (max. 10 m) varies depending on materials used and walls between transmitter and receiver

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2015 for use in MEP systems and is in line with 2015 industry standards.

_AuthorRyan Lashley
_Authorized ByKris Atkinson
_Bim Spec Guid0
_BS Bible Version14
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
ADA CompliantNo
Assembly CodeD2010
Asset TypeFixed
BIM Object NamePlumbingFixture_GroheLimited_TectronSkate_37503000_METRIC
Classification NameUniclass2015
Classification ValuePr_60_60_96_26
Code Performancen/a
Cold Water Connection Diameter10 mm
ColorChrome
Constituentsn/a
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - Email: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created On2017-05-08T00:00:00
CW ConnectionNo
CWFU4.5
Default Elevation0 mm
Descriptionfor Rapido U 37 338 000. with transformer 100-240 V AC, 50-60 Hz, 6.75 V DC. with infrared sensor and Bluetooth module for bi-directional communication for monitoring, configuration and service purpose. GROHE StarLight finish. flow pressure min 0.5 bar. operating pressure max 10 bar. with Bluetooth® 4.0* for wireless data communication. Bluetooth® transmitter frequency: 2.4 GHz. for Apple** and Android devices. Bluetooth range (max. 10 m) varies depending on materials used and walls between transmitter and receiver. monitoring. password protected products. app detects all Bluetooth products in range. auto flush cycles and timing last auto flush. usage per day over 30 days. configuration. detection range and shut off delay. auto flush. cleaning mode. 2 on/off timers. identification by name. service. send and save 3 profiles. reset to factory or user settings. CE approved. hard and software version.
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturen/a
Documentation Maintenancen/a
Documentation Technicaln/a
Duration UnitYears
EcojoyNo
Expected Life0
Featuresfor Rapido U 37 338 000. with transformer 100-240 V AC, 50-60 Hz, 6.75 V DC. with infrared sensor and Bluetooth module for bi-directional communication for monitoring, configuration and service purpose. GROHE StarLight finish. flow pressure min 0.5 bar. operating pressure max 10 bar. with Bluetooth® 4.0* for wireless data communication. Bluetooth® transmitter frequency: 2.4 GHz. for Apple** and Android devices. Bluetooth range (max. 10 m) varies depending on materials used and walls between transmitter and receiver. monitoring. password protected products. app detects all Bluetooth products in range. auto flush cycles and timing last auto flush. usage per day over 30 days. configuration. detection range and shut off delay. auto flush. cleaning mode. 2 on/off timers. identification by name. service. send and save 3 profiles. reset to factory or user settings. CE approved. hard and software version.
FinishChrome
Graden/a
Hot Water Connection Diameter10 mm
HW ConnectionNo
HWFU4.5
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
Industry Standardsn/a
KeynoteN13
LEED Creditn/a
Low Emitting MaterialNo
ManufacturerGrohe Limited
Manufacturer NameGrohe Limited
Masterformat Number01 52 19
Masterformat TitleSanitary Facilities
MaterialChrome
ModelTectron Skate Bluetooth Infra-red electronic for Urinal
Model Number37503000
Model ReferenceTectron Skate Bluetooth Infra-red electronic for Urinal
NBS DescriptionInstantaneous shower units, electric
NBS Object NameGrohe Limited - Instantaneous shower units, electric
NBS Office Master Tagn/a
NBS Reference90-15-35/390
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Percentage Of Recycled Contentn/a
Primary MaterialGrohe-Chrome-Polished
Product Documentation Linkwww.grohe.co.uk/en_gb/tectron-skate-infra-red-electronic-for-urinal-37503000.html
Production Year2017
Product Page URLwww.grohe.co.uk/en_gb/tectron-skate-infra-red-electronic-for-urinal-37503000.html
Referenced Standardn/a
Replacement Costn/a
Sensor MaterialPlastic, Opaque Black
Shapen/a
Sizen/a
Spare Partsn/a
Type Comments37503000
Type NameTectron Skate Bluetooth Infra-red electronic for Urinal
URLwww.grohe.com
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com
Waste ConnectionNo
WFU0
