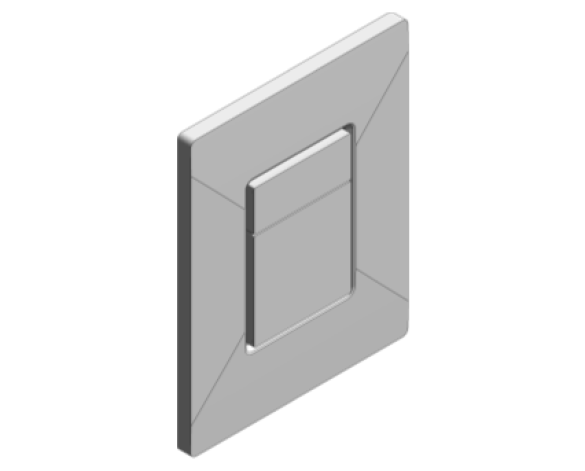

SKATE COSMOPOLITAN Flush plate (38732SH0)

Description

Skate CosmopolitanWall platefor dual flush or start & stop actuationfor pneumatic discharge valve AV1vertical and horizontal installation156 x 197 mmmade of ABSGROHE EcoJoy® technology for less water and perfect flow

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

Object Data

1 Revision

Last Updated

22/03/2017

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_authorized byKris Atkinson
_BIMspec_GUID0
_created byRyan Lashley
_current revision1
_distributed bywww.bimstore.co.uk
ADA CompliantNo
Assembly CodeC1030220
Asset TypeFixed
Classification NameUniclass 2015
Classification ValuePr_40_20_87_75
Cold Water Connection Diameter10 mm
ColorChrome
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnFebruary 2017
CW ConnectionYes
CWFU4.5
Default Elevation600 mm
DescriptionSkate Cosmopolitan. Wall plate. for dual flush or start & stop actuation. for pneumatic discharge valve AV1. vertical and horizontal installation. 156 x 197 mm. made of ABS. GROHE EcoJoy® technology for less water and perfect flow
Duration UnitYears
EcojoyYes
Expected Life0
Faucet MaterialGrohe-Chrome
FeaturesSkate Cosmopolitan. Wall plate. for dual flush or start & stop actuation. for pneumatic discharge valve AV1. vertical and horizontal installation. 156 x 197 mm. made of ABS. GROHE EcoJoy® technology for less water and perfect flow
FinishChrome
Hot Water Connection Diameter10 mm
HW ConnectionYes
HWFU4.5
Industry Standardsn/a
KeynoteN13
Low Emitting MaterialNo
ManufacturerGrohe Limited
Masterformat Number01 52 19
Masterformat TitleSanitary Facilities
MaterialChrome
ModelSkate Cosmopolitan - Wall plate
Model NumberSkate Cosmopolitan - 38732SH0
NBS DescriptionFlush control devices
NBS Object NameFlush control devices
NBS Reference90-15-35/4700
Production Year2016
Type CommentsSkate Cosmopolitan - 38732SH0
Type NameSkate Cosmopolitan - Wall plate
URLwww.grohe.com
Vent ConnectionNo
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
