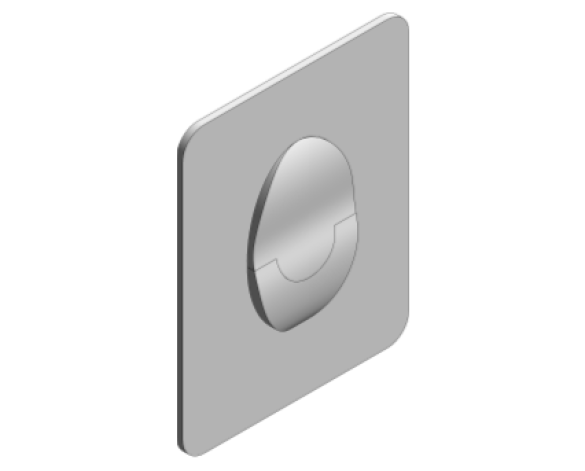

Grohe Skate Air WC Wall Plate - 38506000 - 38506SH0

Object metadata

• _BIMspec_GUID0
• _created byConnor Laing
• _created dateSeptember 2014
• _current revision1
• _distributed bywww.bimstore.co.uk
• ADA CompliantYes
• Assembly CodeC1030220
• Asset TypeFixed
• Connection Diameter10 mm
• Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
• Created OnSeptember 2014
• CW ConnectionNo
• CWFU4.5
• Default Elevation600 mm
• EcojoyYes
• Expected Life0
• Faucet MaterialGrohe-White
• Flow Pressuremin 1 bar/recommended 1-5bar
• Flow Rate5.4L/min
• Height139 mm
• HW ConnectionNo
• HWFU4.5
• Industry StandardsN/A
• KeynoteN13
• Length112 mm
• Low Emitting MaterialYes
• Maintenance Informationcdn08.grohe.com/lib/1/tpi/1734224.pdf
• ManufacturerGrohe AG
• Manufacturers AddressWorld Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF
• Manufacturers Emailinfo-uk@grohe.com
• Manufacturers Telephone Number08712003414
• Mixed Water Radius5 mm
• ModelSkate Air 38506SH0
• Model NumberSkate Air 38506SH0
• NameSkate Air 38506SH0
• Operating Pressuremax 10 bar
• Percentage of Recycled Content0
• Product Documentation Linkcdn08.grohe.com/lib/1/tpi/1747593.pdf
• Product Page URLwww.grohe.com/uk/5408/bathroom/sanitary-systems/skate-skate-air/product-details/?product=38506-D023&color=SH0&material=38506000
• Spare Parts Listwww.grohe.com/uk/5408/bathroom/sanitary-systems/skate-skate-air/product-details/?product=38506-D023&color=SH0&material=38506000
• Tag Number0
• Temp - Hot Water Supplymax 80 deg C
• Temp - Hot Water Supply (Recommended)60 deg C
• Test Pressure3 bar
• Type CommentsFlush system for dual flush or start stop activation
• URLwww.grohe.com
• Vent ConnectionNo
• Version0
• Warranty InfomationN/A
• Waste ConnectionNo
• WFU0
• Width34 mm
