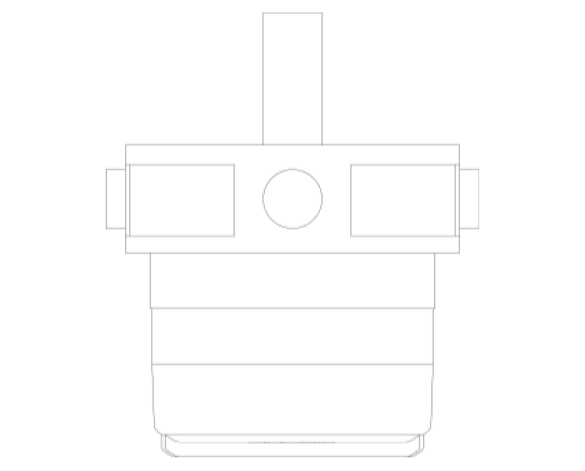

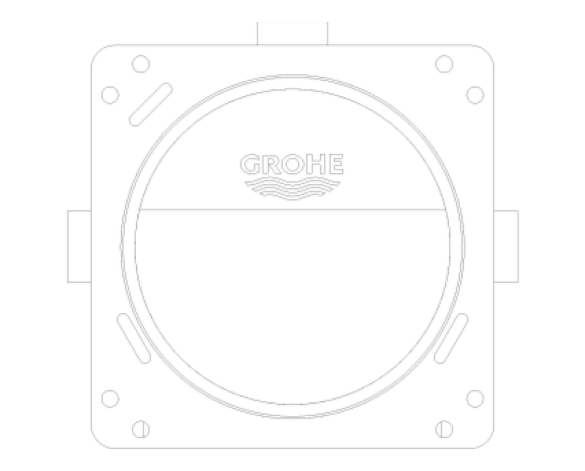

Grohe Rapido SmartBox - 35600000

by GROHE

Download Add to collection

Description

3 outlets 1/2"2 inlets below, 1/2"installation depth 75-105 mmconnection unit in DR brasspre-mounted flushing plugstable build-in box and protective coverfixing options for solid walls and dry claddinggasketwithout set for final installation

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2015 for use in MEP systems and is in line with 2015 industry standards.

Object Data

2 Revision

Last Updated

20/11/2017

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_AuthorRyan Lashley
_Authorized ByRyan Lashley
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
ADA CompliantNo
Assembly CodeD2010
Asset TypeFixed
BIM Object NameGrohe_PlumbingFixtures_RapidoSmartBox_UniversalRoughInBox_35600000_Metric
Classification NameUniclass2015
Classification Valuen/a
Code Performancen/a
ColorBlue & Grey
Constituentsn/a
Created Byinfo-uk@grohe.com
Created On2017-11-01T09:00:00
CW ConnectionYes
CWFU4.5
Default Elevation0 mm
Description3 outlets 1/2" 2 inlets below, 1/2" installation depth 75-105 mm connection unit in DR brass pre-mounted flushing plug stable build-in box and protective cover fixing options for solid walls and dry cladding gasket without set for final installation
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturen/a
Documentation Maintenancen/a
Documentation Technicaln/a
Duration UnitYears
EcojoyNo
Expected Life0
Features3 outlets 1/2" 2 inlets below, 1/2" installation depth 75-105 mm connection unit in DR brass pre-mounted flushing plug stable build-in box and protective cover fixing options for solid walls and dry cladding gasket without set for final installation
FinishPlastic & Brass
Graden/a
HW ConnectionYes
HWFU4.5
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
Industry Standardsn/a
KeynoteN13
LEED Creditn/a
Low Emitting MaterialNo
ManufacturerGrohe
Manufacturer NameGrohe
Masterformat Number01 52 19
Masterformat TitleSanitary Facilities
Materialn/a
ModelGROHE Rapido SmartBox Universal rough-in box, 1/2"
Model Number35600000
Model ReferenceGROHE Rapido SmartBox Universal rough-in box, 1/2"
NBS Descriptionn/a
NBS Object Namen/a
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Percentage Of Recycled Contentn/a
Product Documentation Linkwww.grohe.co.uk/en_gb/universal-rough-in-box-1-2-35600000.html
Production Year2017
Product Page URLwww.grohe.co.uk/en_gb/universal-rough-in-box-1-2-35600000.html
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsn/a
Type Comments35600000
Type NameGROHE Rapido SmartBox Universal rough-in box, 1/2"
URLwww.grohe.com
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com
Waste ConnectionNo
WFU0
