Grohe Rapid SL WC - 38948000

  • Revit, Bim, Store, Components, MEP, Object, Grohe, Plumbing, Fixtures, 14, METRIC, Rapid, SL, 5, in, 1, set, for, WC, 38827000
  • Revit, Bim, Store, Components, MEP, Object, Grohe, Plumbing, Fixtures, 14, METRIC, Rapid, SL, 5, in, 1, set, for, WC, 38827000
  • Revit, Bim, Store, Components, MEP, Object, Grohe, Plumbing, Fixtures, 14, METRIC, Rapid, SL, 5, in, 1, set, for, WC, 38827000
  • Revit, Bim, Store, Components, MEP, Object, Grohe, Plumbing, Fixtures, 14, METRIC, Rapid, SL, 5, in, 1, set, for, WC, 38827000
  • Views 1.9k
  • Comments 0
  • Rating- / 5
    Rate this product
    1/5 Rating1/5 Rating2/5 Rating2/5 Rating3/5 Rating3/5 Rating4/5 Rating4/5 Rating5/5 Rating5/5 Rating

CEN442

Compliant

COBie

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

17/02/2016

Available for:
  • Logo: Autodesk Revit

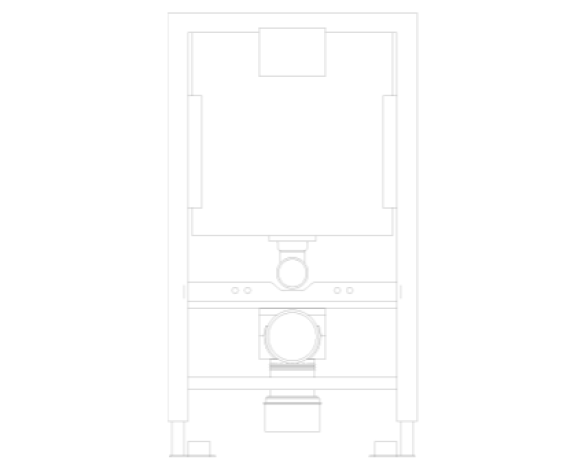

Rapid SL 2-in-1 set for WCwith flushing cistern 6 - 9 l for on-the-wall installations or studded walls0.82 m installation height powder coated steel frame, self-supporting for dry-cladding, completely pre-assembled with fixed connections for single or series installation quick adjustment, lockable fixing material, TÜV approved 2 WC fixing bolts, fixing device for ceramic distance of fixing bolts 180/230 mm outlet bend Ø 90 mm depth adjustable reducer Ø 90/110 mm inlet and outlet connecting set pneumatic discharge valve offering 3 modes of operation: dual flush or start/stop or non-interruptiblefront actuation water supply from left/right or back low noise (group I acc. to German Noise Specification) insulated against condensation ½" water supply connection including integrated angle valve and push fit flexible hose union protecting blockGROHE EcoJoy® technology for less water and perfect flowGROHE StarLight® chrome finishwith wall brackets for on-the-wall installations

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.
