Compliant
Compliant
Compliant
1 Revision
12/02/2018

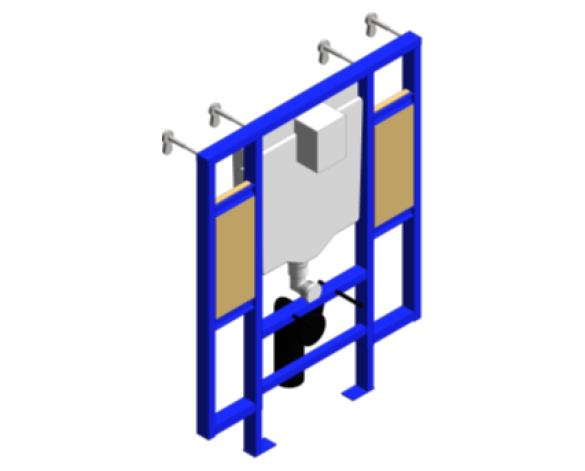

flushing cistern GD 21.13 m installation heightwith fixing element for back support and barsfor the disabledfor WC bowls 70 cm projectionfor on-the-wall installations or studded wallspowder coated steel frame, self-supportingfor dry-cladding, completely pre-assembledwith fixed connectionsquick adjustment, lockablefixing materialTÜV approved2 WC fixing bolts4 wall bracketsfixing device for ceramicdistance of fixing bolts 180/230 mmPP outlet bend Ø 90 mmdepth adjustablereducer Ø 90/110 mminlet and outlet connecting setflushing cistern GD 2, 6 - 9 ladjustment ex factory 6 l and 3 lpneumatic discharge valve offering 3 modes of operation: dual flush or start/stop or single flushwater supply from left/right or backlow noise (group I acc. to German Noise Specification)insulated against condensation½" water supply connection including integrated angle valve and push fit flexible hose unionno tools required for the installation of the inspection shaft including protection during construction phasefor vertical or horizontal useaccessories for on-the-wall installation
for mounting of small flush plates please order revision shaft 40 911 000 (sold separately)
This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.
This component is created in Revit 2015 for use in MEP systems and is in line with 2015 industry standards.
Read moreWe have more variations, please download the object to get them all.
