Grohe Rapid SL For WC - 38599001

3.8k
0
3 / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

23/03/2016

Download BIM

Add to collection

Available for:

Rapid SL for WC. flushing cistern 6 l. 1.13 m installation height. 0.42 m wide. for installation in front of studded walls or free-standing installation. powder coated steel frame, self-supporting. for dry-cladding, completely pre-assembled. height adjustable fitting connections. for single or rail installation. fixing material. TÜV approved. 2 WC fixing bolts. fixing device for ceramic. distance of fixing bolts 180/230 mm. PVC outlet bend 100 mm. inlet and outlet connecting set. pneumatic discharge valve offering 3 modes of operation: dual flush or start/stop or single flush. low noise (group I acc. to German Noise Specification). P-I/IX 3064/l. insulated against condensation. without accessories for on-the-wall installation

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

_authorized byKris Atkinson
_BIMspec_GUID0
_created byRyan Lashley
_current revision1
_distributed bywww.bimstore.co.uk
ADA CompliantNo
Assembly CodeC1030220
Asset TypeFixed
Classification NameUniclass 2015
Classification ValuePr_40_20_93_79
Cold Water Connection Diameter10 mm
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnMarch 2016
CW ConnectionYes
CWFU4.5
Default Elevation600 mm
DescriptionRapid SL for WC. flushing cistern 6 l. 1.13 m installation height. 0.42 m wide. for installation in front of studded walls or free-standing installation. powder coated steel frame, self-supporting. for dry-cladding, completely pre-assembled. height adjustable fitting connections. for single or rail installation. fixing material. TÜV approved. 2 WC fixing bolts. fixing device for ceramic. distance of fixing bolts 180/230 mm. PVC outlet bend 100 mm. inlet and outlet connecting set. pneumatic discharge valve offering 3 modes of operation: dual flush or start/stop or single flush. low noise (group I acc. to German Noise Specification). P-I/IX 3064/l. insulated against condensation. without accessories for on-the-wall installation

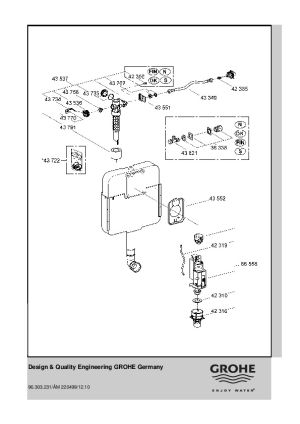

Documentation Technicald3unq1hljpybmw.cloudfront.net/tpi/1000/1400/1490/1491/1491585/original/1491585.pdf
Duration UnitYears
EcojoyNo
Expected Life0
Faucet MaterialGrohe-Chrome
FeaturesTÜV approved. 2 WC fixing bolts. fixing device for ceramic. distance of fixing bolts 180/230 mm. PVC outlet bend 100 mm. inlet and outlet connecting set
Height1130 mm
Hot Water Connection Diameter10 mm
HW ConnectionYes
HWFU4.5
Industry Standardsn/a
KeynoteN13
Length420 mm
Low Emitting MaterialNo
ManufacturerGrohe Limited
Masterformat Number01 52 19
Masterformat TitleSanitary Facilities
ModelRapid SL For WC
Model Number38599001
NBS DescriptionUrinal flushing valves;
NBS Object NameUrinal flushing valves;
NBS Reference45-35-70/355
Product Documentation Linkwww.grohe.com/30898/search/search-result/product-details/?product=38599-D024&color=001&material=38599001
Product Page URLwww.grohe.com/30898/search/search-result/product-details/?product=38599-D024&color=001&material=38599001
Production Year2016
Size195x420x1130mm
Type Comments38599001
Type NameRapid SL For WC
URLwww.grohe.com
Vent ConnectionNo
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
Width195 mm
