Grohe Rapid SL For Grohe Sensia IGS Shower WC - 39128001

Description

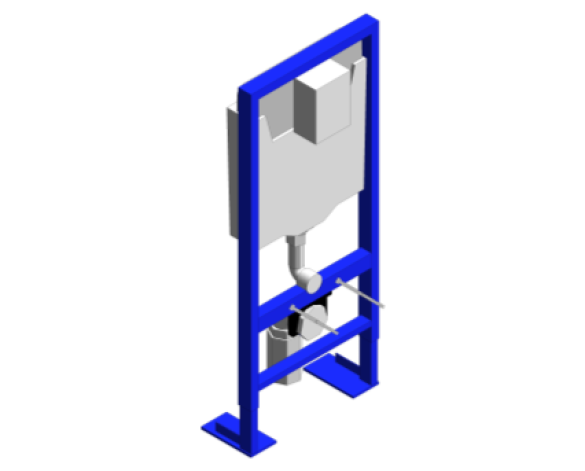

Rapid SL for GROHE Sensia® IGS shower WC. flushing cistern GD 2. with small maintenance access. 1.13 m installation height. for on-the-wall installations or studded walls. powder coated steel frame, self-supporting. for dry-cladding, completely pre-assembled with fixed connections. for single or rail installation

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

Object Data

1 Revision

Last Updated

23/03/2016

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

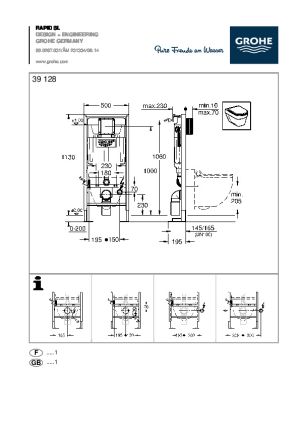

Technical Data Sheet

Product Data Sheet

Object metadata

_authorized byKris Atkinson
_BIMspec_GUID0
_created byRyan Lashley
_current revision1
_distributed bywww.bimstore.co.uk
ADA CompliantNo
Assembly CodeC1030220
Asset TypeFixed
Classification NameUniclass 2015
Classification ValuePr_40_20_93_79
Cold Water Connection Diameter10 mm
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnMarch 2016
CW ConnectionYes
CWFU4.5
Default Elevation600 mm
DescriptionRapid SL for GROHE Sensia® IGS shower WC. flushing cistern GD 2. with small maintenance access. 1.13 m installation height. for on-the-wall installations or studded walls. powder coated steel frame, self-supporting. for dry-cladding, completely pre-assembled with fixed connections. for single or rail installation
Documentation Technicald3unq1hljpybmw.cloudfront.net/tpi/1000/1800/1830/1838/1838975/original/1838975.pdf
Duration UnitYears
EcojoyNo
Expected Life0
Faucet MaterialGrohe-Chrome
FeaturesRapid SL for GROHE Sensia® IGS shower WC. flushing cistern GD 2. with small maintenance access. 1.13 m installation height. for on-the-wall installations or studded walls. powder coated steel frame, self-supporting. for dry-cladding, completely pre-assembled with fixed connections. for single or rail installation
Frame MaterialSteel, Paint Finish, Blue
Height1130 mm
Hot Water Connection Diameter10 mm
HW ConnectionYes
HWFU4.5
Industry Standardsn/a
KeynoteN13
Length500 mm
Low Emitting MaterialNo
ManufacturerGrohe Limited
Masterformat Number01 52 19
Masterformat TitleSanitary Facilities
ModelSL For Grohe Sensia IGS Shower WC
Model Number39128001
NBS DescriptionUrinal flushing valves;
NBS Object NameUrinal flushing valves;
NBS Reference45-35-70/355
Product Documentation Linkwww.grohe.com/30898/search/search-result/product-details/?product=39128-D024&color=000&material=39128000
Product Page URLwww.grohe.com/30898/search/search-result/product-details/?product=39128-D024&color=000&material=39128000
Production Year2016
Size195x500x1130mm
Type Comments39128001
Type NameSL For Grohe Sensia IGS Shower WC
URLwww.grohe.com
Vent ConnectionNo
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
Width195 mm
