Grohe Power & Soul System 190 Shower System With Thermostat - 27909000

by GROHE

Download Add to collection

Description

Power&Soul® System 190Shower system with thermostat for wall mountingconsisting of horizontal swivable 450 mm shower arm exposed thermostat with Aquadimmer function allows change between: Power&Soul head shower (27 766 000) with ball joint rotation angle ± 20° hand shower Power&Soul 115 (27 669 000) adjustable in height with gliding element (12 140 000) Silverflex shower hose 1 750 mm (28 388 000) minimum flow rate 7 l/min.GROHE TurboStat® compact cartridge with wax thermoelementGROHE One-click showering spray selection via push of a buttonGROHE DreamSpray® perfect spray pattern GROHE StarLight® chrome finishGROHE CoolTouch® no risk of scalding SpeedClean anti-lime systemInner WaterGuide for a longer life

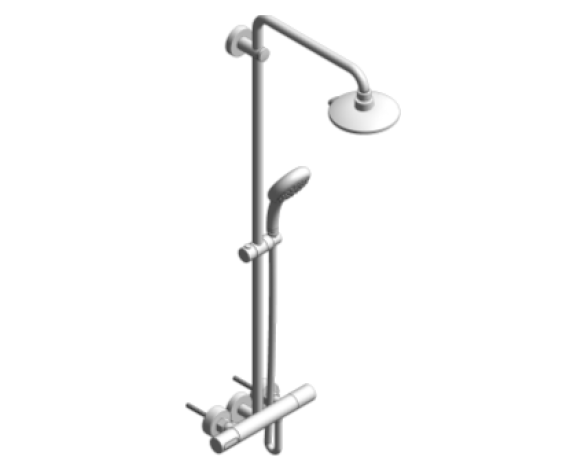

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

Object Data

1 Revision

Last Updated

09/09/2015

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_authorized byConnor Laing
_BIMspec_GUID0
_created bybimstore
_current revision2
_distributed bywww.bimstore.co.uk
ADA CompliantYes
Assembly CodeC1030220
Asset TypeFixed
Classification NameUniclass2015
Classification ValuePr_40_20_87_78
ColorChrome
Connection Diameter10 mm
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnJuly 13 - Revised Aug 15
CW ConnectionNo
CWFU4.5
Default Elevation600 mm
DescriptionFor a sharp, tailored look in your bathroom choose Eurocube. Here is a design so cleverly engineered that we are able to offer an extensive choice featuring true square design for the basin, bidet, shower and bath. Across the range, cut-out detailing on the lever handles reduces the perceived volume of each piece, while highlighting the minimalist appeal of the collection. Perfectly aligned to the design needs of today’s cosmopolitan consumers, Eurocube offers cutting-edge, geometric styling at an unbeatable price. At the same time it benefits from two leading GROHE technologies: GROHE SilkMove® – for smooth and comfortable operation of single lever mixers and GROHE StarLight® – our resilient chrome finish.
Documentation Certificateswww.grohe.com/ke/10122/shower/shower-systems/powersoul-systems/product-details/?product=27909-G373&color=000&material=27909000
Documentation Installation Guidecdn08.grohe.com/lib/1/tpi/1711030.pdf
Documentation Literaturecdn08.grohe.com/lib/1/tpi/1948997.pdf
Documentation Maintenancecdn08.grohe.com/lib/1/tpi/1734224.pdf
Documentation Technicalcdn08.grohe.com/lib/1/tpi/1905347.pdf
Duration UnitYears
EcojoyNo
Expected Life0
Faucet MaterialGrohe-Chrome
FinishChrome
Flow Pressuremin 1 bar/recommended 1-5bar
Flow Rate5.4L/min
Height139 mm
HW ConnectionNo
HWFU4.5
Industry StandardsN/A
KeynoteN13
Length112 mm
Low Emitting MaterialYes
ManufacturerGrohe AG
MaterialChrome
Mixed Water Radius5 mm
ModelPower&Soul Shower 27 909 000
Model Number27909000
NamePower&Soul Shower 27 909 000
NBS DescriptionShower mixers
NBS Object NameShower manual water supply sets
NBS Reference45-35-70/335
Operating Pressuremax 10 bar
Percentage of Recycled Content0
Product Documentation Linkcdn08.grohe.com/lib/1/tpi/1905347.pdf
Product Page URLwww.grohe.com/ke/10122/shower/shower-systems/powersoul-systems/product-details/?product=27909-G373&color=000&material=27909000
Production Year2015
Spare Parts Listwww.grohe.com/uk/5410/showers/shower-panels/tempesta-systems/product-details/?product=27922-G361&color=000&%7E%5Bajax%5D=2586
Temp - Hot Water Supplymax 80 deg C
Temp - Hot Water Supply (Recommended)60 deg C
Test Pressure3 bar
Type CommentsShower system with thermostat for wall mounting horizontal swivable 390 mm projection shower arm exposed thermostatic shower with Aquadimmer function
Type NameShower system with thermostat for wall mounting horizontal swivable 390 mm projection shower arm exposed thermostatic shower with Aquadimmer function
URLwww.grohe.com
Vent ConnectionNo
Warranty InfomationN/A
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
Width34 mm
