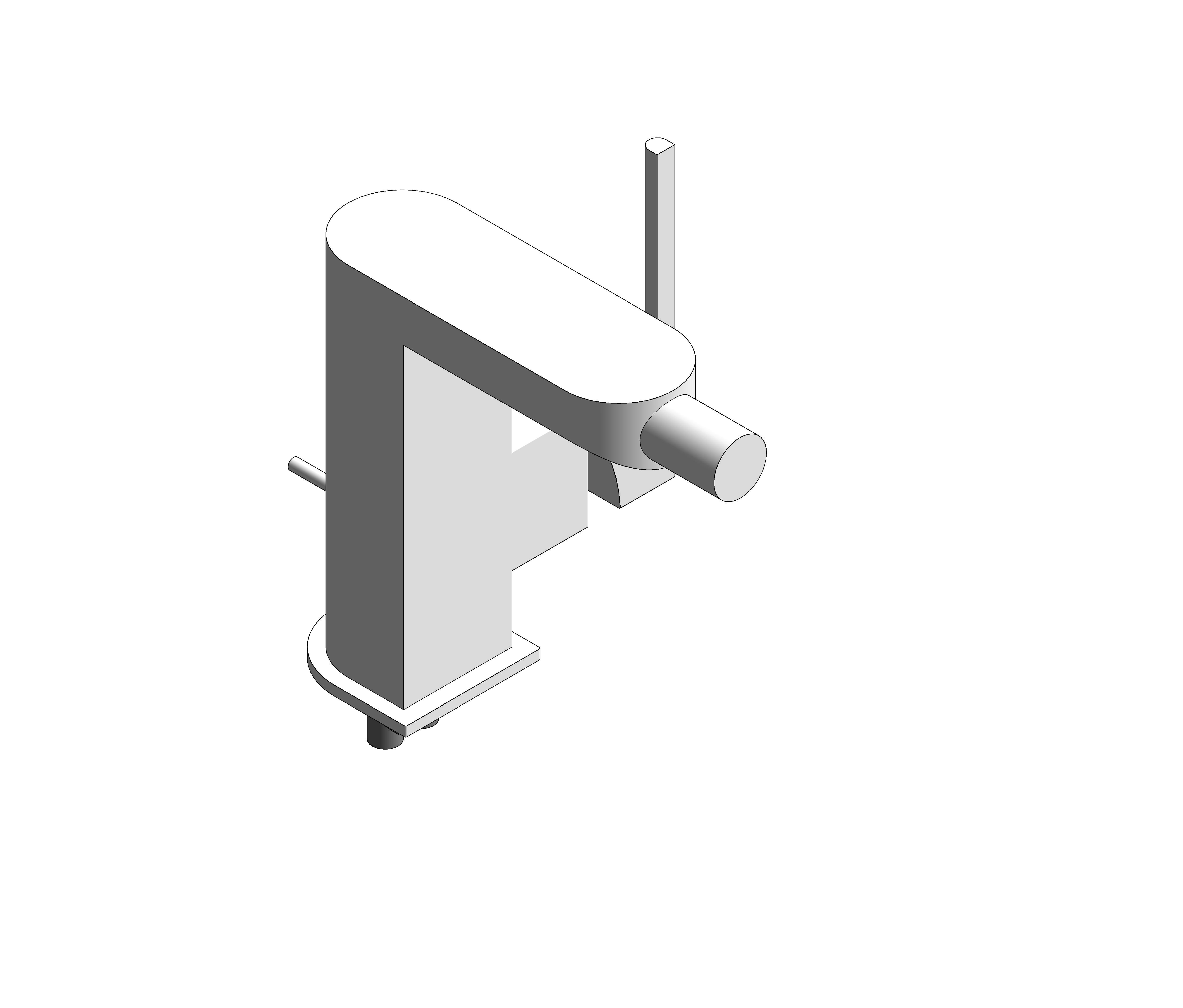

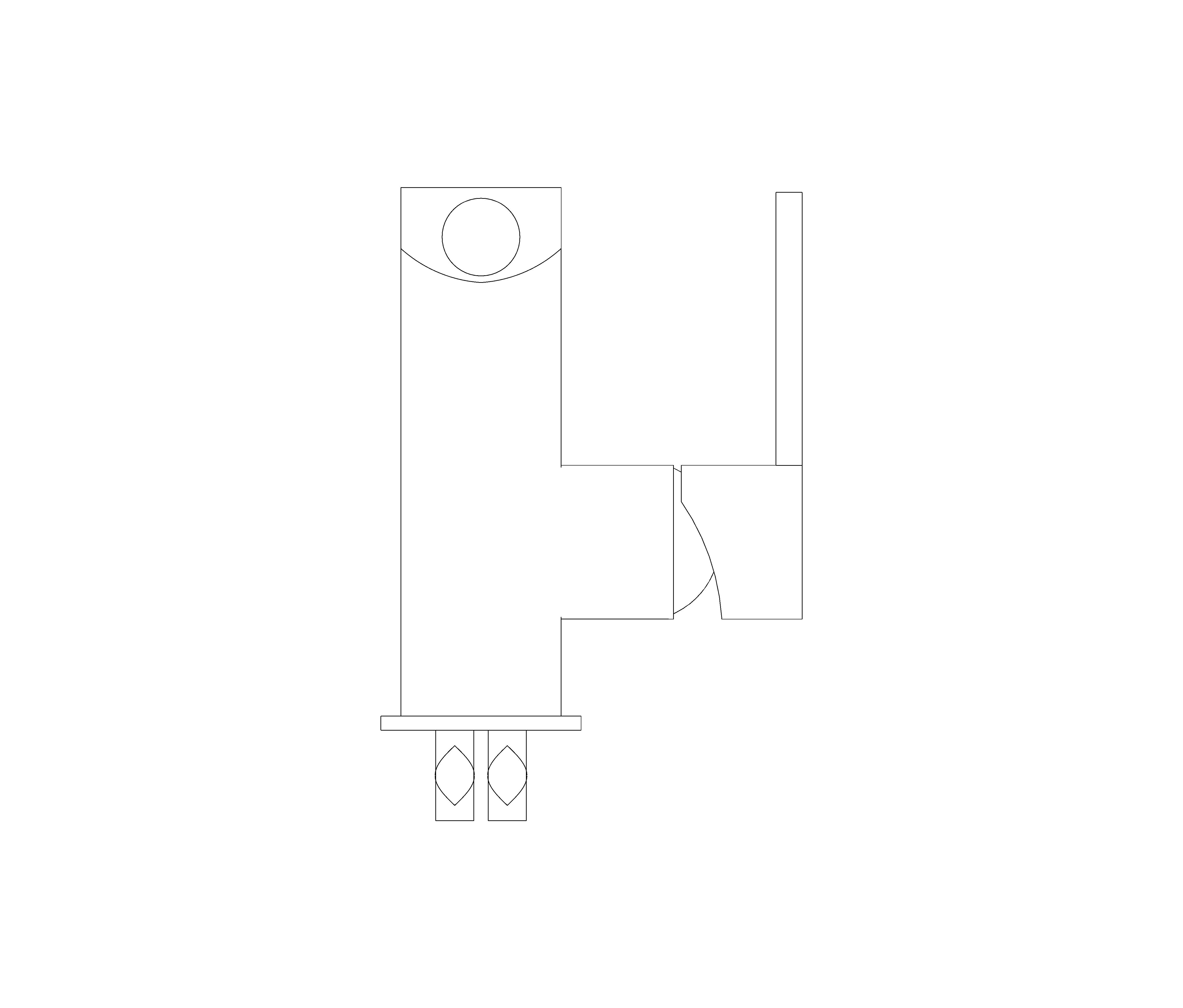

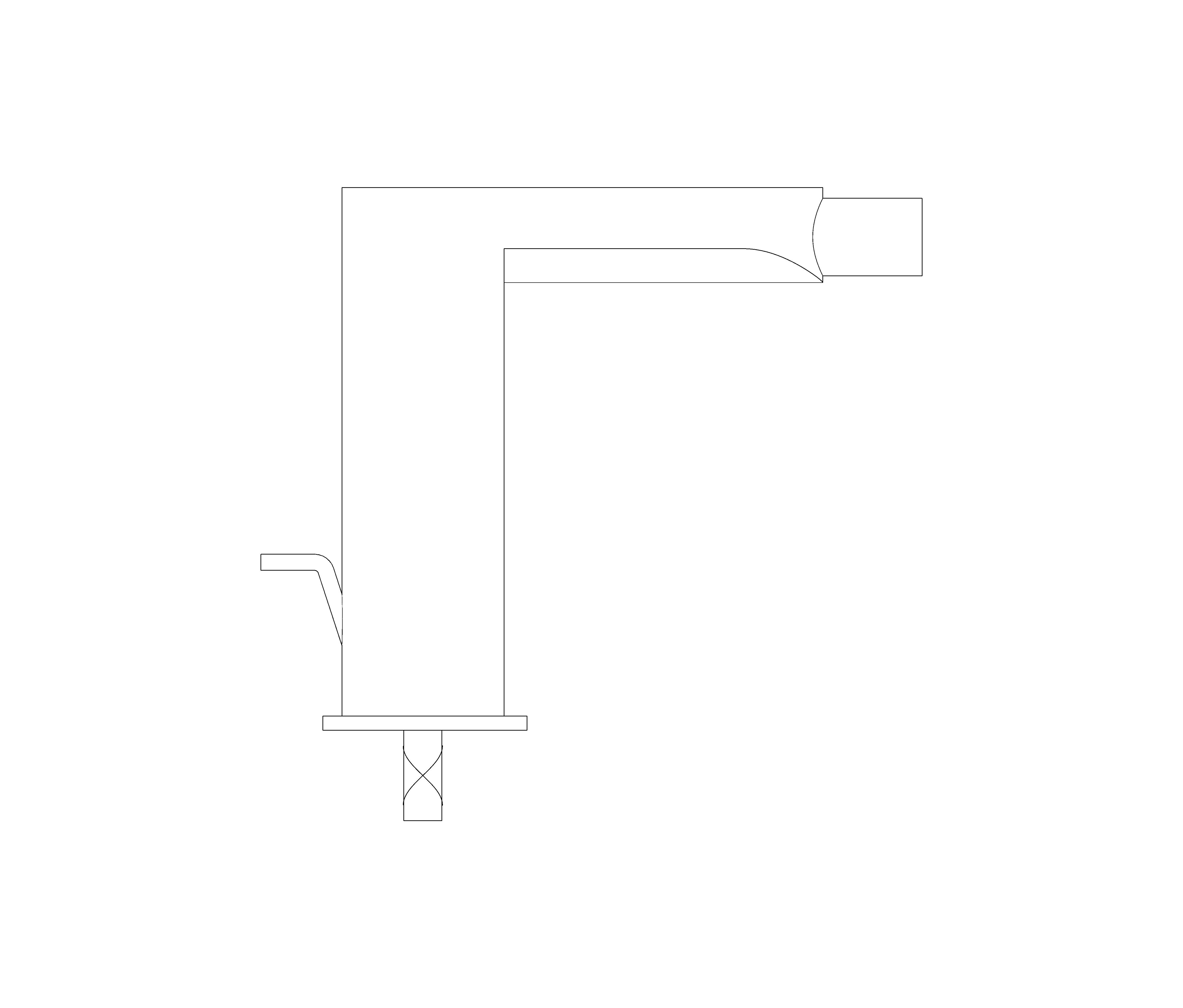

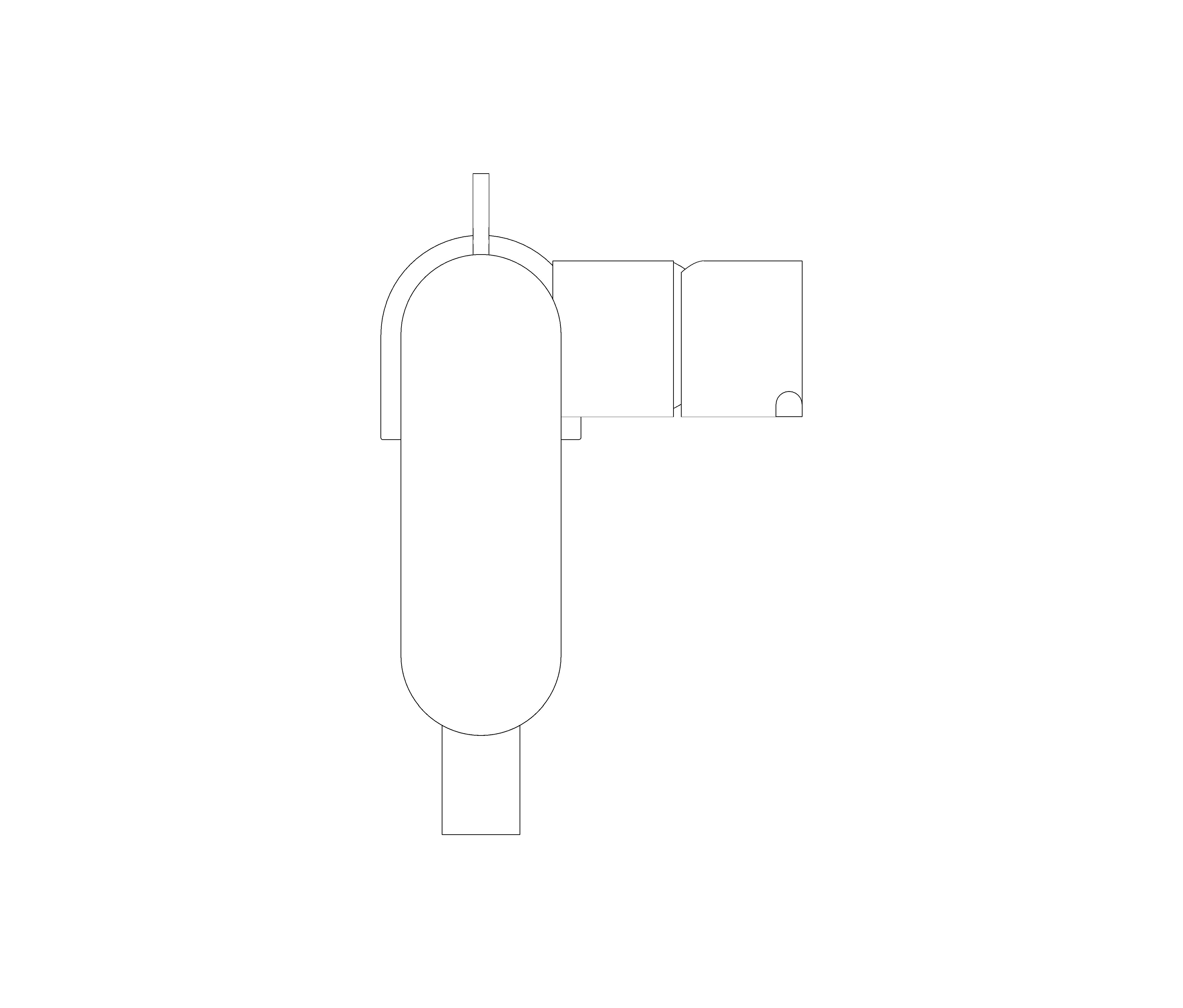

Grohe Plus Single-Lever Bidet Mixer 1/2“ - 33241003

by GROHE

Download Add to collection

Description

single hole installation
metal lever
GROHE SilkMove 28 mm ceramic cartridge
with temperature limiter
GROHE StarLight chrome finish
rapid installation system
ball-joint mousseur
pop-up waste set 1 1/4“
flexible connection hoses
min. recommended pressure 1.0 bar

Also includes 33241DC3 (SuperSteel) and 33241AL3 (Brushed Hard Graphite).

Object Data

3 Revision

Last Updated

07/05/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_AuthorJack Yellop
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
Accessibility Performancen/a
Assembly CodeC1030
Asset TypeFixed
BIM Object NameGrohe_PlumbingFixtures_PlusSingle-LeverBidetMixer_33241003
Classification NameUniclass2015
Classification ValuePr_40_20_87_96
Code Performancen/a
ColorSilver
Constituentsn/a
Created Byinfo-uk@grohe.com
Created On2019-04-29T09:00:00
CW ConnectionYes
CWFU4.5
Default Elevation0 mm
Descriptionsingle hole installation, metal lever, GROHE SilkMove 28 mm ceramic cartridge with temperature limiter, GROHE StarLight chrome finish, rapid installation system, ball-joint, mousseur, pop-up waste set 1 1/4“, flexible connection hoses, min. recommended pressure 1.0 bar
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturen/a
Documentation Maintenancen/a
Documentation Technicaln/a
Duration UnitYears
Expected Life0
Featuressingle hole installation, metal lever, GROHE SilkMove 28 mm ceramic cartridge with temperature limiter, GROHE StarLight chrome finish, rapid installation system, ball-joint, mousseur, pop-up waste set 1 1/4“, flexible connection hoses, min. recommended pressure 1.0 bar
FinishChrome
Graden/a
HW ConnectionYes
HWFU4.5
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
KeynoteN13
ManufacturerGrohe
Manufacturer NameGrohe
MaterialChrome
ModelPlus Single-lever bidet mixer 1/2"
Model Number33241003
Model ReferencePlus Single-lever bidet mixer 1/2"
NBS DescriptionWater supply fittings for wash basins and troughs
NBS Object NameGrohe - Water supply fittings for wash basins and troughs
NBS Office Master Tagn/a
NBS Reference45-35-70/371
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Primary FinishGrohe- Chrome
Production Year2019
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsn/a
Type Comments33241003
Type NamePlus Single-lever bidet mixer 1/2"
URLwww.grohe.co.uk/en_gb/
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsinfo-uk@grohe.com
Waste ConnectionNo
