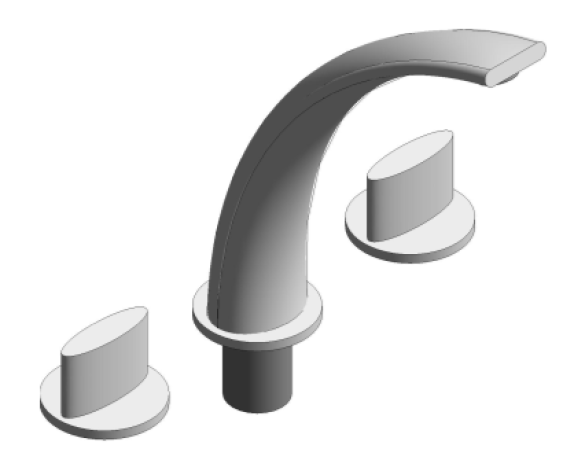

Grohe Ondus - 20178000

Description

ceramic headparts 1/2" - 90°integrated mousseurPush-open waste set 1 1/4"pressure-proof, flexible connection hoses between spout and side valvesclick escutcheonflow limiter 14 l/min.min. recommended pressure 1.0 bar

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

Object Data

1 Revision

Last Updated

16/02/2016

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_BIMspec_GUID0
_created byJoe Shaw
_current revision1
_distributed bywww.bimstore.co.uk
ADA CompliantNo
Assembly CodeC1030220
Asset TypeFixed
Classification NameUniclass2015
Classification ValuePr_40_20_87_98
Cold Water Connection Diameter10 mm
Cold Water Radius5 mm
ColorChrome
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnDecember 15
CW ConnectionYes
CWFU4.5
Default Elevation600 mm
DescriptionGROHE Ondus 3-hole basin mixer S-Size
Documentation Installation Guidespecifi.bimstore.co.uk/document/share/1217
Documentation Maintenancespecifi.bimstore.co.uk/document/share/1197
Documentation Technicalspecifi.bimstore.co.uk/document/share/1217
Duration UnitYears
EcojoyYes
Expected Life0
FinishChrome
Flow Rate6L/min
Hot Water Connection Diameter10 mm
Hot Water Radius5 mm
HW ConnectionYes
HWFU4.5
Industry StandardsN/A
KeynoteN13
Low Emitting MaterialYes
ManufacturerGrohe AG
MaterialChrome
Material 2Grohe-Chrome
ModelGrohe Ondus 3-hole basin mixer - 20178000
Model Number20417 IG0
NameGrohe Ondus 3-hole basin mixer - 20178000
NBS DescriptionWater supply fittings for wash basins and troughs
NBS Object NameWashbasin taps
NBS Reference45-35-70/371
Operating Pressure1 bar
Percentage of Recycled Content0
Product Documentation Linkwww.grohe.co.uk/en_gb/grohe-ondus-3-hole-basin-mixer-s-size-20178000.html
Product Page URLwww.grohe.co.uk/en_gb/grohe-ondus-3-hole-basin-mixer-s-size-20178000.html
Production Year2015
Tap Width40 mm
Type Comments3-hole basin mixer
Type Name3-hole basin mixer
URLwww.grohe.com
Valve Spacing34 mm
Vent ConnectionNo
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
Width200 mm
