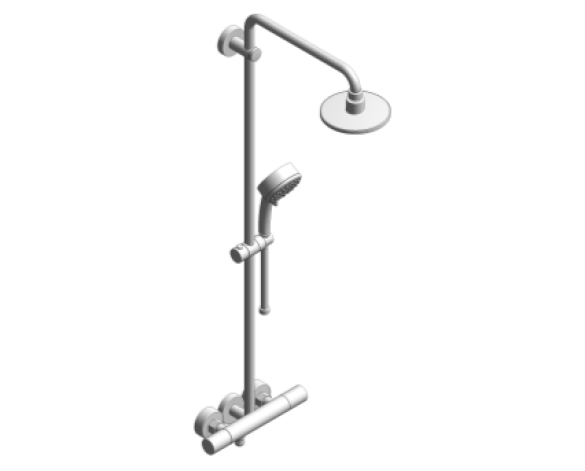

Grohe New Tempesta Cosmopolitan 160 Shower System with Thermostat - 27922000

5.3k
0
- / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

09/09/2015

Download BIM

Add to collection

Available for:

New Tempesta Cosmopolitan 160Shower system with thermostat for wall mountinghorizontal swivable 390 mm projection shower armexposed thermostatic showerwith Aquadimmer functionallows change between:Rainwith ball jointrotation angle ± 15°2 spray patterns:Rain, Jetadjustable in height with gliding element Silverflex shower hose 1750 mm (28 388 000)GROHE TurboStat® compact cartridgewith wax thermoelementGROHE DreamSpray® perfect spray pattern GROHE StarLight® chrome finishSpeedClean anti-limescale systemInner WaterGuide for a longer lifeTwistfree to prevent hose from twistingmin. recommended pressure 1.0 bar

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

_authorized byConnor Laing
_BIMspec_GUID0
_created bybimstore
_current revision2
_distributed bywww.bimstore.co.uk
ADA CompliantYes
Assembly CodeC1030220
Asset TypeFixed
Barcode0
Connection Diameter10 mm
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
CW ConnectionNo
CWFU4.5
Default Elevation600 mm
DescriptionFor a sharp, tailored look in your bathroom choose Eurocube. Here is a design so cleverly engineered that we are able to offer an extensive choice featuring true square design for the basin, bidet, shower and bath. Across the range, cut-out detailing on the lever handles reduces the perceived volume of each piece, while highlighting the minimalist appeal of the collection. Perfectly aligned to the design needs of today’s cosmopolitan consumers, Eurocube offers cutting-edge, geometric styling at an unbeatable price. At the same time it benefits from two leading GROHE technologies: GROHE SilkMove® – for smooth and comfortable operation of single lever mixers and GROHE StarLight® – our resilient chrome finish.
EcojoyNo
Expected Life0
Faucet MaterialGrohe-Chrome
Flow Pressuremin 1 bar/recommended 1-5bar
Flow Rate5.4L/min
Height139 mm
HW ConnectionNo
HWFU4.5
Industry StandardsN/A
KeynoteN13
Length112 mm
Low Emitting MaterialYes
Maintenance Informationcdn08.grohe.com/lib/1/tpi/1734224.pdf
ManufacturerGrohe AG
Mixed Water Radius5 mm
ModelTempesta Cosmopolitan System 27922000
Model NumberTempesta Cosmopolitan System 27922000
NameTempesta Cosmopolitan System 27922000
NBS DescriptionShower fittings package
NBS Object NameShower fittings package
NBS Reference45-35-70/330
Operating Pressuremax 10 bar
Percentage of Recycled Content0
Product Documentation Linkcdn08.grohe.com/lib/1/tpi/1753340.pdf
Product Page URLwww.grohe.com/uk/5410/showers/shower-panels/tempesta-systems/product-details/?product=27922-G361&color=000
Serial Number0
Spare Parts Listwww.grohe.com/uk/5410/showers/shower-panels/tempesta-systems/product-details/?product=27922-G361&color=000&%7E%5Bajax%5D=2586
Tag Number0
Temp - Hot Water Supplymax 80 deg C
Temp - Hot Water Supply (Recommended)60 deg C
Test Pressure3 bar
Type CommentsShower system with thermostat for wall mounting horizontal swivable 390 mm projection shower arm exposed thermostatic shower with Aquadimmer function
URLwww.grohe.com
Vent ConnectionNo
Warranty InfomationN/A
Waste ConnectionNo
WFU0
Width34 mm
