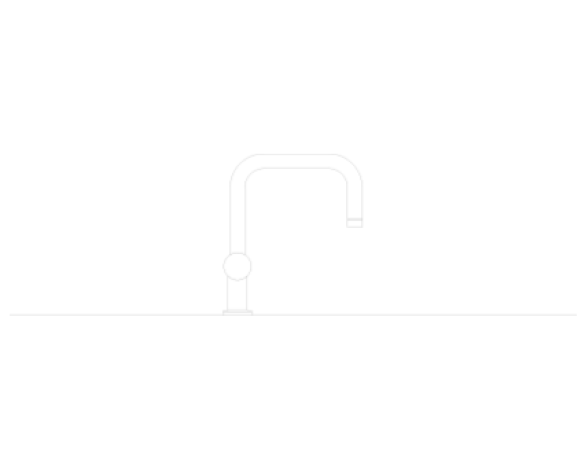

Grohe Minta Sink Mixer - 32488000

Description

MintaSink mixer 1/2"monobloc installationGROHE SilkMove® 46 mm ceramic cartridge adjustable flow rate limiter U spout, swivelling mousseur flexible connection hoses rapid installation system optional temperature limiter ref. no. 46 308 000min. recommended pressure 1.0 bar

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

Object Data

1 Revision

Last Updated

17/02/2016

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_BIMspec_GUID0
_created byJoe Shaw
_created dateDecember 2015
_current revision1
_distributed bywww.bimstore.co.uk
ADA CompliantYes
Assembly CodeC1030220
Asset TypeFixed
Barcode0
Classification NameUniclass 2015
Classification ValuePr_40_20_87_98
Cold Water Conection Diamiter10 mm
Cold Water Radius5 mm
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Control HandleYes
Control Handle CenterYes
Created Byinfo-uk@grohe.com
Created OnDecember 2015
CW ConnectionYes
CWFU4.5
Default Elevation600 mm
DescriptionMinta Sink Mixer 1/2"
Documentation Installation Guidespecifi.bimstore.co.uk/document/share/1222
Documentation Maintenancespecifi.bimstore.co.uk/document/share/1197
Documentation Technicalspecifi.bimstore.co.uk/document/share/1222
Duration UnitYears
EcojoyNo
Expected Life0
Faucet MaterialGrohe-Chrome
Flow Rate9L/min
Height384 mm
Hot Water Conection Diamiter10 mm
Hot Water Radius5 mm
HW ConnectionYes
HWFU4.5
Industry StandardsN/A
KeynoteN13
Length218 mm
Low Emitting MaterialYes
ManufacturerGrohe AG
Mixing LeaverYes
ModelMinta Sink Mixer 1/2"
NameMinta Sink Mixer 1/2"
NBS Object NameWater supply fittings for wash basins and troughs
NBS Reference45-35-70/371
No of Holes1
Operating Pressure3 bar
Percentage of Recycled Content0
Pull out or Pull DownPull Out
Serial Number0
Tag Number0
Tap Overhang223 mm
Type CommentsMinta Sink Mixer 1/2"
Type NameMinta Sink Mixer 1/2"
URLwww.grohe.com
Valve Spacing34 mm
Vent ConnectionNo
Warranty InfomationN/A
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
Width167 mm
