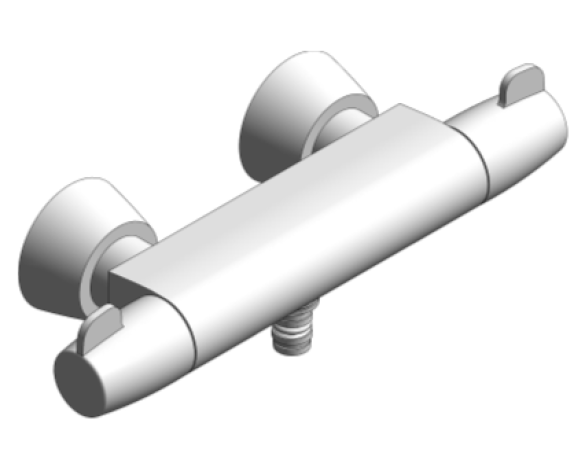

GROHTHERM SPECIAL Thermostat basin mixer 1/2″ (34666000)

Description

wall mountedergonomic metal wing handlesceramic headparts 1/2“, 90°GROHE TurboStat compact cartridge with wax thermoelementtemperature scale handle with internal safety stop between 35°C and 43°Ceasy thermal disinfection via optional key 47 994 000integrated mixed water shut offbottom outlet for spouts 13 378 or 13 380metal temperature safety stopdirt strainerswith S-unions and with coversGROHE Quickfix for fast exchange of non return valves in connectionsGROHE CoolTouch safety housingGROHE StarLight chrome finishGROHE SafetyPlus fixed temperature stop

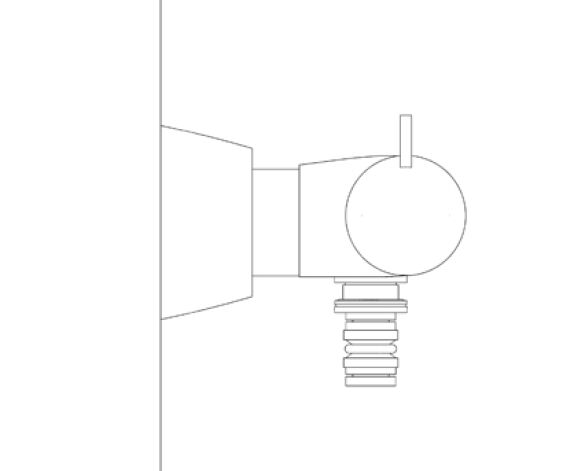

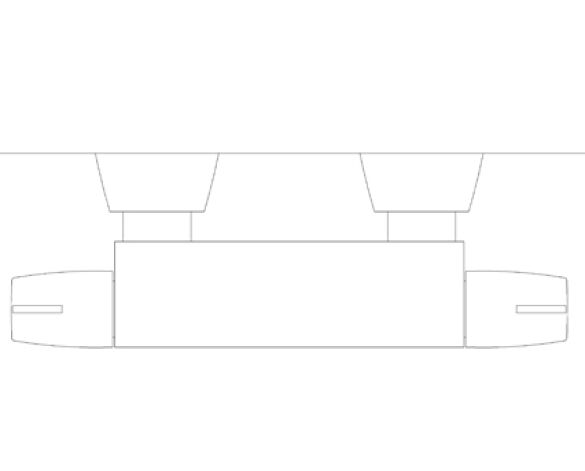

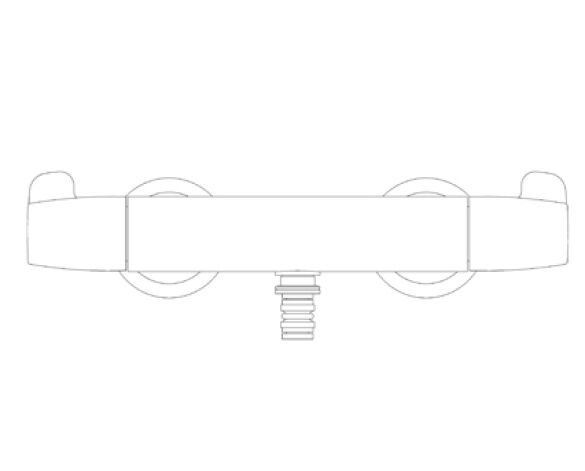

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

Object Data

1 Revision

Last Updated

22/03/2017

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_authorized byKris Atkinson
_BIMspec_GUID0
_created byRyan Lashley
_current revision1
_distributed bywww.bimstore.co.uk
ADA CompliantNo
Assembly CodeC1030220
Asset TypeFixed
Classification NameUniclass 2015
Classification ValuePr_40_20_87_96
Cold Water Connection Diameter10 mm
ColorChrome
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnFebruary 2017
CW ConnectionYes
CWFU4.5
Default Elevation600 mm
Descriptionwall mounted. ergonomic metal wing handles. ceramic headparts 1/2“, 90°. GROHE TurboStat compact cartridge with wax thermoelement. temperature scale handle with internal safety stop between 35°C and 43°C. easy thermal disinfection via optional key 47 994 000. integrated mixed water shut off. bottom outlet for spouts 13 378 or 13 380. metal temperature safety stop. dirt strainers. with S-unions and with covers. GROHE Quickfix for fast exchange of non return valves in connections. GROHE CoolTouch safety housing. GROHE StarLight chrome finish. GROHE SafetyPlus fixed temperature stop
Duration UnitYears
EcojoyYes
Expected Life0
Faucet MaterialGrohe-Chrome
Featureswall mounted. ergonomic metal wing handles. ceramic headparts 1/2“, 90°. GROHE TurboStat compact cartridge with wax thermoelement. temperature scale handle with internal safety stop between 35°C and 43°C. easy thermal disinfection via optional key 47 994 000. integrated mixed water shut off. bottom outlet for spouts 13 378 or 13 380. metal temperature safety stop. dirt strainers. with S-unions and with covers. GROHE Quickfix for fast exchange of non return valves in connections. GROHE CoolTouch safety housing. GROHE StarLight chrome finish. GROHE SafetyPlus fixed temperature stop
FinishChrome
Hot Water Connection Diameter10 mm
HW ConnectionYes
HWFU4.5
Industry Standardsn/a
KeynoteN13
Low Emitting MaterialNo
ManufacturerGrohe Limited
Masterformat Number01 52 19
Masterformat TitleSanitary Facilities
MaterialChrome
ModelGrohtherm Special - Thermostatic basin mixer
Model NumberGrohtherm Special - 34666000
NBS DescriptionWater supply fittings for wash basins and troughs;
NBS Object NameWater supply fittings for wash basins and troughs;
NBS Reference45-35-70/371
Production Year2016
Type CommentsGrohtherm Special - 34666000
Type NameGrohtherm Special - Thermostatic basin mixer
URLwww.grohe.com
Vent ConnectionNo
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
