Grohe Grohtherm Ergomix Thermostatic basin mixer 1/2" - 34018000

2.9k
0
- / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

31/10/2016

Download BIM

Add to collection

Available for:

for elbow lever actionwall mountedmetal lever 250 mmswivel area 100°metal stopceramic headpart 1/2"wax thermoelementtemperature scale handle with pre-adjustable safety stop between 35°C and 45°Carrangement to make the thermal disinfection easierswivel cast spoutlaminar flow straightener 9 l/min.lockable stop ringbuilt-in non return valvesdirt strainersprojection 238 mmcovered S-unionsGROHE StarLight® chrome finish

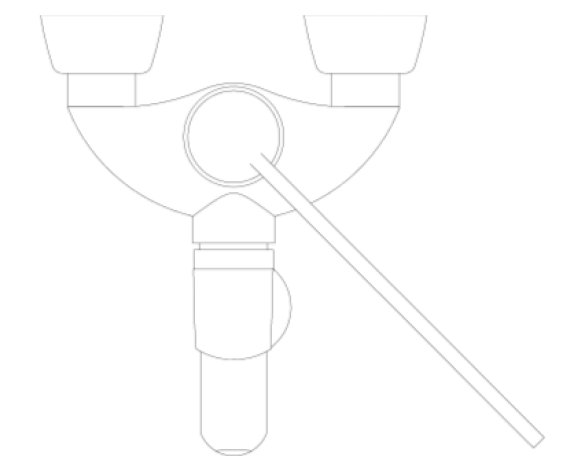

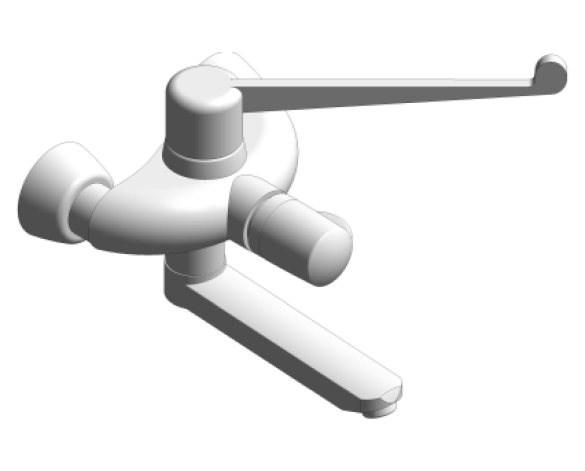

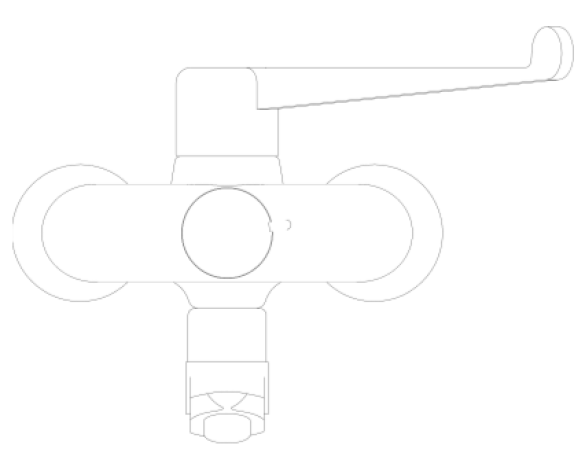

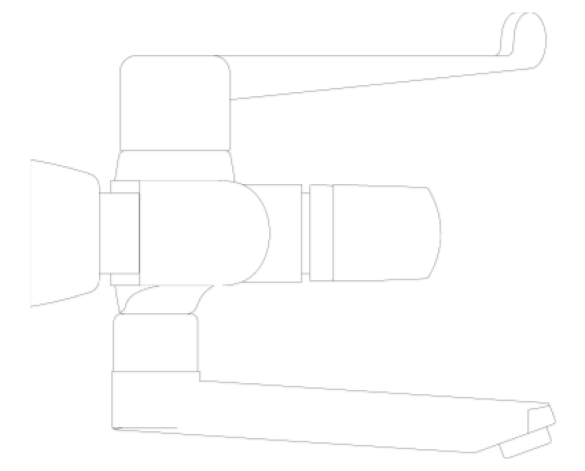

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

_authorized byKris Atkinson
_BIMspec_GUID0
_created byRyan Lashley
_current revision1
_distributed bywww.bimstore.co.uk
Accessibility Performancen/a
Assembly CodeC1030220
Asset TypeFixed
Classification NameUniclass2015
Classification ValuePr_40_20_87_98
Code Performancen/a
ColorChrome
Constituentsn/a
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnFeburary 2016
CW ConnectionNo
CWFU4.5
Default Elevation0 mm
Descriptionfor elbow lever action, wall mounted, metal lever 250 mm, swivel area 100°, metal stop, ceramic headpart 1/2, wax thermoelement, temperature scale handle with, pre-adjustable safety stop between, 35°C and 45°C, arrangement to make the thermal, disinfection easier, swivel cast spout, laminar flow straightener 9 l/min, lockable stop ring, built-in non return valves, dirt strainers, projection 238 mm, covered S-unions, GROHE StarLight® chrome finish.
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturen/a
Documentation Technicalcdn.cloud.grohe.com/tpi/1000/1900/1920/1929/1929346/original/1929346.pdf
Duration UnitYears
EcojoyNo
Expected Life0
Extidentifiern/a
Faucet MaterialGrohe-Chrome
Featuresfor elbow lever action, wall mounted, metal lever 250 mm, swivel area 100°, metal stop, ceramic headpart 1/2, wax thermoelement, temperature scale handle with, pre-adjustable safety stop between, 35°C and 45°C, arrangement to make the thermal, disinfection easier, swivel cast spout, laminar flow straightener 9 l/min, lockable stop ring, built-in non return valves, dirt strainers, projection 238 mm, covered S-unions, GROHE StarLight® chrome finish.
FinishChrome
Graden/a
HW ConnectionNo
HWFU4.5
Industry Standardsn/a
KeynoteN13
ManufacturerGrohe
MaterialChrome
ModelGrohtherm Ergomix Thermostatic basin mixer 1/2
Model Number34018000
NBS DescriptionWater supply fittings for wash basins and troughs;
NBS Object NameWater supply fittings for wash basins and troughs;
NBS Reference45-35-70/371
Product Documentation Linkcdn.cloud.grohe.com/tpi/1000/1900/1920/1929/1929346/original/1929346.pdf
Product Page URLwww.grohe.com/is/31434/project-business/special-faucets/thermostats/grohtherm-ergomix/produktdetails/?product=34018-G071&color=000&material=34018000
Production Year2016
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsn/a
Tag Numbern/a
Type CommentsThermostatic basin mixer 1/2
Type NameGrohtherm Ergomix Thermostatic basin mixer 1/2
URLwww.grohe.com
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsn/a
Waste ConnectionNo
WFU0
