Grohe Grohtherm 1000 Thermostat Shower Mixer - 34152001

3.7k
0
- / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

09/09/2015

Download BIM

Add to collection

Available for:

Grohtherm 1000Thermostat shower mixerconsists of: Grohtherm 1000 thermostatic shower mixer 1/2" (34 146) without connection unions New Tempesta shower set II, 600 mm (27 598 000) optional 9.5 l/min flow regulating valveGROHE EcoJoy™ Technology for less water and perfect flowGROHE CoolTouch®GROHE DreamSpray® perfect spray pattern GROHE StarLight® chrome finishSpeedClean anti-lime system ShockProof silicone ring prevents damages caused by shower falling minimum pressure 1,0 bar

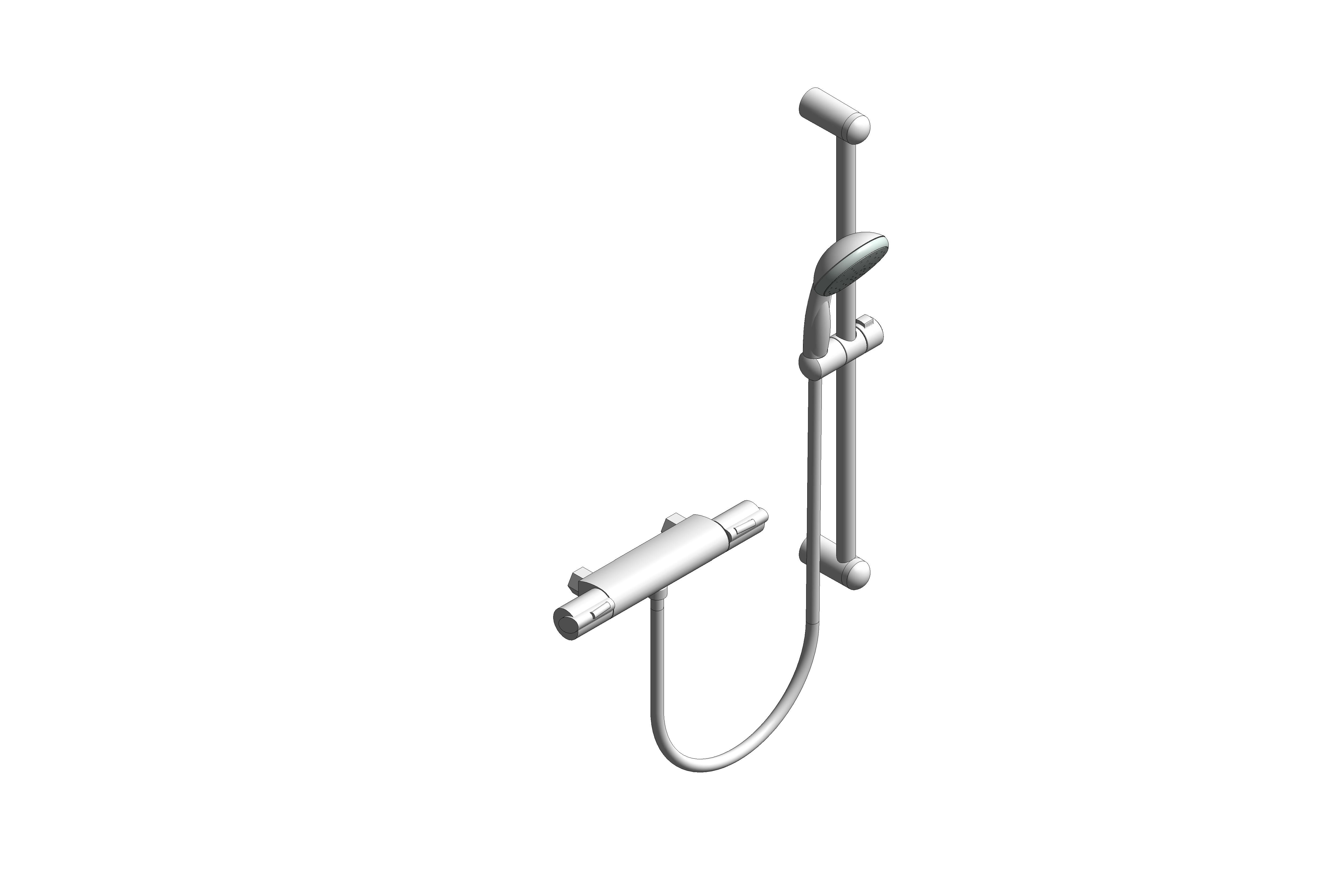

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

_authorized byConnor Laing
_BIMspec_GUID0
_created bybimstore
_current revision2
_distributed bywww.bimstore.co.uk
ADA CompliantYes
Assembly CodeD2010710
Asset TypeFixed
Classification NameUniclass2015
Classification ValuePr_40_20_87_78
Cold Water Connection Diameter10 mm
Cold Water Radius5 mm
ColorChrome
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnJuly 13 - Revised Aug 2015
CW ConnectionYes
CWFU4.5
Default Elevation600 mm
DescriptionThe Grohtherm 1000 thermostatic shower mixer allows you to experience the benefits of a thermostatically controlled shower at an attractive price. Finished in sparkling GROHE StarLight® chrome, Grohtherm 1000 benefits from GROHE TurboStat® technology, which ensures luxurious showering at a constant temperature – regardless of any changes in the water supply. A SafeStop button, set at 38ºC, prevents children from turning up the temperature, while the EcoButton allows you to reduce water usage by up to 50%
Documentation Certificatescdn08.grohe.com/lib/1/tpi/1700343.pdf
Documentation Installation Guidewww.grohe.co.uk/pim/profile/1000000/000000/20000/3000/200/121897.pdf
Documentation Literaturewww.grohe.co.uk/pim/profile/1000000/000000/20000/3000/200/121100.pdf
Documentation Maintenancecdn08.grohe.com/lib/1/tpi/1769293.pdf
Documentation Technicalwww.grohe.co.uk/en_gb/grohtherm-1000-concealed-shower-system-34162001.html
Duration UnitYears
EcojoyYes
Expected Life0
FinishChrome
Flow Pressuremin 0.5 bar/recommended 1 - 5 bar
Flow Rate26 L/min
Height0 mm
Hot Water Connection Diameter10 mm
Hot Water Radius5 mm
HW ConnectionYes
HWFU4.5
Industry StandardsN/A
KeynoteN13
Length0 mm
Low Emitting MaterialYes
ManufacturerGrohe AG
MaterialChrome
Material HeadGrohe-Shower head
Mixing LeaverYes
ModelGrohtherm 1000+ 34152 001
Model Number34152001
NameGrohtherm 1000+ 34152 001
NBS DescriptionShower mixers
NBS Object NameShower manual water supply sets
NBS Reference45-35-70/335
Operating Pressuremax 10 bar
Percentage of Recycled Content0
Product Documentation Linkcdn08.grohe.com/lib/1/tpi/1700343.pdf
Product Documentation Link 2cdn08.grohe.com/lib/1/tpi/1055866.pdf
Product Documentation Link 3cdn08.grohe.com/lib/1/tpi/1707349.pdf
Product Page URLwww.grohe.co.uk/en_gb/grohtherm-1000-concealed-shower-system-34162001.html
Production Year2015
Spare Parts Listwww.grohe.com/nl/3673/badkamer/thermostaatkranen/grohtherm-1000/product-details/?product=34152-G126&color=001
Temp - Hot Water Supplymax 80°C
Temp - Hot Water Supply (Recommended)60°C
Test Pressure16 bar
Type CommentsThermostatic shower mixer + shower set
Type NameThermostatic shower mixer + shower set
URLwww.grohe.com
Vent ConnectionNo
Warranty InfomationN/A
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
Width0 mm
