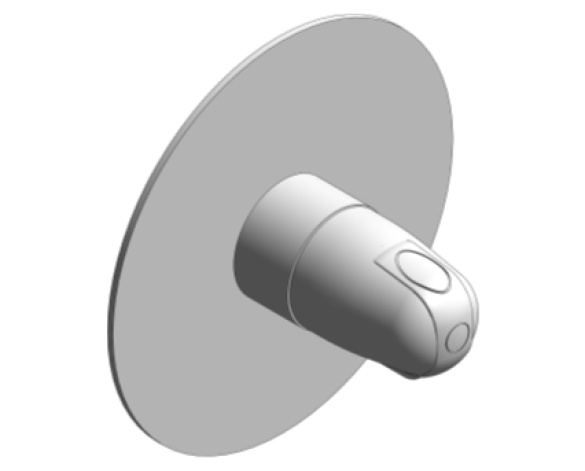

Grohe Grohtherm 1000 New Trim for Thermostatic Shower Valve - 19983000

3.6k
0
- / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

02/09/2015

Download BIM

Add to collection

Available for:

Grohtherm 1000 NewTrim for thermostatic shower valveset for final installation forcentral thermostat concealed body (34 241 000)without concealed bodyGROHE StarLight® chrome finishGROHE MetalGrip ergonomically shaped metal handlesGROHE SafeStop safety button at 38°CGROHE SafeStop Plus integrated temperature limiter at max 50°C wall escutcheon with GROHE QuickFix®(covered escutcheon- and shaft sealing, covered fixing)min recommended pressure 1.0 bar

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

_BIMspec_GUID0
_created byConnor Laing
_current revision2
_distributed bywww.bimstore.co.uk
ADA CompliantNo
Assembly CodeC1030220
Asset TypeFixed
Classification NameUniclass 2015
Classification ValuePr_40_20_87_96
ColorChrome
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnMarch 2015
CW ConnectionYes
CWFU0
Default Elevation600 mm
DescriptionThermostatic mixer
Documentation Certificateswww.grohe.com/30898/search/search-result/product-details/?product=19983-G413&color=000&material=19983000
Documentation Installation Guidecdn08.grohe.com/lib/1/tpi/1842556.pdf
Documentation Literaturewww.grohe.com/30898/search/search-result/product-details/?product=19983-G413&color=000&material=19983000
Documentation Technicalcdn08.grohe.com/lib/1/tpi/1842556.pdf
Duration UnitYears
EcojoyYes
Expected Life0
Faucet MaterialGrohe-Chrome
Height81 mm
HW ConnectionYes
HWFU0
Industry StandardsN/A
KeynoteN13
Low Emitting MaterialNo
ManufacturerGrohe
MaterialChrome
Mixing LeaverYes
ModelGrohtherm_1000_Thermostatic_shower-mixer
Model Number19983000
NameGrohtherm_1000_Thermostatic_shower-mixer
NBS Object NameWater supply fittings for wash basins and troughs
NBS Reference45-35-70/371
Type CommentsThermostatic mixer
Type NameGrohtherm_1000_Thermostatic_shower-mixer
URLwww.grohe.com
Vent ConnectionNo
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
Width181 mm
