Grohe Grandera Single-Lever Shower Mixer Trim - 19932000

Description

GranderaSingle-lever shower mixer trimwithout concealed bodyset for final installation for35 501 000GROHE StarLight® chrome finishescutcheon- and shaft-sealingmetal escutcheoncovered fixingmin. recommended pressure 1.0 bar

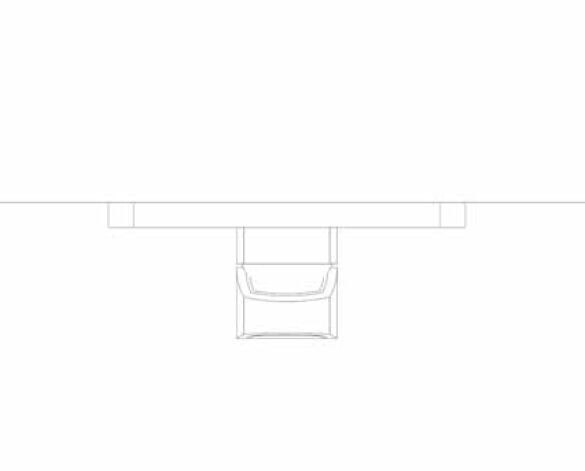

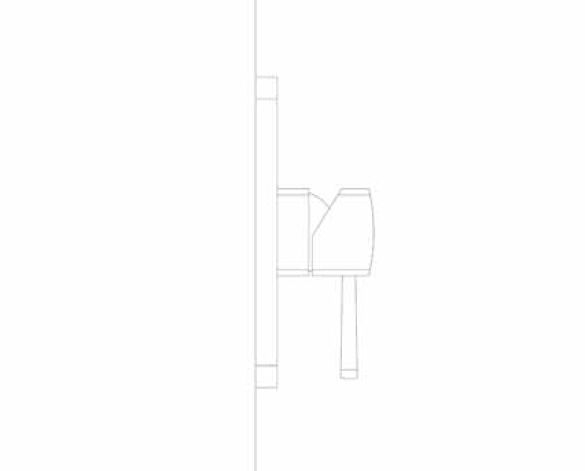

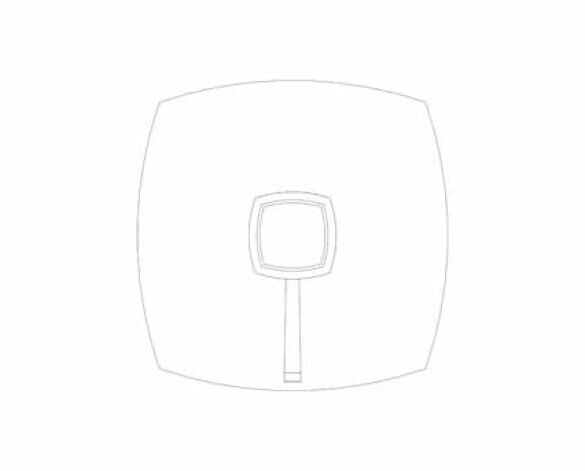

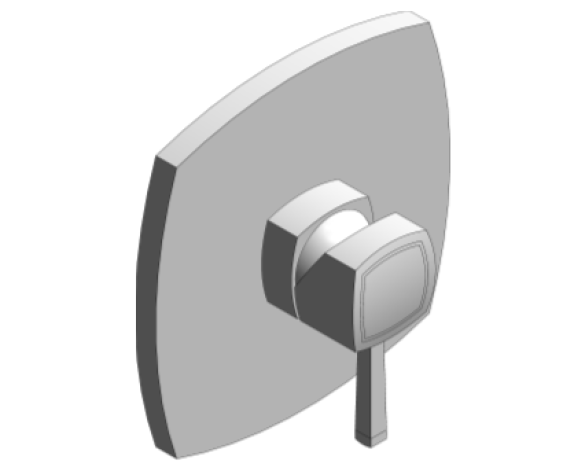

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

Object Data

1 Revision

Last Updated

09/09/2015

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_authorized byConnor Laing
_BIMspec_GUID0
_created bybimstore
_current revision2
_distributed bywww.bimstore.co.uk
ADA CompliantYes
Assembly CodeC1030220
Asset TypeFixed
Barcode0
Classification NameUniclass2015
Classification ValuePr_40_20_87_78
Cold Water Conection Diamiter10 mm
Cold Water Radius5 mm
ColorChrome
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnJuly 13 - Revised August 2015
CW ConnectionYes
CWFU4.5
Default Elevation600 mm
DescriptionSingle-lever shower mixer (Chrome)
Documentation Certificateswww.grohe.co.uk/en_gb/grandera-single-lever-shower-mixer-trim-19932000.html?product=19932-G357&color=000&material=19932000
Documentation Installation Guidewww.grohe.co.uk/en_gb/grandera-single-lever-shower-mixer-trim-19932000.html?product=19932-G357&color=000&material=19932000
Documentation Literaturewww.grohe.co.uk/pim/profile/1000000/000000/20000/3000/200/121897.pdf
Documentation Technicalwww.grohe.co.uk/pim/profile/1000000/000000/20000/3000/200/121897.pdf
Duration UnitYears
EcojoyNo
Expected Life0
Faucet MaterialGrohe-Chrome
FinishChrome
Flow Rate20L/min (Spout) 7L/min (Shower)
Height482 mm
Hot Water Conection Diamiter10 mm
Hot Water Radius5 mm
HW ConnectionYes
HWFU4.5
Industry StandardsN/A
KeynoteN13
Length184 mm
Low Emitting MaterialYes
Maintenance Informationprojects.grohe.com/lib/1/tpi/1734224.pdf
ManufacturerGrohe AG
MaterialChrome
Material 2Grohe-Chrome
Mixing LeaverYes
ModelGrandera 19932000 Shower Mixer
Model Number19932000
NameGrandera 19932000 Shower Mixer
NBS DescriptionShower manual water supply sets
NBS Object NameShower mixers
NBS Reference45-35-70/335
No of Holes1
Operating Pressure10 bar
Percentage of Recycled Content0
Product Documentation Linkwww.grohe.co.uk/pim/profile/1000000/000000/20000/3000/200/121897.pdf
Product Page URLwww.grohe.co.uk/en_gb/grandera-single-lever-shower-mixer-trim-19932000.html?product=19932-G357&color=000&material=19932000
Production Year2015
Pull out or Pull DownPull Out
Spare Parts Listwww.grohe.co.uk/en_gb/grandera-single-lever-shower-mixer-trim-19932000.html?product=19932-G357&color=000&material=19932000
Type CommentsSingle-lever shower mixer (Chrome)
Type NameSingle-lever shower mixer (Chrome)
URLwww.grohe.com
Valve Spacing34 mm
Vent ConnectionNo
Warranty InfomationN/A
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
Width95 mm
