Grohe Grandera Single-Lever Bath Shower Mixer Trim - 19920000

Description

GranderaSingle-lever bath/shower mixer trimwithout concealed bodyset for final installation for35 501 000GROHE StarLight® chrome finishautomatic diverter: bath/showerescutcheon- and shaft-sealingmetal escutcheoncovered fixingmin. recommended pressure 1.0 bar

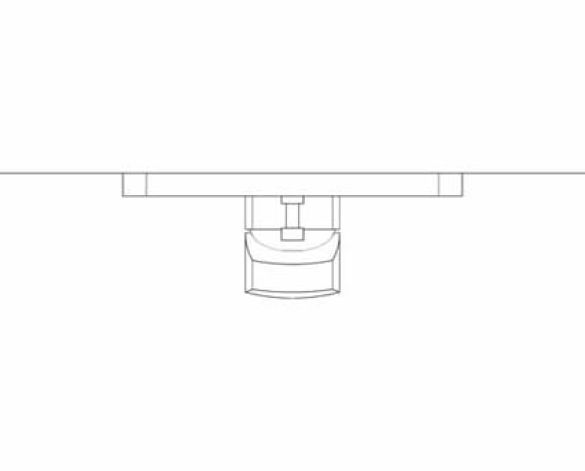

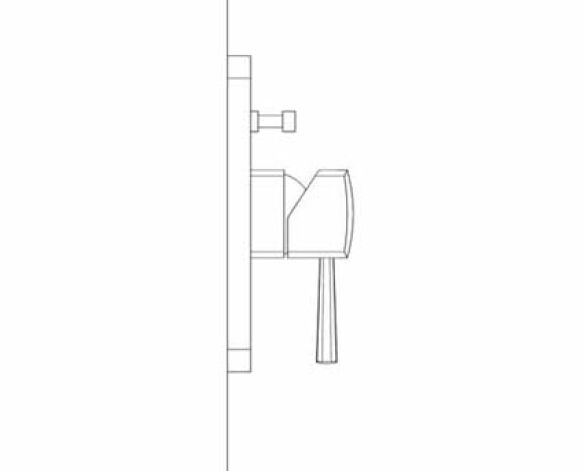

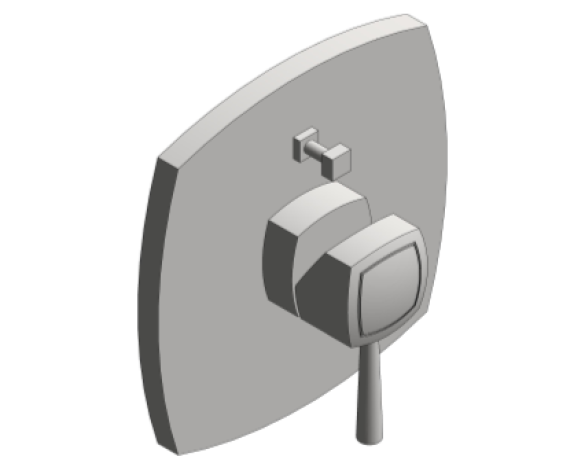

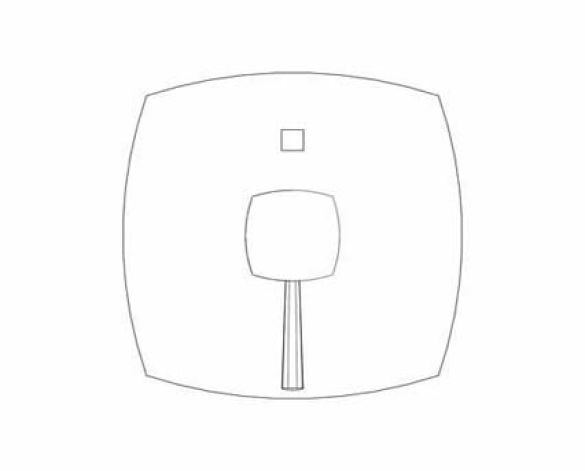

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

Available Colours;

19920DA0

Object Data

2 Revision

Last Updated

10/07/2017

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_AuthorRyan Lashley
_Authorized ByKris Atkinson
_Bim Spec Guid0
_BS Bible Version14
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
ADA CompliantYes
Assembly CodeC1030220
Asset TypeFixed
BIM Object NamePlumbingFixture_GroheLimited_GranderaSingleLeverBathShowerMixerTrim_19920000_METRIC
Classification NameUniclass2015
Classification ValuePr_40_20_87_07
Code Performancen/a
Cold Water Connection Diameter10 mm
ColorChrome
Constituentsn/a
Created Byinfo-uk@grohe.com
Created On2017-06-01T09:00:00
CW ConnectionYes
CWFU4.5
Default Elevation0 mm
DescriptionThe GROHE Grandera collection is both a homage to an age of grandeur long past and an affirmation of a modern sensibility, combining the highest standards of quality and craftsmanship with a love of detail and comfort.
Documentation Certificateswww.grohe.com/tz/25801/bathroom/bathroom-faucets/grandera/product-details/?product=19920-G357&color=000&material=19920000
Documentation Installation Guidewww.grohe.com/tz/25801/bathroom/bathroom-faucets/grandera/product-details/?product=19920-G357&color=000&material=19920000
Documentation Literaturen/a
Documentation Maintenancen/a
Documentation Technicaln/a
Duration UnitYears
EcojoyNo
Expected Life0
FeaturesThe GROHE Grandera collection is both a homage to an age of grandeur long past and an affirmation of a modern sensibility, combining the highest standards of quality and craftsmanship with a love of detail and comfort.
FinishChrome
Graden/a
Height72 mm
Hot Water Connection Diameter10 mm
HW ConnectionYes
HWFU4.5
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
Industry Standardsn/a
KeynoteN13
LEED Creditn/a
Length188 mm
Low Emitting MaterialNo
ManufacturerGrohe Limited
Manufacturer NameGrohe Limited
Masterformat Number22 41 39
Masterformat TitleResidential Faucets, Supplies, and Trim
MaterialChrome
ModelGrandera Single-Lever Bath Shower Mixer Trim
Model Number19920000
Model ReferenceGrandera Single-Lever Bath Shower Mixer Trim
NBS DescriptionBath manual water supply sets
NBS Object NameGrohe Limited - Bath manual water supply sets
NBS Office Master Tagn/a
NBS Reference45-35-70/315
Nominal Depth188 mm
Nominal Height72 mm
Nominal Length188 mm
No Of Holes1
Percentage Of Recycled Contentn/a
Primary MaterialGroheLimited-Chorme
Product Documentation Linkwww.grohe.com/tz/25801/bathroom/bathroom-faucets/grandera/product-details/?product=19920-G357&color=000&material=19920000
Production Year2017
Product Page URLwww.grohe.com/tz/25801/bathroom/bathroom-faucets/grandera/product-details/?product=19920-G357&color=000&material=19920000
Pull Out Or Pull DownPull Out
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsn/a
Type Comments19920000
Type NameGrandera Single-Lever Bath Shower Mixer Trim
URLwww.grohe.com
Valve Spacing34 mm
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com
Waste ConnectionNo
WFU0
Width188 mm
