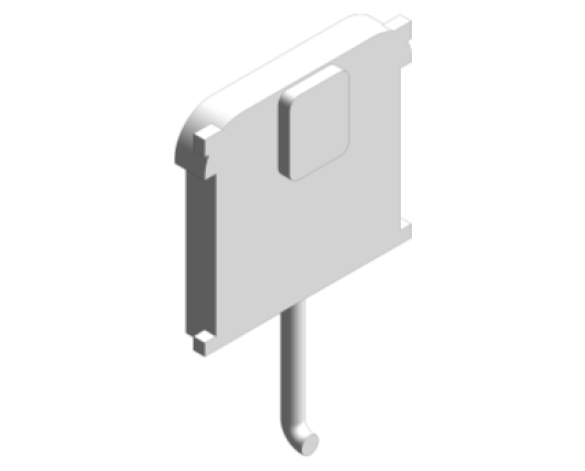

Grohe Flushing Cistern - 38863000

by GROHE

Download Add to collection

Description

Flushing cistern for WC 80 mm 6 - 9 l adjustable with small maintenance accesspneumatic discharge valve offering 3 modes of operation: dual flush or start/stop or single flushwater supply connection from toplow noise (group I acc. to German Noise Specification)with plaster base coating made of vinyl fleeceangle valve ½"with push fit flexible hose unionshortable inspection shaft incl.protection during construction phase,for vertical usefixing bracketswithout wall plate/actuationGROHE EcoJoy® technology for less water and perfect flow

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

Object Data

1 Revision

Last Updated

02/08/2016

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_authorized byKris Atkinson
_BIMspec_GUID0
_created byRyan Lashley
_current revision1
_distributed bywww.bimstore.co.uk
ADA CompliantNo
Assembly CodeC1030220
Asset TypeFixed
Classification NameUniclass 2015
Classification ValuePr_40_20_93_79
Cold Water Connection Diameter10 mm
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnMay 2016
CW ConnectionYes
CWFU4.5
Default Elevation600 mm
DescriptionUniset for WC 6 - 9 l adjustable with small maintenance access pneumatic discharge valve offering 3 modes of operation: dual flush or start/stop or single flush PE outlet bend Ø 80 mm inlet and outlet connecting set steel frame, hot galvanized, with 4 fixing brackets 2 WC fixing bolts distance of fixing bolts 180/230 mm fixing device for ceramic water supply connection from top low noise (group I acc. to German Noise Specification) test approval applied for with plaster base coating made of vinyl fleece angle valve ½ with push fit flexible hose union shortable inspection shaft incl. protection during construction phase, for vertical use without wall plate/actuation GROHE EcoJoy® technology for less water and perfect flow
Documentation Technicalcdn08.grohe.com/lib/1/tpi/1843242.pdf
Duration UnitYears
EcojoyNo
Expected Life0
Faucet MaterialABS Plastic - White
FeaturesUniset for WC 6 - 9 l adjustable with small maintenance access pneumatic discharge valve offering 3 modes of operation: dual flush or start/stop or single flush PE outlet bend Ø 80 mm inlet and outlet connecting set steel frame, hot galvanized, with 4 fixing brackets 2 WC fixing bolts distance of fixing bolts 180/230 mm fixing device for ceramic water supply connection from top low noise (group I acc. to German Noise Specification) test approval applied for with plaster base coating made of vinyl fleece angle valve ½ with push fit flexible hose union shortable inspection shaft incl. protection during construction phase, for vertical use without wall plate/actuation GROHE EcoJoy® technology for less water and perfect flow
Frame MaterialSteel, Paint Finish, Blue
Height855 mm
Hot Water Connection Diameter10 mm
HW ConnectionYes
HWFU4.5
Industry Standardsn/a
KeynoteN13
Length80 mm
Low Emitting MaterialNo
ManufacturerGrohe Limited
Masterformat Number01 52 19
Masterformat TitleSanitary Facilities
ModelUniset For WC
Model Number38863000
NBS DescriptionUrinal flushing valves;
NBS Object NameUrinal flushing valves;
NBS Reference45-35-70/355
Product Documentation Linkcdn08.grohe.com/lib/1/tpi/1843242.pdf
Product Page URLcdn08.grohe.com/lib/1/tpi/1843242.pdf
Production Year2016
Size80mmx550mmx855mm
Type Comments38863000
Type NameUniset For WC
URLwww.grohe.com
Vent ConnectionNo
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
Width550 mm
