Grohe Eurostyle - Single-Lever Basin Mixer M-Size - 23374003

Description

GROHE SilkMove® ES 35 mm ceramic cartridge with energy saving function via cold start adjustable flow rate limiter with temperature limiter.

GROHE StarLight® chrome finish.

GROHE EcoJoy® mousseur 5.7 l/min.

GROHE QuickFix® rapid installation system

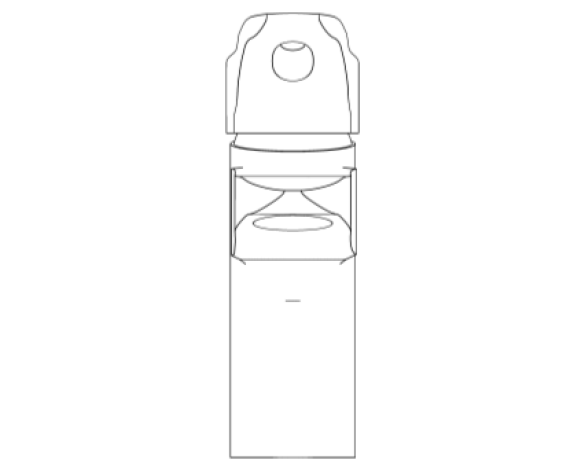

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

Object Data

1 Revision

Last Updated

23/03/2016

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

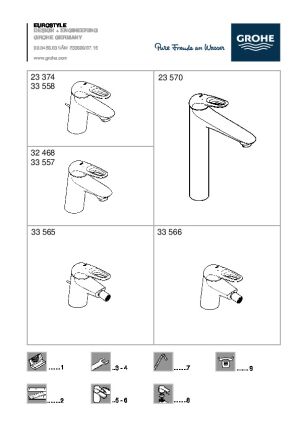

Technical Data Sheet

Product Data Sheet

Object metadata

_authorized byKris Atkinson
_BIMspec_GUID0
_created byRyan Lashley
_current revision1
_distributed bywww.bimstore.co.uk
ADA CompliantNo
Assembly CodeC1030220
Asset TypeFixed
Classification NameUniclass 2015
Classification ValuePr_40_20_87_96
Cold Water Connection Diameter10 mm
ColorChrome
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnMarch 2016
CW ConnectionYes
CWFU4.5
Default Elevation600 mm
DescriptionEurostyle. Single-lever basin mixer 1/2 M-Size. single hole installation. metal lever. 35 mm ceramic cartridge with energy saving function via cold start with temperature limiter. adjustable flow rate limiter. pop-up waste set 1 1/4. flexible connection hoses
Documentation Maintenanced3unq1hljpybmw.cloudfront.net/tpi/1000/1900/1940/1948/1948997/original/1948997.pdf
Documentation Technicald3unq1hljpybmw.cloudfront.net/tpi/1000/1900/1900/1902/1902082/original/1902082.pdf
Duration UnitYears
EcojoyYes
Expected Life0
Faucet MaterialGrohe-Chrome
FeaturesGROHE SilkMove® ES 35 mm ceramic cartridge with energy saving function via cold start adjustable flow rate limiter with temperature limiter. GROHE StarLight® chrome finish. GROHE EcoJoy® mousseur 5.7 l/min. GROHE QuickFix® rapid installation system
FinishChrome
Height203 mm
Hot Water Connection Diameter10 mm
HW ConnectionYes
HWFU4.5
Industry Standardsn/a
KeynoteN13
Length0 mm
Low Emitting MaterialNo
ManufacturerGrohe Limited
Masterformat Number01 52 19
Masterformat TitleSanitary Facilities
MaterialChrome
ModelEurostyle - Single Lever Basin Mixer M-Size
Model NumberEurostyle - 23374003
NBS DescriptionWater supply fittings for wash basins and troughs;
NBS Object NameWater supply fittings for wash basins and troughs;
NBS Reference45-35-70/371
Product Documentation Linkwww.grohe.com/30898/search/search-result/product-details/?product=23374-G433&color=003&material=23374003
Product Page URLwww.grohe.com/30898/search/search-result/product-details/?product=23374-G433&color=003&material=23374003
Production Year2016
SizeHeight 203mm
Type CommentsEurostyle - 23374003
Type NameEurostyle - Single Lever Basin Mixer M-Size
URLwww.grohe.com
Vent ConnectionNo
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
Width0 mm
