Grohe Eurosmart Sink Mixer - 33202001

by GROHE

Download Add to collection

Description

EurosmartSink mixer 1/2"monobloc installationGROHE SilkMove® 46 mm ceramic cartridgeGROHE StarLight® chrome finishadjustable flow rate limiterswivel tubular spoutmousseurflexible connection hosesrapid installation systemmin. recommended pressure 1.0 bar

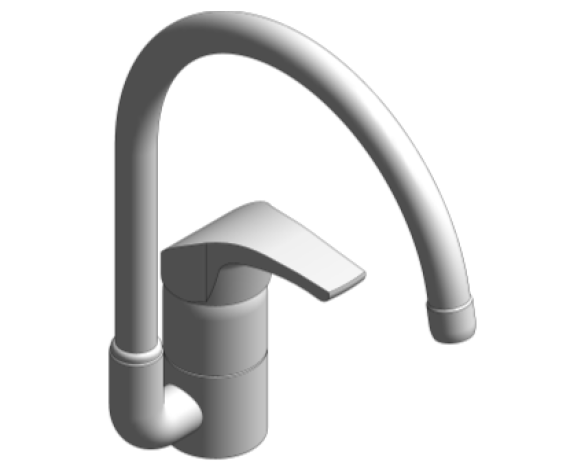

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

Object Data

1 Revision

Last Updated

09/09/2015

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_authorized byConnor Laing
_BIMspec_GUID0
_created bybimstore
_current revision2
_distributed bywww.bimstore.co.uk
ADA CompliantYes
Assembly CodeC1030220
Asset TypeFixed
Clamping Lengthmax 60mm
Classification NameUniclass2015
Classification ValuePr_40_20_87_98
Cold Water Connection Diameter10 mm
Cold Water Radius5 mm
ColorChrome
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnJuly 13 - Revised Aug 2015
CW ConnectionYes
CWFU4.5
Default Elevation600 mm
DescriptionFeaturing a solid metal handle and forward-leaning dynamic lines, Eurosmart is the perfect addition to all contemporary bathroom settings.
Documentation Certificateswww.grohe.com/ie/5440/kitchen/taps/eurosmart/product-details/?product=33202-G154&color=001&material=33202001
Documentation Installation Guidecdn08.grohe.com/lib/1/tpi/1948997.pdf
Documentation Literaturecdn08.grohe.com/lib/1/tpi/1853667.pdf
Documentation Maintenancecdn08.grohe.com/lib/1/tpi/1769293.pdf
Documentation Technicalcdn08.grohe.com/lib/1/tpi/1428310.pdf
Duration UnitYears
EcojoyNo
Expected Life0
FinishChrome
Flow Pressuremin 0.5 bar/recommended 1 - 5 bar
Flow Rateapprox 12 L/min
Height124 mm
Hot Water Connection Diameter10 mm
Hot Water Radius5 mm
HW ConnectionYes
HWFU4.5
Industry StandardsN/A
KeynoteN13
Length160 mm
Low Emitting MaterialYes
ManufacturerGrohe AG
MaterialChrome
Mixing LeaverYes
ModelEurosmart 33 202 001
Model Number33202001
NameEurosmart 33 202 001
NBS DescriptionWater supply fittings for wash basins and troughs
NBS Object NameWashbasin taps
NBS Reference45-35-70/371
Operating Pressuremax 10 bar
Percentage of Recycled Content0
Product Documentation Linkcdn08.grohe.com/lib/1/tpi/1428310.pdf
Product Page URLwww.grohe.com/ie/5440/kitchen/taps/eurosmart/product-details/?product=33202-G154&color=001&material=33202001
Production Year2015
Spare Parts Listwww.grohe.com/ie/5440/kitchen/taps/eurosmart/product-details/?product=33202-G154&color=001&material=33202001&%7E%5Bajax%5D=4141
Temp - Hot Water Supplymax 80°C
Temp - Hot Water Supply (Recommended)60°C
Test Pressure16 bar
Type CommentsSingle-lever sink mixer 1/2
Type NameSingle-lever sink mixer 1/2
URLwww.grohe.com
Vent ConnectionNo
Warranty InfomationN/A
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
Width52 mm
