Grohe Eurosmart Single Lever Bath Mixer - 33300002

Description

Eurosmart Single-lever bath mixer 1/2" wall mounted metal leverGROHE SilkMove® 35 mm ceramic cartridgewith temperature limiterGROHE StarLight® chrome finishadjustable flow rate limiterautomatic diverter: bath/showermousseurintegrated non-return valve in the shower outlet 1/2"S-unionsmetal wall escutcheonsprotected against backflow

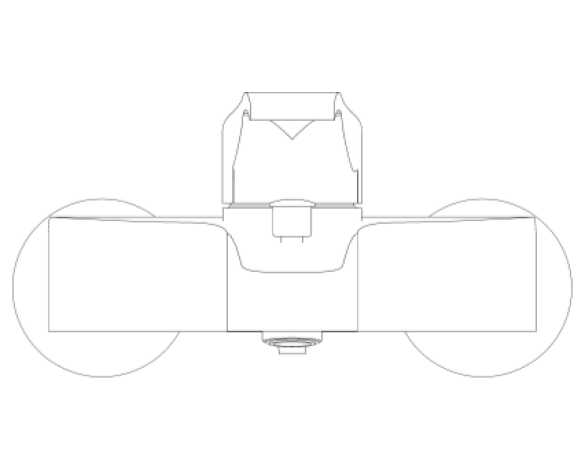

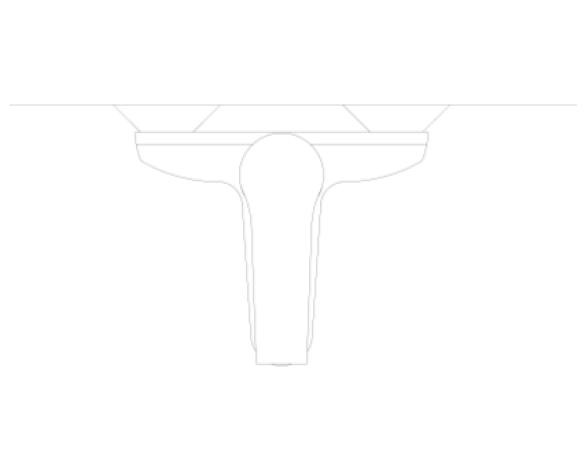

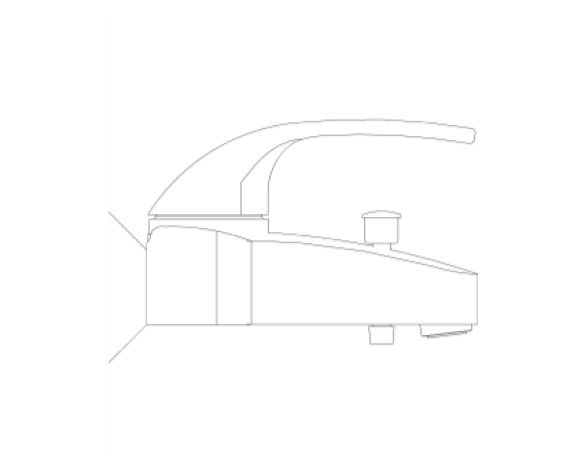

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

Object Data

1 Revision

Last Updated

28/07/2016

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_BIMspec_GUID0
_created byConnor Laing
_created dateJune 2016
_current revision1
_distributed bywww.bimstore.co.uk
ADA CompliantYes
Assembly CodeC1030220
Asset TypeFixed
Barcode0
Classification NameUniclass 2015
Classification ValuePr_40_20_87_98
Cold Water Connection Diameter10 mm
Cold Water Radius5 mm
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnJune 2016
CW ConnectionYes
CWFU4.5
Default Elevation600 mm
DescriptionWashing your hands with your hands free – this is the idea behind the wall-mounted Euroeco mixers. Wall-mounted installation keeps the basin free, and in order to reduce the risk of accidents caused by projecting parts, faucet levers and spouts are available in a choice of lengths.
Documentation Certificateswww.grohe.com/29439/product-catalogue/#!/search/33300002,1/G411/33300002//s%281%29
Documentation Installation Guidewww.grohe.com/29439/product-catalogue/#!/search/33300002,1/G411/33300002//s%281%29
Documentation Literaturewww.grohe.com/29439/product-catalogue/#!/search/33300002,1/G411/33300002//s%281%29
Documentation Maintenancewww.grohe.com/29439/product-catalogue/#!/search/33300002,1/G411/33300002//s%281%29
Documentation Technicalwww.grohe.com/29439/product-catalogue/#!/search/33300002,1/G411/33300002//s%281%29
Duration UnitYears
EcojoyNo
Expected Life0
Flow Pressuremin 0.5 bar/recommended 1 - 5 bar
Flow Rate8 L/min
Hot Water Connection Diameter10 mm
Hot Water Radius5 mm
HW ConnectionYes
HWFU4.5
Industry StandardsN/A
KeynoteN13
Low Emitting MaterialYes
Maintenance Informationprojects.grohe.com/lib/1/tpi/1734224.pdf
ManufacturerGrohe AG
MaterialGrohe-Chrome
Mixing LeaverYes
ModelEurosmart - 33300002
Model NumberEurosmart - 33300002
NameEurosmart - 33300002
NBS Object NameWater supply fittings for wash basins and troughs
NBS Reference45-35-70/371
Operating Pressuremax 10 bar
Percentage of Recycled Content0
Product Page URLwww.grohe.com/29439/product-catalogue/#!/search/33300002,1/G411/33300002//s%281%29
Serial Number0
Spare Parts Listwww.grohe.com/29439/product-catalogue/#!/search/33300002,1/G411/33300002//s%281%29
Spare Partswww.grohe.co.uk/en_gb/euroeco-single-sequential-single-lever-basin-mixer-1-2-32793000.html
Tag Number0
Temp - Hot Water Supplymax 80°C
Temp - Hot Water Supply (Recommended)60°C
Test Pressure16 bar
Type CommentsWash basin mixer wall mounted.
Type NameEurosmart - 33300002
URLwww.grohe.com
Vent ConnectionNo
Warranty InfomationN/A
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
