Grohe Eurosmart Single-Lever Basin Mixer - 2339310E

3.6k
0
4 / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

02/09/2015

Download BIM

Add to collection

Available for:

EurosmartSingle-lever basin mixer 1/2" M-Sizesingle hole installation metal lever GROHE SilkMove® ES 28 mm ceramic cartridge with energy saving function via cold start with temperature limiterGROHE StarLight® chrome finishGROHE EcoJoy® mousseur 5.7 l/min pop-up waste set 1 1/4" flexible connection hosesGROHE QuickFix® rapid installation system

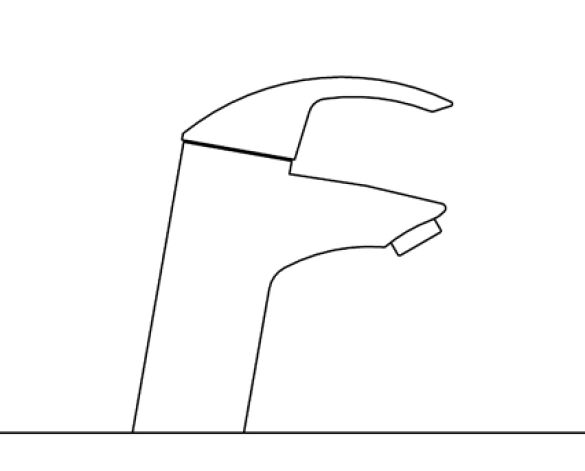

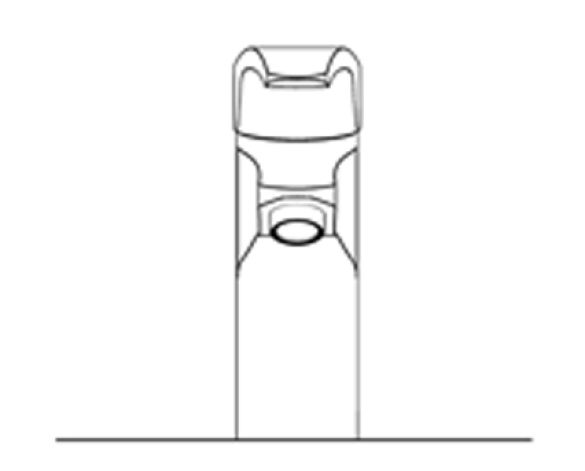

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

_BIMspec_GUID0
_created byConnor Laing
_created dateApril 2015
_current revision2
_distributed bywww.bimstore.co.uk
ADA CompliantYes
Assembly CodeC1030220
Asset TypeFixed
Barcode0
Classification NameUniclass2015
Classification ValuePr_40_20_87_98
Cold Water Connection Diameter10 mm
Cold Water Radius5 mm
ColorChrome
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnApril 2015
CW ConnectionYes
CWFU4.5
Default Elevation600 mm
DescriptionFeaturing a solid metal handle and forward-leaning dynamic lines, Eurosmart is the perfect addition to all contemporary bathroom settings. This high-quality faucet incorporates GROHE SilkMove® for smooth handling and GROHE StarLight® chrome for a lifelong shine. A basin mixer, with the latest GROHE EcoJoy technology, reduces water consumption to a maximum of 5.8 liters per minute.
Documentation Certificatescdn08.grohe.com/lib/1/tpi/1755508.pdf
Documentation Installation Guidecdn08.grohe.com/lib/1/tpi/1755508.pdf
Documentation LiteratureNo
Documentation Technicalcdn08.grohe.com/lib/1/tpi/1755508.pdf
Duration UnitYears
EcojoyYes
Expected Life0
FinishChrome
Flow Pressuremin 0.5 bar/recommended 1 - 5 bar
Flow Rate5 L/min
Height1 mm
Hot Water Connection Diameter10 mm
Hot Water Radius5 mm
HW ConnectionYes
HWFU4.5
Industry StandardsN/A
KeynoteN13
Length0 mm
Low Emitting MaterialYes
Maintenance Informationcdn08.grohe.com/lib/1/tpi/1755508.pdf
ManufacturerGrohe AG
MaterialGrohe-Chrome
Mixing LeaverYes
ModelEurosmart 23393 10E
Model NumberEurosmart 23393 10E
NameEurosmart 23393 10E
NBS Object NameWater supply fittings for wash basins and troughs
NBS Reference45-35-70/371
Operating Pressuremax 10 bar
Percentage of Recycled Content0
Product Documentation Linkcdn08.grohe.com/lib/1/tpi/1755508.pdf
Product Page URLcdn08.grohe.com/lib/1/tpi/1755508.pdf
Serial Number0
Spare Parts Listcdn08.grohe.com/lib/1/tpi/1755508.pdf
Tag Number0
Temp - Hot Water Supplymax 80°C
Temp - Hot Water Supply (Recommended)60°C
Test Pressure16 bar
Type CommentsWash basin basin mixer ES with chain
URLwww.grohe.com
Vent ConnectionNo
Warranty InfomationN/A
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
Width0 mm
