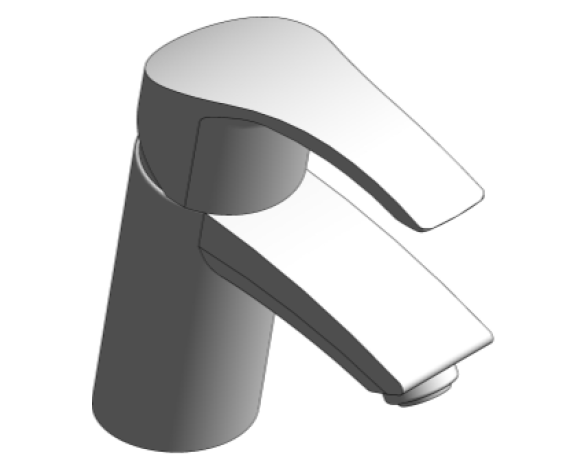

Grohe Eurosmart Single Lever Basin Mixer - 23372002

Description

EurosmartSingle-lever basin mixer 1/2"S-Sizesingle hole installationmetal leverGROHE SilkMove® ES35 mm ceramic cartridge with energy saving function via cold startadjustable flow rate limiterwith temperature limiterGROHE StarLight® chrome finishGROHE EcoJoy® mousseur 5.7 l/minGROHE QuickFix® rapid installation systemretractable chainflexible connection hoses

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

Object Data

1 Revision

Last Updated

27/07/2016

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_authorized byKris Atkinson
_BIMspec_GUID0
_created byConnor Laing
_current revision1
_distributed bywww.bimstore.co.uk
ADA CompliantNo
Assembly CodeC1030220
Asset TypeFixed
Classification NameUniclass 2015
Classification ValuePr_40_20_87_96
Cold Water Connection Diameter10 mm
ColorChrome
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnJune 2016
CW ConnectionYes
CWFU4.5
Default Elevation600 mm
DescriptionEurosmart. Single-lever basin mixer 1/2. S-Size. single hole installation. metal lever. adjustable flow rate limiter. pop-up waste set 1. flexible connection hoses. GROHE QuickFix® installation system
Documentation Technicalwww.grohe.com/29439/product-catalogue/#!/search/23372002,1/G411/23372002//s%281%29
Duration UnitYears
EcojoyYes
Expected Life0
Faucet MaterialGrohe-Chrome
FeaturesGROHE SilkMove® 35 mm ceramic cartridge with temperature limiter. GROHE StarLight® chrome finish. GROHE EcoJoy® mousseur 5.7 l/min. GROHE QuickFix® installation system
FinishChrome
Flow0 L/s
Hot Water Connection Diameter10 mm
HW ConnectionYes
HWFU4.5
Industry Standardsn/a
KeynoteN13
Low Emitting MaterialNo
ManufacturerGrohe Limited
Masterformat Number01 52 19
Masterformat TitleSanitary Facilities
MaterialChrome
ModelEurosmart - Single-Lever Basin Mixer S Size - 23372002
Model NumberEurosmart - 23372002
NBS DescriptionWater supply fittings for wash basins and troughs;
NBS Object NameWater supply fittings for wash basins and troughs;
NBS Reference45-35-70/371
Product Documentation Linkwww.grohe.com/29439/product-catalogue/#!/search/23372002,1/G411/23372002//s%281%29
Product Page URLwww.grohe.com/29439/product-catalogue/#!/search/23372002,1/G411/23372002//s%281%29
Production Year2016
Type CommentsEurosmart - 23372002
Type NameEurosmart - Single-Lever Basin Mixer S Size - 23372002
URLwww.grohe.com
Vent ConnectionNo
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
