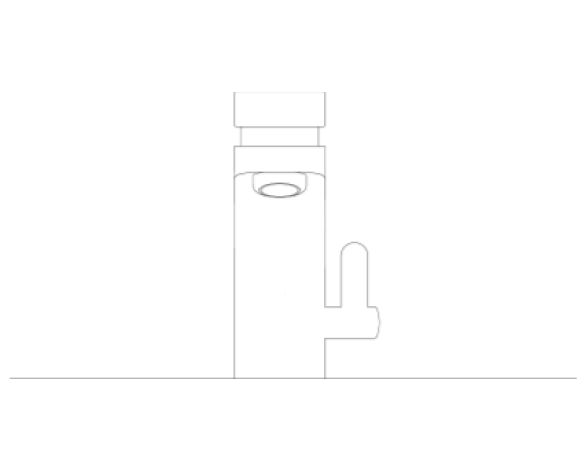

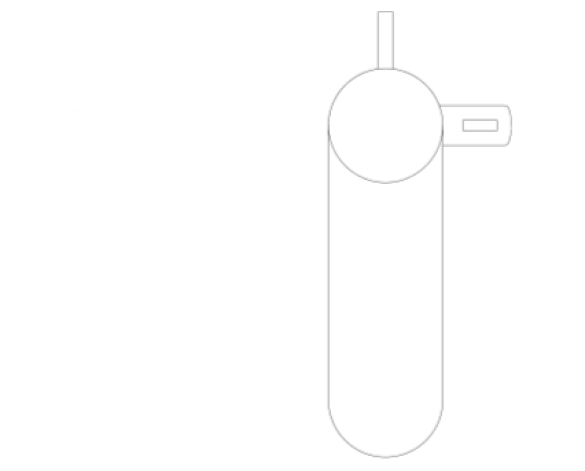

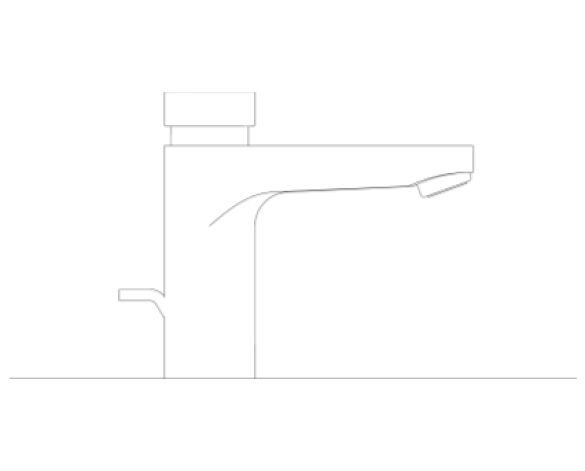

Grohe Eurosmart Cosmopolitan T Self Close Basin Mixer - 36318000

3.1k
0
- / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

29/07/2016

Download BIM

Add to collection

Available for:

Eurosmart Cosmopolitan T Self-closing basin mixer with mixing device and adjustable temperature limiterGROHE StarLight® chrome finishGROHE EcoJoy® 5.7 l/min. flow limiterpop-up waste set 1 1/4"3 adjustable flow times: short - medium - long (factory setting: short), approx. 7, 15, 30 sec (pressure dependent)pressure range 0.5 to 6 bar2 flexible hosesnon-return valvedirt strainersmin. recommended pressure 1.0 bar

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

_authorized byConnor Laing
_BIMspec_GUID0
_created bybimstore
_current revision1
_distributed bywww.bimstore.co.uk
ADA CompliantYes
Assembly CodeC1030220
Asset TypeFixed
Classification NameUniclass2015
Classification ValuePr_40_20_87_98
Cold Water Connection Diameter10 mm
Cold Water Radius5 mm
ColorChrome
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnJune 2016
CW ConnectionYes
CWFU4.5
Default Elevation600 mm
DescriptionReflecting the core values of Minimalism, Eurosmart Cosmopolitan is the modern favorite in the bathroom. Finished in sparkling GROHE StarLight® chrome, the conical transition from the faucet body to the lever handle conveys a refined form without sacrificing solidity. An extensive line up of products brings architectural design preferences to a wider audience and includes four styles of basin faucet to complement the latest bathroom ceramics. For improved user comfort, the lozenge-shaped lever handle is pitched at an angle of seven degrees and benefits from GROHE SilkMove® our superior cartridge technology, which delivers lifelong smooth handling across the collection.
Documentation Certificateswww.grohe.com/29439/product-catalogue/#!/search/36318000,1/G306/36318000//s(1)
Documentation Installation Guidewww.grohe.com/29439/product-catalogue/#!/search/36318000,1/G306/36318000//s(1)
Documentation Literaturewww.grohe.com/29439/product-catalogue/#!/search/36318000,1/G306/36318000//s(1)
Documentation Maintenancewww.grohe.com/29439/product-catalogue/#!/search/36318000,1/G306/36318000//s(1)
Documentation Technicalwww.grohe.com/29439/product-catalogue/#!/search/36318000,1/G306/36318000//s(1)
Duration UnitYears
EcojoyYes
Expected Life0
Faucet MaterialGrohe-Chrome
FinishChrome
Flow Pressuremin 0.05MPa/recommended 0.1 - 0.6MPa
Flow Rateapprox 6 L/min
Height125 mm
Hot Water Connection Diameter10 mm
Hot Water Radius5 mm
HW ConnectionYes
HWFU4.5
Industry StandardsN/A
KeynoteN13
Length48 mm
Low Emitting MaterialYes
ManufacturerGrohe AG
MaterialChrome
Mixing LeaverYes
ModelEurosmart Cosmopolitan T Self-closing basin mixer with mixing device and adjustable - 36318000
Model Number36318000
NameEurosmart Cosmopolitan T Self-closing basin mixer with mixing device and adjustable - 36318000
NBS DescriptionWater supply fittings for wash basins and troughs
NBS Object NameWashbasin taps
NBS Reference45-35-70/371
Operating Pressuremax 1MPa
Percentage of Recycled Content0
Product Documentation Linkwww.grohe.com/29439/product-catalogue/#!/search/36318000,1/G306/36318000//s(1)
Product Page URLwww.grohe.com/29439/product-catalogue/#!/search/36318000,1/G306/36318000//s(1)
Production Year2016
Spare Parts Listwww.grohe.com/29439/product-catalogue/#!/search/36318000,1/G306/36318000//s(1)
Temp - Hot Water Supplymax 70 deg C
Temp - Hot Water Supply (Recommended)60 deg C
Type CommentsEurosmart Cosmopolitan T Self-closing basin mixer with mixing device and adjustable - 36318000
Type NameEurosmart Cosmopolitan T Self-closing basin mixer with mixing device and adjustable - 36318000
URLwww.grohe.com
Vent ConnectionNo
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
Width145 mm
