Compliant
Compliant
Compliant
1 Revision
09/09/2015

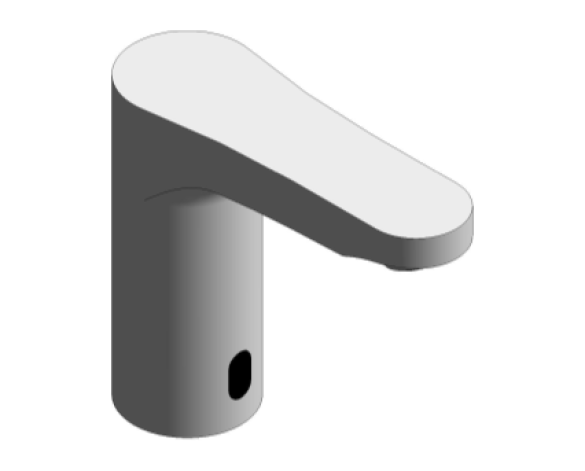

Eurosmart Cosmopolitan EInfra-red electronic basin mixer 1/2" with hidden mixing device and adjustable temperature limiterwith infrared sensor for bi-directional communication for monitoring, configuration and service purpose 6 V lithium-battery, type CR-P2 battery lifetime: approx. 7 years (150 actuations a day) multistage battery status display single hole installation with integrated solenoid valveGROHE EcoJoy® mousseur 5.7 l/min non-return valve dirt strainers external battery mixing device with adjustable hot water limiter rapid installation system 7 pre-set programs: fixed build in static flow limiter 5 l/min on the hose connection acoustic group I in accordance with DIN 4109 type of protection faucet IP 59K CE approved min. recommended pressure 1.0 bar
This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.
This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.
Read moreWe have more variations, please download the object to get them all.
To embed this product into any website simply copy and paste the code below.
