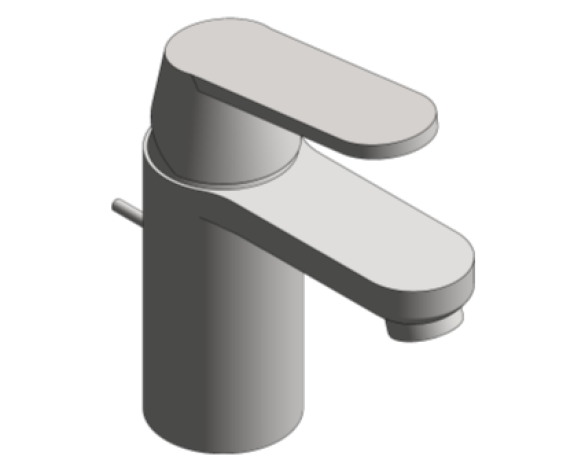

Grohe Eurosmart Basin Mixer - 32825000

3.6k
0
- / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

04/09/2017

Download BIM

Add to collection

Available for:

Durability and smooth handling: GROHE Eurosmart Cosmopolitan is a product line made to meet sophisticated demands. A quick wipe with a cloth will make the chrome surface shine like new and thanks to the premium ceramic cartridge, the lever moves ever so smoothly. Opening and closing the waste is easily done using the pop-up rod. Opt for the Eurosmart Cosmopolitan bathroom tap and enjoy the trusted GROHE quality!

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2015 for use in MEP systems and is in line with 2015 industry standards.

_AuthorRyan Lashley
_Authorized ByKris Atkinson
_Bim Spec Guid0
_BS Bible Version14
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
ADA CompliantNo
Assembly CodeD2010
Asset TypeFixed
BIM Object NamePlumbingFixture_GroheLimited_EurosmartBasinMixer_32825000_METRIC
Classification NameUniclass2015
Classification ValuePr_40_20_87_82
Code Performancen/a
Cold Water Connection Diameter10 mm
ColorSilver
Constituentsn/a
Created Byinfo-uk@grohe.com
Created On2017-09-01T09:00:00
CW ConnectionYes
CWFU4.5
Default Elevation0 mm
DescriptionEurosmart Cosmopolitan. Basin mixer 1/2". S-Size. monobloc installation. metal lever. GROHE SilkMove 35 mm ceramic cartridge. adjustable flow rate limiter. GROHE StarLight chrome finish. GROHE QuickFix installation system. with centering support. mousseur. pop-up waste set 1 1/4". flexible connection hoses. min. recommended pressure 1 bar. optional temperature limiter (46 375 000).
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturen/a
Documentation Maintenancen/a
Documentation Technicaln/a
Duration UnitYears
EcojoyNo
Expected Life0
FeaturesEurosmart Cosmopolitan. Basin mixer 1/2". S-Size. monobloc installation. metal lever. GROHE SilkMove 35 mm ceramic cartridge. adjustable flow rate limiter. GROHE StarLight chrome finish. GROHE QuickFix installation system. with centering support. mousseur. pop-up waste set 1 1/4". flexible connection hoses. min. recommended pressure 1 bar. optional temperature limiter (46 375 000).
FinishChrome
Graden/a
Hot Water Connection Diameter10 mm
HW ConnectionYes
HWFU4.5
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
Industry Standardsn/a
KeynoteN13
LEED Creditn/a
Low Emitting MaterialNo
ManufacturerGrohe Limited
Manufacturer NameGrohe Limited
Masterformat Number01 52 19
Masterformat TitleSanitary Facilities
MaterialChrome
ModelEurosmart Cosmopolitan Basin mixer 1/2"S - Size
Model Number32825000
Model ReferenceEurosmart Cosmopolitan Basin mixer 1/2"S - Size
NBS DescriptionWater supply fittings for sinks
NBS Object NameGrohe Limited - Water supply fittings for sinks
NBS Office Master Tagn/a
NBS Reference45-35-70/345
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Percentage Of Recycled Contentn/a
Pipe MaterialGroheLimited-Pipework
Primary MaterialGroheLimited-Chrome
Product Documentation Linkwww.grohe.co.uk/en_gb/eurosmart-cosmopolitan-basin-mixer-1-2-s-size-32825000.html
Production Year2017
Product Page URLwww.grohe.co.uk/en_gb/eurosmart-cosmopolitan-basin-mixer-1-2-s-size-32825000.html
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsn/a
Type Comments32825000
Type NameEurosmart Cosmopolitan Basin mixer 1/2"S - Size
URLwww.grohe.com
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com
Waste ConnectionNo
WFU0
