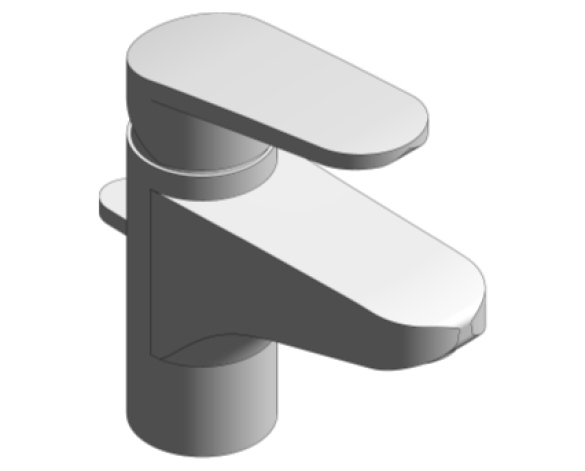

EUROPLUS Basin mixer 1/2″ S-Size (33155002)

3.2k
0
- / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

22/03/2017

Download BIM

Add to collection

Available for:

EuroplusSingle-lever basin mixer 1/2"S-Sizesingle hole installationmetal leverGROHE SilkMove® 35 mm ceramic cartridgeadjustable flow rate limiteradjustable minimum flow rate approx. 2.5 l/mintemperature limiterGROHE StarLight® chrome finishrapid installation systempull out spout with SpeedClean mousseurintegrated non-return valvepop-up waste set 1 1/4"flexible connection hoses

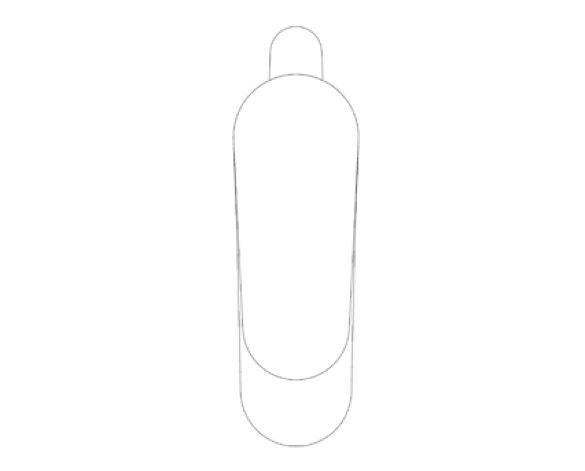

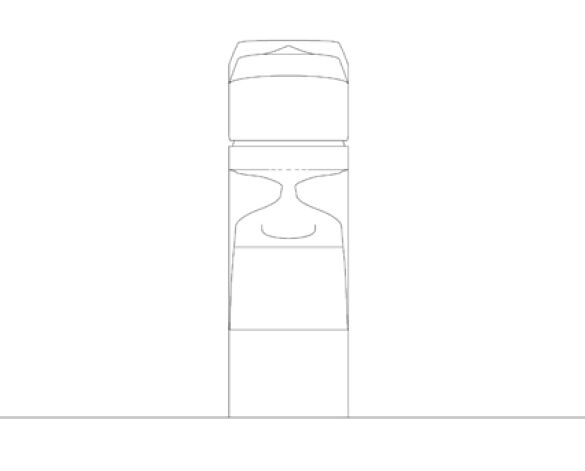

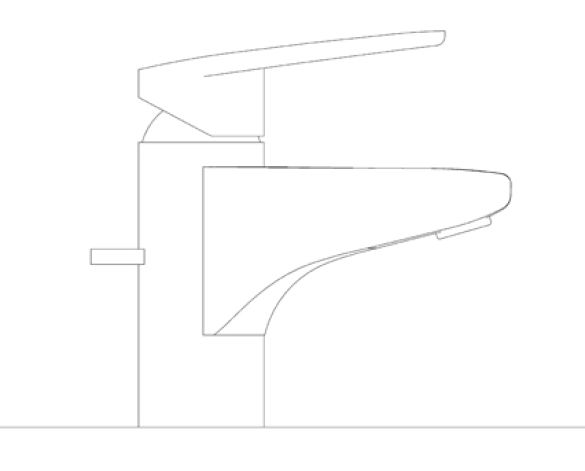

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

_authorized byKris Atkinson
_BIMspec_GUID0
_created byRyan Lashley
_current revision1
_distributed bywww.bimstore.co.uk
ADA CompliantNo
Assembly CodeC1030220
Asset TypeFixed
Classification NameUniclass 2015
Classification ValuePr_40_20_87_96
Cold Water Connection Diameter10 mm
ColorChrome
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnFebruary 2017
CW ConnectionYes
CWFU4.5
Default Elevation600 mm
DescriptionEuroplus. Single-lever basin mixer 1/2. S-Size. single hole installation. metal lever. GROHE SilkMove® 35 mm ceramic cartridge. adjustable flow rate limiter. adjustable minimum flow rate approx. 2.5 l/min. temperature limiter. GROHE StarLight® chrome finish. rapid installation system. pull out spout with SpeedClean mousseur. integrated non-return valve. pop-up waste set 1 1/4. flexible connection hoses
Duration UnitYears
EcojoyYes
Expected Life0
Faucet MaterialGrohe-Chrome
FeaturesEuroplus. Single-lever basin mixer 1/2. S-Size. single hole installation. metal lever. GROHE SilkMove® 35 mm ceramic cartridge. adjustable flow rate limiter. adjustable minimum flow rate approx. 2.5 l/min. temperature limiter. GROHE StarLight® chrome finish. rapid installation system. pull out spout with SpeedClean mousseur. integrated non-return valve. pop-up waste set 1 1/4. flexible connection hoses
FinishChrome
Hot Water Connection Diameter10 mm
HW ConnectionYes
HWFU4.5
Industry Standardsn/a
KeynoteN13
Low Emitting MaterialNo
ManufacturerGrohe Limited
Masterformat Number01 52 19
Masterformat TitleSanitary Facilities
MaterialChrome
ModelEuroplus - Single Lever Basin Mixer
Model NumberEuroplus - 33155002
NBS DescriptionWater supply fittings for wash basins and troughs;
NBS Object NameWater supply fittings for wash basins and troughs;
NBS Reference45-35-70/371
Production Year2016
Type CommentsEuroplus - 33155002
Type NameEuroplus - Single Lever Basin Mixer
URLwww.grohe.com
Vent ConnectionNo
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
