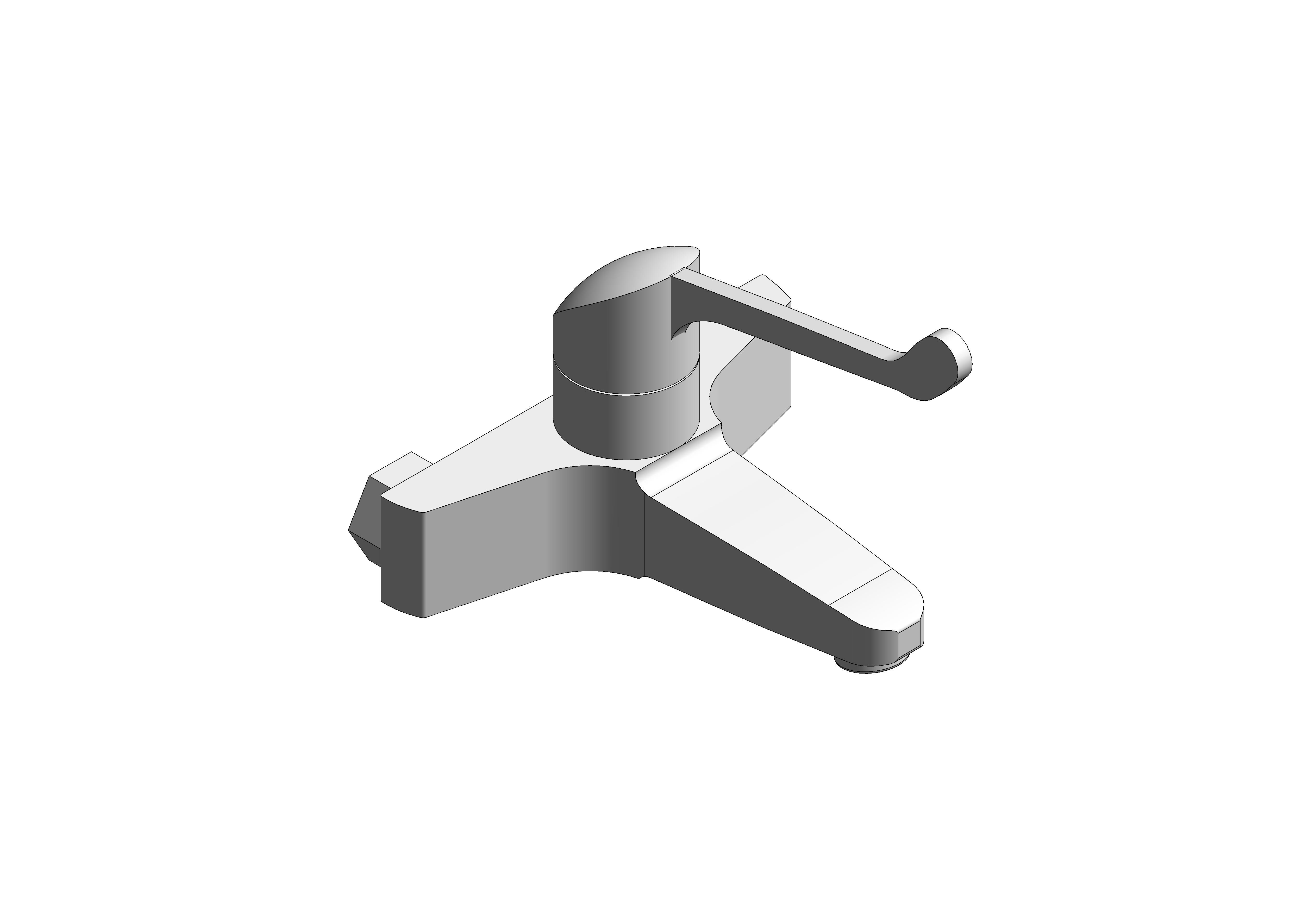

Grohe Euroeco Special Wash Basin Mixer with Wall Mounted Safety Lever - 32823000

by GROHE

Download Add to collection

Description

Euroeco Special Single-lever safety basin mixer 1/2"wall mountedwithout connection unionsmetal leverlever length 170 mmcast spout with flow straightener 9 l/min.adjustable flow rate limiteradjustable minimum flow rate 6 l/min.temperature limiterceramic cartridge

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

Object Data

1 Revision

Last Updated

02/02/2018

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_authorized byConnor Laing
_BIMspec_GUID0
_created bybimstore
_current revision2
_distributed bywww.bimstore.co.uk
ADA CompliantYes
Assembly CodeC1030220
Asset TypeFixed
Classification NameUniclass2015
Classification ValuePr_40_20_87_76
Cold Water Connection Diameter10 mm
Cold Water Radius5 mm
ColorChrome
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnJuly 13 - Revised August 2015
CW ConnectionYes
CWFU4.5
Default Elevation600 mm
DescriptionReflecting the core values of Minimalism, Eurosmart Cosmopolitan is the modern favorite in the bathroom. Finished in sparkling GROHE StarLight® chrome, the conical transition from the faucet body to the lever handle conveys a refined form without sacrificing solidity. An extensive line up of products brings architectural design preferences to a wider audience and includes four styles of basin faucet to complement the latest bathroom ceramics. For improved user comfort, the lozenge-shaped lever handle is pitched at an angle of seven degrees and benefits from GROHE SilkMove® our superior cartridge technology, which delivers lifelong smooth handling across the collection.
Documentation Certificateswww.grohe.com/is/21885/bathroom/bathroom-faucets/euroeco/product-details/?product=32823-G284&color=000&material=32823000
Documentation Installation Guidewww.grohe.com/is/21885/bathroom/bathroom-faucets/euroeco/product-details/?product=32823-G284&color=000&material=32823000
Documentation Literaturecdn08.grohe.com/lib/1/tpi/1948997.pdf
Documentation Maintenancecdn08.grohe.com/lib/1/tpi/1769293.pdf
Documentation Technicalcdn08.grohe.com/lib/1/tpi/1597261.pdf
Duration UnitYears
EcojoyNo
Expected Life0
Faucet MaterialGrohe-Chrome
FinishChrome
Flow Pressuremin 0.05MPa/recommended 0.1 - 0.6MPa
Flow Rateapprox 6 L/min
Hot Water Connection Diameter10 mm
Hot Water Radius5 mm
HW ConnectionYes
HWFU4.5
Industry StandardsN/A
KeynoteN13
Low Emitting MaterialYes
ManufacturerGrohe AG
MaterialChrome
Mixing LeaverYes
ModelEureco Special Basin Mixer - 32823000
Model NumberWashbasin taps
NameEureco Special Basin Mixer - 32823000
NBS DescriptionWater supply fittings for wash basins and troughs
NBS Object NamePr_40_20_87_98
NBS Reference45-35-70/371
Operating Pressuremax 1MPa
Percentage of Recycled Content0
Product Page URLwww.grohe.com/is/21885/bathroom/bathroom-faucets/euroeco/product-details/?product=32823-G284&color=000&material=32823000
Production Year2015
Spare Parts Listwww.grohe.com/is/21885/bathroom/bathroom-faucets/euroeco/product-details/?product=32823-G284&color=000&material=32823000&%7E%5Bajax%5D=38261
Temp - Hot Water Supplymax 70 deg C
Temp - Hot Water Supply (Recommended)60 deg C
Type CommentsSpecial Wash Basin Tap With Mixer
Type NameSpecial Wash Basin Tap With Mixer
URLwww.grohe.com
Vent ConnectionNo
Warranty InfomationN/A
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
Width150 mm
