Grohe Euroeco Special SMB Single-Lever Basin Mixer - 32790000

Description

Euroeco Special / SMBSingle-lever basin mixer 1/2"monobloc installationGROHE StarLight® chrome finishGROHE EcoJoy® technology for less water and perfect flow ceramic cartridgeadjustable flow rate limiteradjustable minimum flow rate 6 l/min.laminar flow straightener 9 l/min.metal leverlever length 120 mmtemperature limitersmooth bodyrapid installation systemflexible connection hoseshigh versionDVGW Reg. No. orderedmin. recommended pressure 1.0 bar

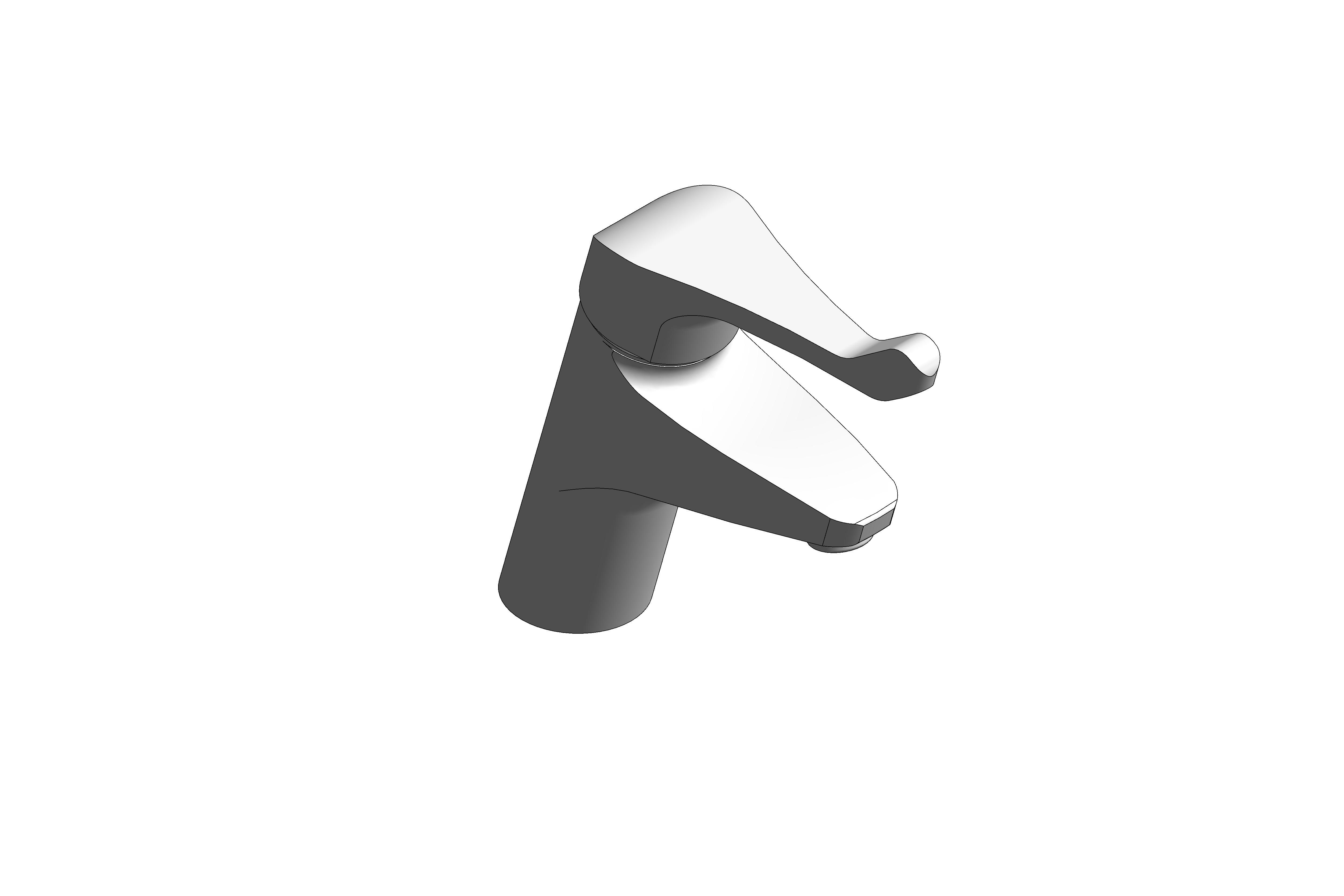

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

Object Data

1 Revision

Last Updated

09/09/2015

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_authorized byConnor Laing
_BIMspec_GUID0
_created bybimstore
_current revision2
_distributed bywww.bimstore.co.uk
ADA CompliantYes
Assembly CodeC1030220
Asset TypeFixed
Classification NameUniclass2015
Classification ValuePr_40_20_87_98
Cold Water Connection Diameter10 mm
Cold Water Radius5 mm
ColorChrome
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnJuly 13 - Revised August 2015
CW ConnectionYes
CWFU4.5
Default Elevation600 mm
DescriptionWashing your hands with your hands free – this is the idea behind the wall-mounted Euroeco mixers. Wall-mounted installation keeps the basin free, and in order to reduce the risk of accidents caused by projecting parts, faucet levers and spouts are available in a choice of lengths.
Documentation Certificateswww.grohe.com/mt/24790/bathroom/bathroom-faucets/euroeco/product-details/?product=32790-G284&color=000&material=32790000
Documentation Installation Guidewww.grohe.com/mt/24790/bathroom/bathroom-faucets/euroeco/product-details/?product=32790-G284&color=000&material=32790000
Documentation Literaturecdn08.grohe.com/lib/1/tpi/1948997.pdf
Documentation Maintenancecdn08.grohe.com/lib/1/tpi/1769293.pdf
Documentation Technicalcdn08.grohe.com/lib/1/tpi/1395120.pdf
Duration UnitYears
EcojoyNo
Expected Life0
FinishChrome
Flow Pressuremin 0.5 bar/recommended 1 - 5 bar
Flow Rateapprox 8 L/min
Height226 mm
Hot Water Connection Diameter10 mm
Hot Water Radius5 mm
HW ConnectionYes
HWFU4.5
Industry StandardsN/A
KeynoteN13
Length129 mm
Low Emitting MaterialNo
ManufacturerGrohe AG
MaterialChrome
Mixing LeaverYes
ModelEuroeco Safety Mixer - 32790000
Model Number32790000
NameEuroeco Safety Mixer - 32790000
NBS DescriptionWater supply fittings for wash basins and troughs
NBS Object NameWashbasin taps
NBS Reference45-35-70/371
Operating Pressuremax 10 bar
Percentage of Recycled Content0
Product Documentation Linkcdn08.grohe.com/lib/1/tpi/1395120.pdf
Product Page URLwww.grohe.com/mt/24790/bathroom/bathroom-faucets/euroeco/product-details/?product=32790-G284&color=000&material=32790000
Production Year2015
Spare Parts Listwww.grohe.com/nl/5632/zoek/zoekresultaat/product-details/?product=32790-G284&color=000
Temp - Hot Water Supplymax 80°C
Temp - Hot Water Supply (Recommended)60°C
Test Pressure16 bar
Type CommentsSingle-lever safety basin mixer 1/2
Type NameSingle-lever safety basin mixer 1/2
URLwww.grohe.com
Vent ConnectionNo
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
Width0 mm
