Grohe Euroeco Special Single Lever Safety Sink Mixer - 3391200

2.8k
0
- / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

28/07/2016

Download BIM

Add to collection

Available for:

Euroeco Special Single-lever safety sink mixer 1/2"single hole installationGROHE StarLight® chrome finishceramic cartridgeadjustable flow rate limiteradjustable temperature limiterlaminar flow straightener 9 l/min.swivel tubular spoutselectable swivel area: 0° / 150° / 360°metal leverlever length 120 mmtemperature limiterattention: old product

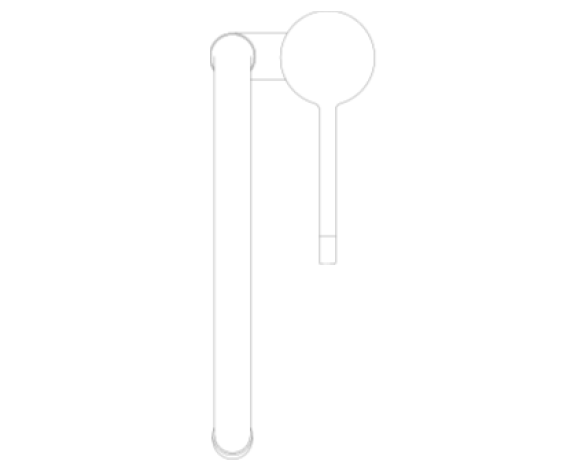

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

_authorized byConnor Laing
_BIMspec_GUID0
_created bybimstore
_current revision1
_distributed bywww.bimstore.co.uk
ADA CompliantYes
Assembly CodeC1030220
Asset TypeFixed
Clamping Lengthmax 60mm
Classification NameUniclass2015
Classification ValuePr_40_20_87_98
Cold Water Connection Diameter10 mm
Cold Water Radius5 mm
ColorChrome
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnJune 2016
CW ConnectionYes
CWFU4.5
Default Elevation600 mm
DescriptionFeaturing a solid metal handle and forward-leaning dynamic lines, Eurosmart is the perfect addition to all contemporary bathroom settings.
Documentation Certificateswww.grohe.com/29439/product-catalogue/#!/search/33912000,1/G047/33912000//s%281%29
Documentation Installation Guidewww.grohe.com/29439/product-catalogue/#!/search/33912000,1/G047/33912000//s%281%29
Documentation Literaturewww.grohe.com/29439/product-catalogue/#!/search/33912000,1/G047/33912000//s%281%29
Documentation Maintenancewww.grohe.com/29439/product-catalogue/#!/search/33912000,1/G047/33912000//s%281%29
Documentation Technicalwww.grohe.com/29439/product-catalogue/#!/search/33912000,1/G047/33912000//s%281%29
Duration UnitYears
EcojoyNo
Expected Life0
FinishChrome
Flow Pressuremin 0.5 bar/recommended 1 - 5 bar
Flow Rateapprox 12 L/min
Height124 mm
Hot Water Connection Diameter10 mm
Hot Water Radius5 mm
HW ConnectionYes
HWFU4.5
Industry StandardsN/A
KeynoteN13
Length160 mm
Low Emitting MaterialYes
ManufacturerGrohe AG
MaterialChrome
Mixing LeaverYes
ModelEurosmart - 33912000
Model Number33912000
NameEurosmart - 33912000
NBS DescriptionWater supply fittings for wash basins and troughs
NBS Object NameWashbasin taps
NBS Reference45-35-70/371
Operating Pressuremax 10 bar
Percentage of Recycled Content0
Product Documentation Linkwww.grohe.com/29439/product-catalogue/#!/search/33912000,1/G047/33912000//s%281%29
Product Page URLwww.grohe.com/29439/product-catalogue/#!/search/33912000,1/G047/33912000//s%281%29
Production Year2016
Spare Parts Listwww.grohe.com/29439/product-catalogue/#!/search/33912000,1/G047/33912000//s%281%29
Temp - Hot Water Supplymax 80°C
Temp - Hot Water Supply (Recommended)60°C
Test Pressure16 bar
Type CommentsSingle-lever sink mixer 1/2
Type NameSingle-lever sink mixer 1/2
URLwww.grohe.com
Vent ConnectionNo
Warranty InfomationN/A
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
Width52 mm
