Grohe Euroeco Special Single-Lever Basin Mixer - 32772000

3.4k
0
- / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

21/12/2015

Download BIM

Add to collection

Available for:

Euroeco SpecialSingle-lever basin mixerwall mountedGROHE StarLight® chrome finish GROHE SilkMove® 46 mm ceramic cartridgeGROHE EcoJoy® technology for less water and perfect flow swivel cast spout laminar flow straightener 9 l/min. adjustable minimum flow rate approx. 2.5 l/min adjustable flow rate limiter projection 222 mm metal lever lever length 170 mm temperature limiter without S-unions

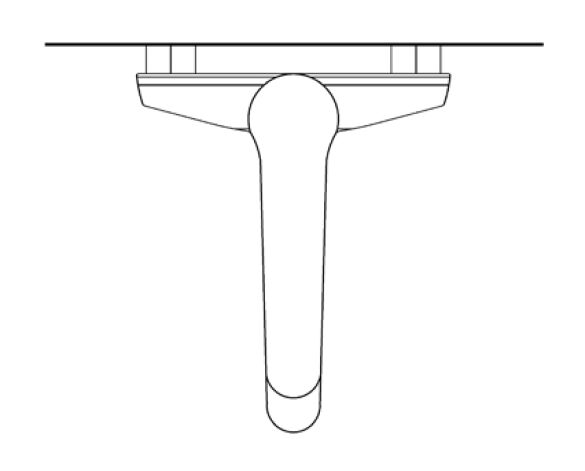

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

_authorized byConnor Laing
_BIMspec_GUID0
_created bybimstore
_current revision2
_distributed bywww.bimstore.co.uk
ADA CompliantYes
Assembly CodeC1030220
Asset TypeFixed
Classification NameUniclass2015
Classification ValuePr_40_20_87_98
Cold Water Connection Diameter10 mm
Cold Water Radius5 mm
ColorChrome
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnJuly 13 - Revised August 2015
CW ConnectionYes
CWFU4.5
Default Elevation600 mm
DescriptionWashing your hands with your hands free – this is the idea behind the wall-mounted Euroeco mixers. Wall-mounted installation keeps the basin free, and in order to reduce the risk of accidents caused by projecting parts, faucet levers and spouts are available in a choice of lengths.
Documentation Certificateswww.grohe.com/is/31437/project-business/special-faucets/special-single-lever-mixers/euroeco-special-slm/produktdetails/?product=32772-G284&color=000&material=32772000
Documentation Installation Guidewww.grohe.com/is/31437/project-business/special-faucets/special-single-lever-mixers/euroeco-special-slm/produktdetails/?product=32772-G284&color=000&material=32772000
Documentation Literaturecdn08.grohe.com/lib/1/tpi/1948997.pdf
Documentation Maintenancecdn08.grohe.com/lib/1/tpi/1769293.pdf
Documentation Technicalcdn08.grohe.com/lib/1/tpi/1597297.pdf
Duration UnitYears
EcojoyNo
Expected Life0
FinishChrome
Flow Pressuremin 0.5 bar/recommended 1 - 5 bar
Flow Rate8 L/min
Height0 mm
Hot Water Connection Diameter10 mm
Hot Water Radius5 mm
HW ConnectionYes
HWFU4.5
Industry StandardsN/A
KeynoteN13
Length0 mm
Low Emitting MaterialYes
ManufacturerGrohe AG
MaterialChrome
Mixing LeaverYes
ModelEuroeco Special - 32772000
Model Number32772000
NameEuroeco Special - 32772000
NBS DescriptionWater supply fittings for wash basins and troughs
NBS Object NameWashbasin taps
NBS Reference45-35-70/371
Operating Pressuremax 10 bar
Percentage of Recycled Content0
Product Documentation Linkcdn08.grohe.com/lib/1/tpi/1597297.pdf
Product Page URLwww.grohe.com/is/31437/project-business/special-faucets/special-single-lever-mixers/euroeco-special-slm/produktdetails/?product=32772-G284&color=000&material=32772000
Production Year2015
Spare Parts Listwww.grohe.com/is/31437/project-business/special-faucets/special-single-lever-mixers/euroeco-special-slm/produktdetails/?product=32772-G284&color=000&material=32772000&%7E%5Bajax%5D=44297
Temp - Hot Water Supplymax 80°C
Temp - Hot Water Supply (Recommended)60°C
Test Pressure16 bar
Type CommentsWash basin mixer wall mounted.
Type NameWash basin mixer wall mounted.
URLwww.grohe.com
Vent ConnectionNo
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
Width0 mm
