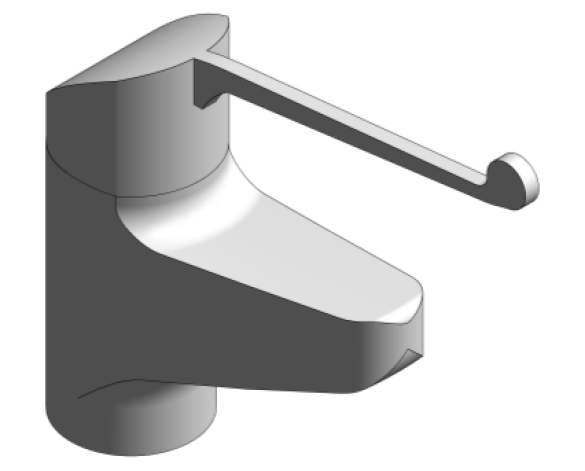

Grohe Euroeco Single Sequential Single-Lever Basin Mixer - 327890000

Description

Euroeco Single SequentialSingle-lever basin mixer 1/2"monobloc installationsmooth bodyGROHE StarLight® chrome finishGROHE EcoJoy® technology for less water and perfect flow ceramic cartridgeadjustable flow rate limiteradjustable minimum flow rate 6 l/min.laminar flow straightener 9 l/min.metal leverlever length 120 mmtemperature limiterrapid installation systemflexible connection hosesmin. recommended pressure 1.0 bar

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

Object Data

1 Revision

Last Updated

03/09/2015

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_BIMspec_GUID0
_created byConnor Laing
_created dateMarch 2015
_current revision2
_distributed bywww.bimstore.co.uk
Asset TypeFixed
Barcode0
Classification NameUniclass 2015
Classification ValuePr_40_20_87_98
Connection Diameter8 mm
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnMarch 2015
CW ConnectionYes
CWFU4.5
Default Elevation600 mm
DescriptionEuroeco Single Sequential
Documentation Certificateswww.grohe.co.uk/en_gb/euroeco-single-sequential-single-lever-basin-mixer-1-2-32789000.html
Documentation Installation Guidewww.grohe.co.uk/pim/profile/1000000/600000/00000/5000/100/120182.pdf
Documentation Literaturewww.grohe.co.uk/en_gb/euroeco-single-sequential-single-lever-basin-mixer-1-2-32789000.html
Documentation Technicalwww.grohe.co.uk/pim/profile/1000000/600000/00000/5000/100/120182.pdf
Duration UnitYears
EcojoyNo
Expected Life0
Faucet MaterialGrohe-Chrome
Flow Pressure1
Flow Rate1
HW ConnectionYes
HWFU4.5
Industry StandardsN/A
KeynoteN13
Low Emitting MaterialYes
ManufacturerGrohe Limited
Mixed Water Radius4 mm
ModelEuroeco Single Sequential
Model NumberEuroeco Single Sequential
NamePlumbing_Fixtures-Grohe-Europlus-OHM_sink_swivel_spout
NBS Object NameWater supply fittings for wash basins and troughs
NBS Reference45-35-70/371
Percentage of Recycled Content0
Product Page URLwww.grohe.co.uk/en_gb/euroeco-single-sequential-single-lever-basin-mixer-1-2-32789000.html
Serial Number0
Spare Parts Listwww.grohe.co.uk/en_gb/euroeco-single-sequential-single-lever-basin-mixer-1-2-32789000.html
Tag Number0
Temp - Hot Water Supply (Recommended)1
Type CommentsEuroeco Single Sequential
Type NameEuroeco Single Sequential
URLwww.grohe.com
Vent ConnectionNo
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
