Grohe Euroeco Single Lever Shower Mixer Wall Mounted - 32740000

2k
0
- / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

27/07/2016

Download BIM

Add to collection

Available for:

EuroecoSingle-lever shower mixer 1/2wall mountedmetal leverGROHE SilkMove® 46 mm ceramic cartridgeGROHE StarLight® chrome finishadjustable flow rate limitershower bottom outlet 1/2 with integrated non return-valveS-unionsmetal wall escutcheonsoptional temperature limiterprotected against backflowacoustic group I in accordance with DIN 4109

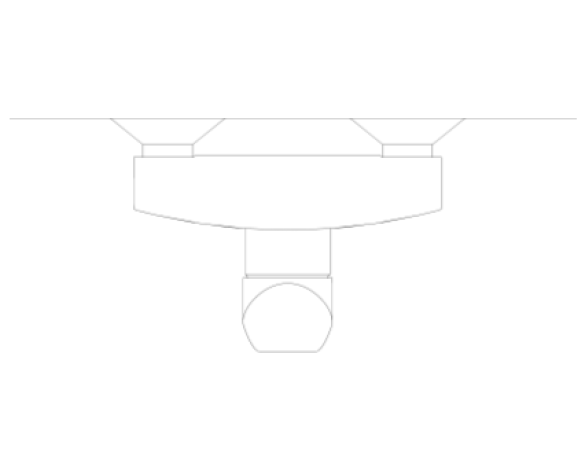

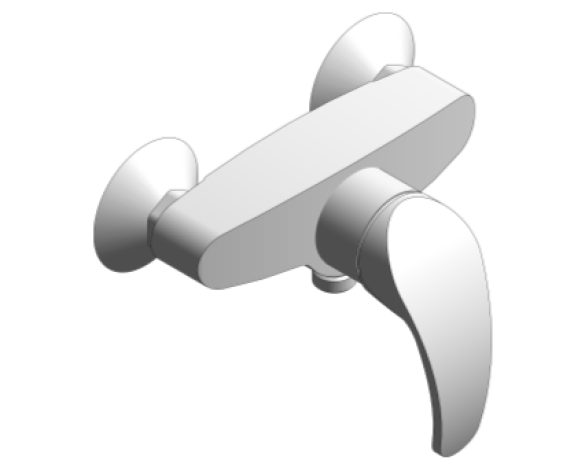

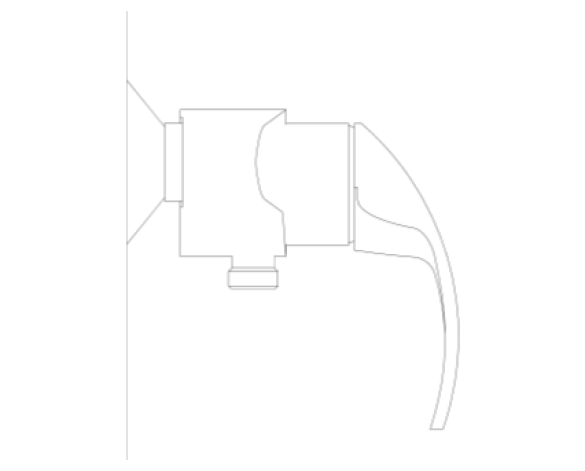

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

_authorized byKris Atkinson
_BIMspec_GUID0
_created byConnor Laing
_current revision1
_distributed bywww.bimstore.co.uk
ADA CompliantNo
Assembly CodeC1030220
Asset TypeFixed
Classification NameUniclass 2015
Classification ValuePr_40_20_87_78
Cold Water Connection Diameter10 mm
ColorChrome
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnJune 2016
CW ConnectionYes
CWFU4.5
Default Elevation600 mm
DescriptionEuroeco Single-lever shower mixer 1/2 wall mounted metal lever GROHE SilkMove® 46 mm ceramic cartridge GROHE StarLight® chrome finish adjustable flow rate limiter shower bottom outlet 1/2 with integrated non return-valve S-unions metal wall escutcheons optional temperature limiter protected against backflow acoustic group I in accordance with DIN 4109
Documentation Maintenancecdn08.grohe.com/lib/1/tpi/1948997.pdf
Documentation Technicalcdn08.grohe.com/lib/1/tpi/1795586.pdf
Duration UnitYears
EcojoyNo
Expected Life0
Faucet MaterialGrohe-Chrome
FeaturesGROHE SilkMove® 35 mm ceramic cartridge with Eco-Override-Stop with temperature limiter adjustable flow rate limiter. GROHE StarLight® chrome finish.
FinishChrome
Height130 mm
Hot Water Connection Diameter10 mm
HW ConnectionYes
HWFU4.5
Industry Standardsn/a
KeynoteN13
Length156 mm
Low Emitting MaterialNo
ManufacturerGrohe Limited
Masterformat Number01 52 19
Masterformat TitleSanitary Facilities
MaterialChrome
ModelEuroeco - Single-Lever Shower Mixer
Model NumberEuroeco - 32740000
NBS DescriptionShower mixers;
NBS Object NameShower mixers;
NBS Reference45-35-70/335
Product Documentation Linkwww.grohe.com/30898/search/search-result/product-details/?product=32172-G411&color=002&material=32172002
Product Page URLwww.grohe.com/30898/search/search-result/product-details/?product=32172-G411&color=002&material=32172002
Production Year2016
Size220x156x130mm
Type CommentsEuroeco - 32740000
Type NameEuroeco - Single-Lever Shower Mixer
URLwww.grohe.com
Vent ConnectionNo
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
Width220 mm
