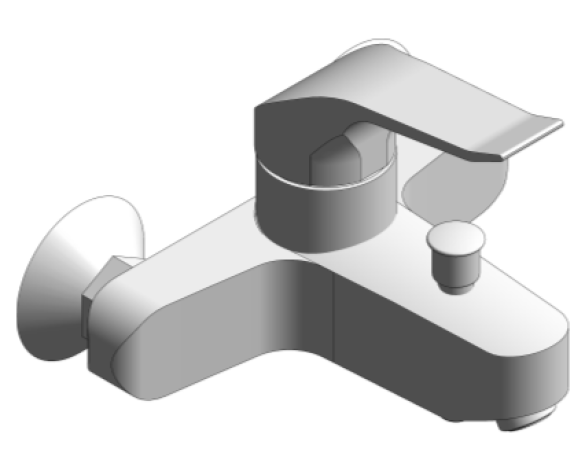

Grohe Euroeco Single Lever Bath Mixer Wall Mounted - 26318001

2.1k
0
- / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

28/07/2016

Download BIM

Add to collection

Available for:

Euroeco Single-lever bath mixer 1/2" wall mounted metal leverGROHE SilkMove® 46 mm ceramic cartridgeGROHE StarLight® chrome finishadjustable flow rate limiterautomatic diverter: bath/showermousseurintegrated non-return valve in the shower outlet 1/2"S-unionsmetal wall escutcheonsoptional temperature limiter ref. no. 46 308protected against backflowacoustic group I in accordance with DIN 4109

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

_BIMspec_GUID0
_created byConnor Laing
_created dateJune 2016
_current revision2
_distributed bywww.bimstore.co.uk
ADA CompliantYes
Assembly CodeC1030220
Asset TypeFixed
Barcode0
Classification NameUniclass 2015
Classification ValuePr_40_20_87_98
Cold Water Connection Diameter10 mm
Cold Water Radius5 mm
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnJune 2016
CW ConnectionYes
CWFU4.5
Default Elevation600 mm
DescriptionWashing your hands with your hands free – this is the idea behind the wall-mounted Euroeco mixers. Wall-mounted installation keeps the basin free, and in order to reduce the risk of accidents caused by projecting parts, faucet levers and spouts are available in a choice of lengths.
Documentation Certificateswww.grohe.com/29439/product-catalogue/#!/search/32743000,1/G260/32743000//s%281%29
Documentation Installation Guidewww.grohe.com/29439/product-catalogue/#!/search/32743000,1/G260/32743000//s%281%29
Documentation Literaturewww.grohe.com/29439/product-catalogue/#!/search/32743000,1/G260/32743000//s%281%29
Documentation Maintenancewww.grohe.com/29439/product-catalogue/#!/search/32743000,1/G260/32743000//s%281%29
Documentation Technicalwww.grohe.com/29439/product-catalogue/#!/search/32743000,1/G260/32743000//s%281%29
Duration UnitYears
EcojoyNo
Expected Life0
Flow Pressuremin 0.5 bar/recommended 1 - 5 bar
Flow Rate8 L/min
Hot Water Connection Diameter10 mm
Hot Water Radius5 mm
HW ConnectionYes
HWFU4.5
Industry StandardsN/A
KeynoteN13
Low Emitting MaterialYes
Maintenance Informationprojects.grohe.com/lib/1/tpi/1734224.pdf
ManufacturerGrohe AG
MaterialGrohe-Chrome
Mixing LeaverYes
ModelEuroeco Single-lever bath mixer 1/2 wall mounted - 26318001
Model NumberEuroeco Single-lever bath mixer 1/2 wall mounted - 26318001
NameEuroeco Single-lever bath mixer 1/2 wall mounted - 26318001
NBS Object NameWater supply fittings for wash basins and troughs
NBS Reference45-35-70/371
Operating Pressuremax 10 bar
Percentage of Recycled Content0
Product Page URLwww.grohe.com/29439/product-catalogue/#!/search/32743000,1/G260/32743000//s%281%29
Serial Number0
Spare Parts Listwww.grohe.com/29439/product-catalogue/#!/search/32743000,1/G260/32743000//s%281%29
Spare Partswww.grohe.co.uk/en_gb/euroeco-single-sequential-single-lever-basin-mixer-1-2-32793000.html
Tag Number0
Temp - Hot Water Supplymax 80°C
Temp - Hot Water Supply (Recommended)60°C
Test Pressure16 bar
Type CommentsWash basin mixer wall mounted.
Type NameEuroeco Single-lever bath mixer 1/2 wall mounted - 26318001
URLwww.grohe.com
Vent ConnectionNo
Warranty InfomationN/A
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
