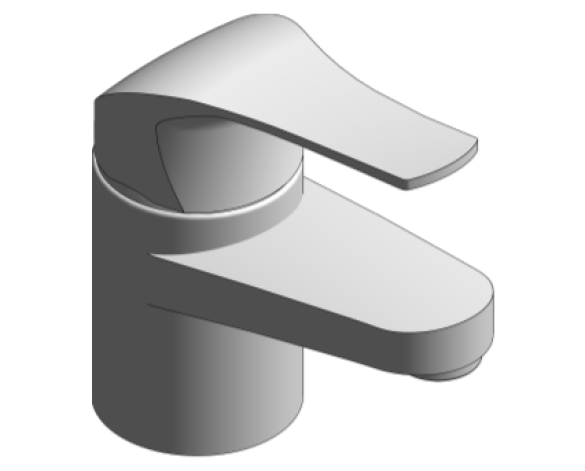

Grohe Euroeco Single Lever Basin Mixer - 32881000

Description

EuroecoSingle-lever basin mixer 1/2S-Sizesingle hole installationmetal leverGROHE SilkMove® 35 mm ceramic cartridgeGROHE StarLight® chrome finishrapid installation systemflow limiter 9 l/min.mousseurretractable chainflexible connection hosesoptional temperature limiter ref. no. 46 375 000acoustic group I in accordance with DIN 4109e.

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

Object Data

1 Revision

Last Updated

27/07/2016

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_authorized byKris Atkinson
_BIMspec_GUID0
_created byConnor Laing
_current revision1
_distributed bywww.bimstore.co.uk
ADA CompliantNo
Assembly CodeC1030220
Asset TypeFixed
Classification NameUniclass 2015
Classification ValuePr_40_20_87_96
Cold Water Connection Diameter10 mm
ColorChrome
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnJune 2016
CW ConnectionYes
CWFU4.5
Default Elevation600 mm
DescriptionEuroeco Single-lever basin mixer 1/2 S-Size single hole installation metal lever GROHE SilkMove® 35 mm ceramic cartridge GROHE StarLight® chrome finish rapid installation system flow limiter 9 l/min. mousseur retractable chain flexible connection hoses optional temperature limiter ref. no. 46 375 000 acoustic group I in accordance with DIN 4109
Documentation Technicalwww.grohe.com/29439/product-catalogue/#!/search/32881000,1/G260/32881000//s%281%29
Duration UnitYears
EcojoyYes
Expected Life0
Faucet MaterialGrohe-Chrome
FeaturesGROHE SilkMove® 35 mm ceramic cartridge with temperature limiter. GROHE StarLight® chrome finish. GROHE EcoJoy® mousseur 5.7 l/min. GROHE QuickFix® installation system
FinishChrome
Flow0 L/s
Hot Water Connection Diameter10 mm
HW ConnectionYes
HWFU4.5
Industry Standardsn/a
KeynoteN13
Low Emitting MaterialNo
ManufacturerGrohe Limited
Masterformat Number01 52 19
Masterformat TitleSanitary Facilities
MaterialChrome
ModelEuroeco Single-lever basin mixer 1/2 S-Size - 2881000
Model NumberEuroeco Single-lever basin mixer 1/2 S-Size single hole installation metal lever GROHE SilkMove® 35 mm ceramic cartridge GROHE StarLight® chrome finish rapid installation system flow limiter 9 l/min. mousseur retractable chain flexible connection hoses optional temperature limiter ref. no. 46 375 000 acoustic group I in accordance with DIN 4109
NBS DescriptionWater supply fittings for wash basins and troughs;
NBS Object NameWater supply fittings for wash basins and troughs;
NBS Reference45-35-70/371
Product Documentation Linkwww.grohe.com/29439/product-catalogue/#!/search/32881000,1/G260/32881000//s%281%29
Product Page URLwww.grohe.com/29439/product-catalogue/#!/search/32881000,1/G260/32881000//s%281%29
Production Year2016
Type CommentsEuroeco Single-lever basin mixer 1/2 S-Size single hole installation metal lever GROHE SilkMove® 35 mm ceramic cartridge GROHE StarLight® chrome finish rapid installation system flow limiter 9 l/min. mousseur retractable chain flexible connection hoses optional temperature limiter ref. no. 46 375 000 acoustic group I in accordance with DIN 4109
Type NameEuroeco Single-lever basin mixer 1/2 S-Size - 2881000
URLwww.grohe.com
Vent ConnectionNo
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
