Grohe Euroeco Single Lever Basin Mixer - 32778000

Description

Euroeco Special Single-lever basin mixer 1/2wall mountedGROHE StarLight® chrome finishGROHE SilkMove® 46 mm ceramic cartridgeGROHE EcoJoy® technology for less water and perfect flowadjustable flow rate limiteradjustable temperature limiteradjustable minimum flow rate approx. 2.5 l/minlaminar flow straightener 9 l/min.cast spoutprojection 205 mmmetal leverlever length 170 mmS-unions

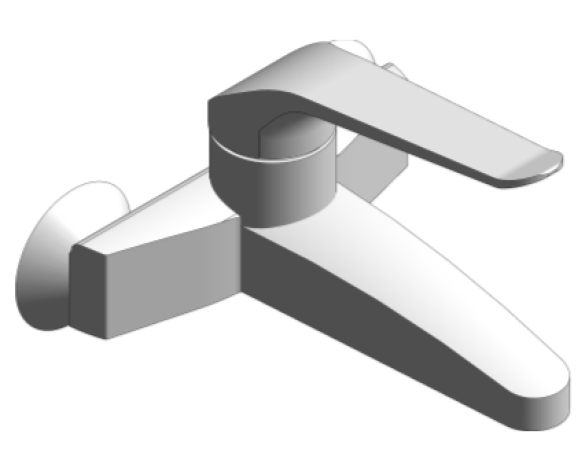

This download contains a plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2015 for use in MEP systems and is in line with 2015 industry standards.

Object Data

1 Revision

Last Updated

12/07/2018

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_BIMspec_GUID0
_created byConnor Laing
_created dateJune 2016
_current revision1
_distributed bywww.bimstore.co.uk
ADA CompliantYes
Assembly CodeC1030220
Asset TypeFixed
Barcode0
Classification NameUniclass 2015
Classification ValuePr_40_20_87_98
Cold Water Connection Diameter10 mm
Cold Water Radius5 mm
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnJune 2016
CW ConnectionYes
CWFU4.5
Default Elevation600 mm
DescriptionEuroeco Special Single-lever basin mixer 1/2 wall mounted GROHE StarLight® chrome finish GROHE SilkMove® 46 mm ceramic cartridge GROHE EcoJoy® technology for less water and perfect flow adjustable flow rate limiter adjustable temperature limiter adjustable minimum flow rate approx. 2.5 l/min laminar flow straightener 9 l/min. cast spout projection 205 mm metal lever lever length 170 mm S-unions
Documentation Technicalwww.grohe.com/29439/product-catalogue/#!/search/32778000,1/G284/32778000//s%281%29
Duration UnitYears
EcojoyNo
Expected Life0
Flow Pressuremin 0.5 bar/recommended 1 - 5 bar
Flow Rate8 L/min
Hot Water Connection Diameter10 mm
Hot Water Radius5 mm
HW ConnectionYes
HWFU4.5
Industry StandardsN/A
KeynoteN13
Low Emitting MaterialYes
Maintenance Informationwww.grohe.com/29439/product-catalogue/#!/search/32778000,1/G284/32778000//s%281%29
ManufacturerGrohe AG
MaterialGrohe-Chrome
Mixing LeaverYes
Modeleuroeco-special_single-lever-basin-mixer_wall-mounted_32778000
Model Numbereuroeco-special_single-lever-basin-mixer_wall-mounted_32778000
Nameeuroeco-special_single-lever-basin-mixer_wall-mounted_32778000
NBS Object NameWater supply fittings for wash basins and troughs
NBS Reference45-35-70/371
Operating Pressuremax 10 bar
Percentage of Recycled Content0
Product Page URLwww.grohe.com/29439/product-catalogue/#!/search/32778000,1/G284/32778000//s%281%29
Serial Number0
Spare Partswww.grohe.co.uk/en_gb/euroeco-single-sequential-single-lever-basin-mixer-1-2-32793000.html
Tag Number0
Temp - Hot Water Supplymax 80°C
Temp - Hot Water Supply (Recommended)60°C
Test Pressure16 bar
Type CommentsWash basin mixer wall mounted.
Type Nameeuroeco-special_single-lever-basin-mixer_wall-mounted_32778000
URLwww.grohe.com
Vent ConnectionNo
Warranty InfomationN/A
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
