Grohe Euroeco Sequential Single-Lever Basin Mixer - 32794000

by GROHE

Download Add to collection

Description

Euroeco Single SequentialSingle-lever basin mixer 1/2"wall mountedGROHE StarLight® chrome finishGROHE EcoJoy® technology for less water and perfect flow ceramic cartridgeadjustable flow rate limiteradjustable minimum flow rate 6 l/min.cast spout with flow straightener 9 l/min.projection 156 mmmetal leverlever length 120 mmtemperature limiterS-unionsmin. recommended pressure 1.0 bar

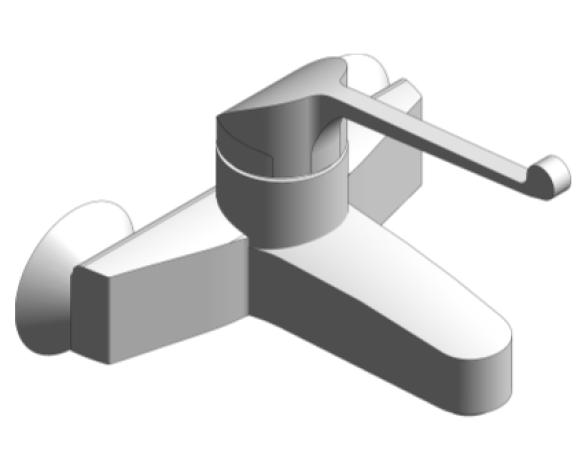

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

Object Data

1 Revision

Last Updated

03/09/2015

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_BIMspec_GUID0
_created byConnor Laing
_created dateFebruary 2015
_current revision2
_distributed bywww.bimstore.co.uk
ADA CompliantYes
Assembly CodeC1030220
Asset TypeFixed
Barcode0
Classification NameUniclass 2015
Classification ValuePr_40_20_87_98
Cold Water Connection Diameter10 mm
Cold Water Radius5 mm
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnFebruary 2015
CW ConnectionYes
CWFU4.5
Default Elevation600 mm
DescriptionWashing your hands with your hands free – this is the idea behind the wall-mounted Euroeco mixers. Wall-mounted installation keeps the basin free, and in order to reduce the risk of accidents caused by projecting parts, faucet levers and spouts are available in a choice of lengths.
Documentation Certificateswww.grohe.com/30898/search/search-result/product-details/?product=32794-G284&color=000&material=32794000
Documentation Installation Guidecdn08.grohe.com/lib/1/tpi/1597261.pdf
Documentation Literaturewww.grohe.com/30898/search/search-result/product-details/?product=32794-G284&color=000&material=32794000
Documentation Maintenancecdn08.grohe.com/lib/1/tpi/1597261.pdf
Documentation Technicalcdn08.grohe.com/lib/1/tpi/1597261.pdf
Duration UnitYears
EcojoyNo
Expected Life0
Flow Pressuremin 0.5 bar/recommended 1 - 5 bar
Flow Rate8 L/min
Hot Water Connection Diameter10 mm
Hot Water Radius5 mm
HW ConnectionYes
HWFU4.5
Industry StandardsN/A
KeynoteN13
Low Emitting MaterialYes
Maintenance Informationprojects.grohe.com/lib/1/tpi/1734224.pdf
ManufacturerGrohe AG
MaterialGrohe-Chrome
Mixing LeaverYes
ModelEuroeco Special/SSC
Model NumberEuroeco Special/SSC
NameEuroeco Special/SSC
NBS Object NameWater supply fittings for wash basins and troughs
NBS Reference45-35-70/371
Operating Pressuremax 10 bar
Percentage of Recycled Content0
Product Page URLwww.grohe.com/30898/search/search-result/product-details/?product=32794-G284&color=000&material=32794000
Serial Number0
Spare Parts Listwww.grohe.com/30898/search/search-result/product-details/?product=32794-G284&color=000&material=32794000
Spare Partswww.grohe.co.uk/en_gb/euroeco-single-sequential-single-lever-basin-mixer-1-2-32793000.html
Tag Number0
Temp - Hot Water Supplymax 80°C
Temp - Hot Water Supply (Recommended)60°C
Test Pressure16 bar
Type CommentsWash basin mixer wall mounted.
Type NameEuroeco Special/SSC
URLwww.grohe.com
Vent ConnectionNo
Warranty InfomationN/A
Warranty Duration UnitYears
Waste ConnectionNo
WFU0

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
