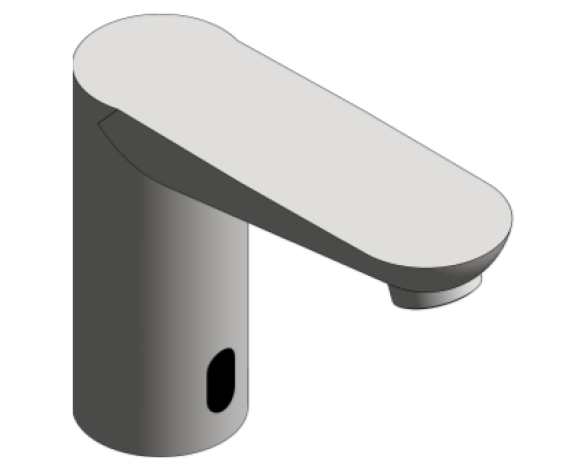

Grohe Euroeco Basin Mixer - 36384000

Object metadata

• _AuthorRyan Lashley
• _Authorized ByKris Atkinson
• _Bim Spec Guid0
• _BS Bible Version14
• _Created Bywww.bimstore.co.uk
• _Current Revision1
• _Distributed Bywww.bimstore.co.uk
• Accessibility Performancen/a
• ADA CompliantNo
• Assembly CodeD2010
• Asset TypeFixed
• BIM Object NamePlumbingFixture_GroheLimited_BasinMixer_36384000_METRIC
• Classification NameUniclass2015
• Classification ValuePr_40_20_87_82
• Code Performancen/a
• Cold Water Connection Diameter10 mm
• ColorChrome
• Constituentsn/a
• Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - Email: info-uk@grohe.com
• Created Byinfo-uk@grohe.com
• Created On2017-05-08T00:00:00
• CW ConnectionYes
• CWFU4.5
• Default Elevation0 mm
• Descriptioninfra-red electronic basin tap 1/2". without mixing device. with infrared sensor for bi-directional communication. for monitoring, configuration and servicing. including Powerbox self-generating power system. GROHE EcoJoy 6.0 l/min mousseur. flexible connection hose. dirt strainer. rapid installation system. Powerbox. power generator with water turbine. internal energy saving unit. with use of 60 s/24 h stand-by, 260 s/100 h stand-by. with additional backup power. 7 pre-set programs. auto flush. thermal disinfection. cleaning mode. additional functions and precise settings. by remote control 36 407.
• Documentation Certificatesn/a
• Documentation Installation Guiden/a
• Documentation Literaturen/a
• Documentation Maintenancen/a
• Documentation Technicaln/a
• Duration UnitYears
• EcojoyNo
• Expected Life0
• Featuresinfra-red electronic basin tap 1/2". without mixing device. with infrared sensor for bi-directional communication. for monitoring, configuration and servicing. including Powerbox self-generating power system. GROHE EcoJoy 6.0 l/min mousseur. flexible connection hose. dirt strainer. rapid installation system. Powerbox. power generator with water turbine. internal energy saving unit. with use of 60 s/24 h stand-by, 260 s/100 h stand-by. with additional backup power. 7 pre-set programs. auto flush. thermal disinfection. cleaning mode. additional functions and precise settings. by remote control 36 407.
• FinishChrome
• Graden/a
• Hot Water Connection Diameter10 mm
• HW ConnectionYes
• HWFU4.5
• Ifc Export AsIfcPipeFitting
• Ifc Export TypeIfcPipeFittingType
• Industry Standardsn/a
• KeynoteN13
• LEED Creditn/a
• Low Emitting MaterialNo
• ManufacturerGrohe Limited
• Manufacturer NameGrohe Limited
• Masterformat Number01 52 19
• Masterformat TitleSanitary Facilities
• MaterialChrome
• ModelEuroeco Cosmopolitan E Powerbox
• Model Number36384000
• Model ReferenceEuroeco Cosmopolitan E Powerbox
• NBS DescriptionWater supply fittings for sinks
• NBS Object NameGrohe Limited - Water supply fittings for sinks
• NBS Office Master Tagn/a
• NBS Reference45-35-70/345
• Nominal Depth0 mm
• Nominal Height0 mm
• Nominal Length0 mm
• Percentage Of Recycled Contentn/a
• Primary MaterialGrohe-Chrome-Polished
• Product Documentation Linkwww.grohe.co.uk/en_gb/euroeco-ce-powerbox-36384000.html
• Production Year2017
• Product Page URLwww.grohe.co.uk/en_gb/euroeco-ce-powerbox-36384000.html
• Referenced Standardn/a
• Replacement Costn/a
• Shapen/a
• Sizen/a
• Spare Partsn/a
• Type Comments36384000
• Type NameEuroeco Cosmopolitan E Powerbox
• URLwww.grohe.com
• Vent ConnectionNo
• Warranty Descriptionn/a
• Warranty Duration Laborn/a
• Warranty Duration Partsn/a
• Warranty Duration UnitYears
• Warranty Guarantor Laborinfo-uk@grohe.com
• Warranty Guarantor Partsinfo-uk@grohe.com
• Waste ConnectionNo
• WFU0
