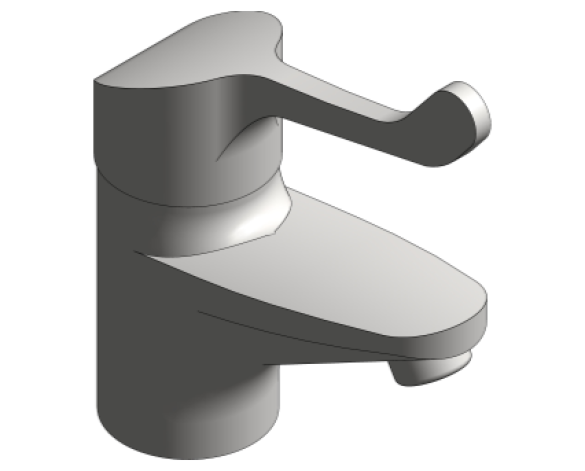

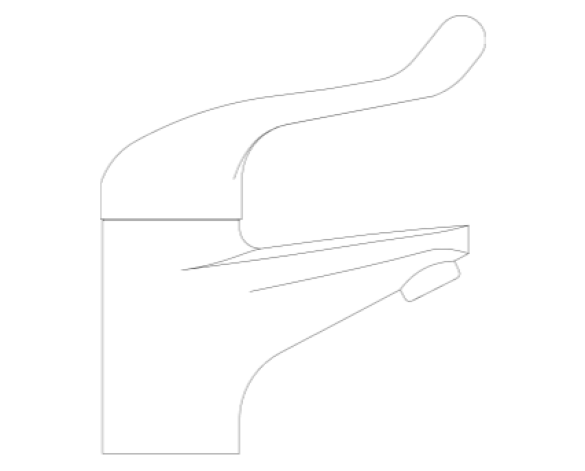

Grohe Euroeco Basin Mixer - 32789000

by GROHE

Download Add to collection

Description

monobloc installationsmooth bodyGROHE StarLight chrome finishGROHE EcoJoy technology for less water and perfect flowceramic cartridgeadjustable flow rate limiteradjustable temperature limiteradjustable minimum flow rate 6 l/min.laminar flow straightener 9 l/min.metal lever , lever length 120 mmrapid installation systemflexible connection hoses ,

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2015 for use in MEP systems and is in line with 2015 industry standards.

Object Data

1 Revision

Last Updated

24/05/2017

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_AuthorRyan Lashley
_Authorized ByKris Atkinson
_Bim Spec Guid0
_BS Bible Version14
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
ADA CompliantNo
Assembly CodeD2010
Asset TypeFixed
BIM Object NamePlumbingFixture_GroheLimited_BasinMixer_32789000_METRIC
Classification NameUniclass2015
Classification ValuePr_40_20_87_82
Code Performancen/a
Cold Water Connection Diameter10 mm
ColorChrome
Constituentsn/a
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - Email: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created On2017-05-08T00:00:00
CW ConnectionYes
CWFU4.5
Default Elevation0 mm
Descriptionmonobloc installation. smooth body. GROHE StarLight chrome finish. GROHE EcoJoy technology for less water and perfect flow. ceramic cartridge. adjustable flow rate limiter. adjustable temperature limiter. adjustable minimum flow rate 6 l/min. laminar flow straightener 9 l/min. metal lever , lever length 120 mm. rapid installation system. flexible connection hoses.
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturen/a
Documentation Maintenancen/a
Documentation Technicaln/a
Duration UnitYears
EcojoyNo
Expected Life0
Featuresmonobloc installation. smooth body. GROHE StarLight chrome finish. GROHE EcoJoy technology for less water and perfect flow. ceramic cartridge. adjustable flow rate limiter. adjustable temperature limiter. adjustable minimum flow rate 6 l/min. laminar flow straightener 9 l/min. metal lever , lever length 120 mm. rapid installation system. flexible connection hoses.
FinishChrome
Graden/a
Hot Water Connection Diameter10 mm
HW ConnectionYes
HWFU4.5
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
Industry Standardsn/a
KeynoteN13
LEED Creditn/a
Low Emitting MaterialNo
ManufacturerGrohe Limited
Manufacturer NameGrohe Limited
Masterformat Number01 52 19
Masterformat TitleSanitary Facilities
MaterialChrome
ModelEuroeco Single Sequential Single-lever basin mixer 1/2"
Model Number32789000
Model ReferenceEuroeco Single Sequential Single-lever basin mixer 1/2"
NBS DescriptionWater supply fittings for sinks
NBS Object NameGrohe Limited - Water supply fittings for sinks
NBS Office Master Tagn/a
NBS Reference45-35-70/345
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Percentage Of Recycled Contentn/a
Primary MaterialGrohe-Chrome-Polished
Product Documentation Linkwww.grohe.co.uk/en_gb/single-lever-basin-mixer-1-2-32789000.html
Production Year2017
Product Page URLwww.grohe.co.uk/en_gb/single-lever-basin-mixer-1-2-32789000.html
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsn/a
Type Comments32789000
Type NameEuroeco Single Sequential Single-lever basin mixer 1/2"
URLwww.grohe.com
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com
Waste ConnectionNo
WFU0
