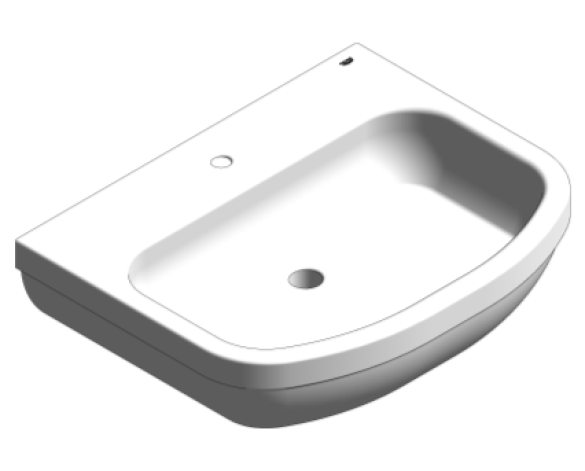

Grohe Euro Ceramic - Washbasin Wall Hung 65 - 39323000

Description

Euro Ceramic washbasin wall hung 65Optional Proguard & HyperClean (00H)Vitreous chinaAlpine White1hole punched with overflow650 x 515 mm18 pcs per pallet

This download contains a plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2015 for use in MEP systems and is in line with 2015 industry standards.

Object Data

1 Revision

Last Updated

31/07/2017

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_AuthorIan Holmes
_Authorized ByKris Atkinson
_Bim Spec Guid0
_BS Bible Version14
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
ADA CompliantNo
Assembly CodeD2010
Asset TypeFixed
BIM Object NamePlumbingFixture_GroheLimited_EuroCeramicWashBasin_39323000_METRIC
Classification NameUniclass2015
Classification ValuePr_40_20_96_15
Code Performancen/a
Cold Water Connection Diameter10 mm
ColorWhite
Constituentsn/a
Created Byinfo-uk@grohe.com
Created On2017-07-01T09:00:00
CW ConnectionNo
CWFU4.5
DescriptionEuro Ceramic washbasin wall hung 65, Optional Proguard & HyperClean (00H), Vitreous china, Alpine White, 1hole punched with overflow, 650 x 515 mm, 18 pcs per pallet
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturen/a
Documentation Maintenancen/a
Documentation Technicaln/a
Duration UnitYears
EcojoyNo
Expected Life0
FeaturesEuro Ceramic washbasin wall hung 65, Optional Proguard & HyperClean (00H), Vitreous china, Alpine White, 1hole punched with overflow, 650 x 515 mm, 18 pcs per pallet
FinishCeramic
Graden/a
Hot Water Connection Diameter10 mm
HW ConnectionNo
HWFU4.5
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
Industry Standardsn/a
KeynoteN13
LEED Creditn/a
Low Emitting MaterialNo
ManufacturerGrohe Limited
Manufacturer NameGrohe Limited
Masterformat Number01 52 19
Masterformat TitleSanitary Facilities
MaterialCeramic
ModelEuro Ceramic washbasin wall hung 65
Model Number39323000
Model ReferenceEuro Ceramic washbasin wall hung 65
NBS DescriptionCeramic sinks
NBS Object NameGrohe Limited - Ceramic sinks
NBS Office Master Tagn/a
NBS Reference45-35-70/340
Nominal Depth514 mm
Nominal Height149 mm
Nominal Length649 mm
Percentage Of Recycled Contentn/a
Primary MaterialCeramic, White
Product Documentation Linkcdn.cloud.grohe.com/dimdraw/2000/2000/2090/2096/2096370/1500/2096370.jpg
Production Year2017
Product Page URLwww.grohe.co.uk/en_gb/euro-ceramic-wash-basin-65-39323000.html
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsn/a
Type Comments39323000
Type NameEuro Ceramic washbasin wall hung 65
URLwww.grohe.com
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com
Waste ConnectionYes
WFU0
