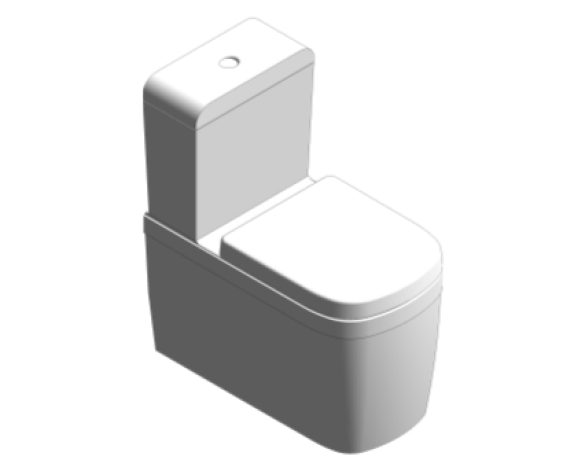

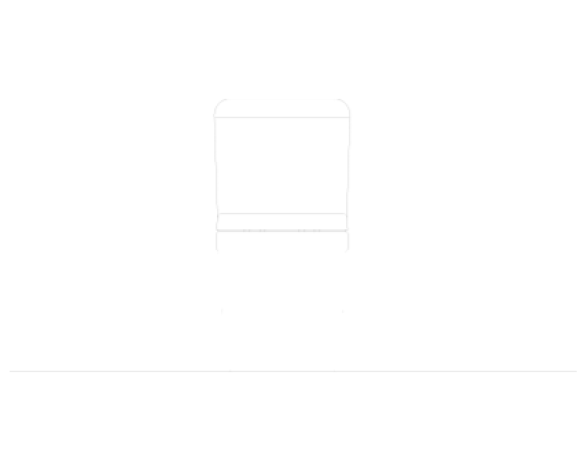

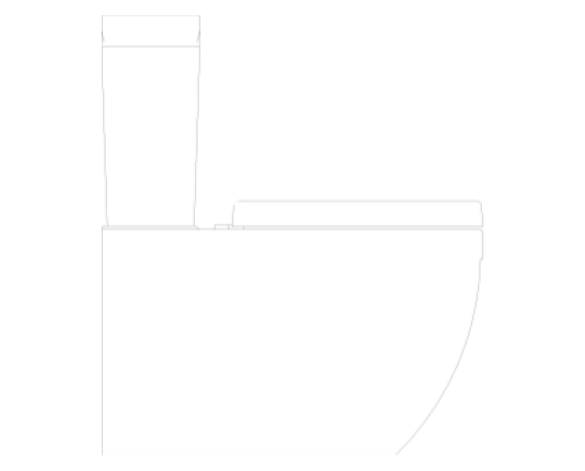

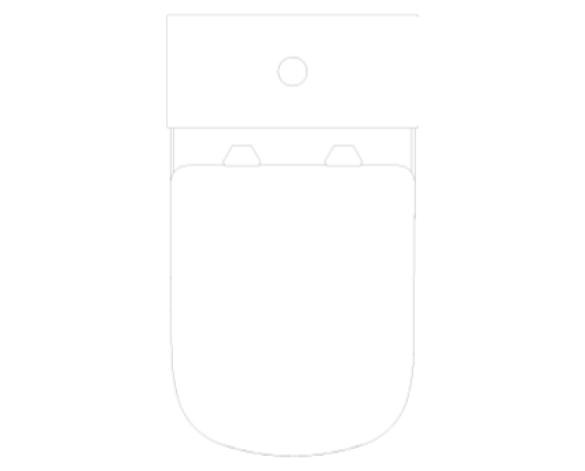

Grohe Euro Ceramic - Floor Standing WC Universal Trap - 39338000

Description

Euro Ceramic floorstanding 2 piece (close couple) WC universal trap (for horizontal & vertical outlet)Triple vortexRimlessFlushing volume 5/ 3LOptional Proguard & HyperClean (00H)Incl. fixation set (L bracket)Cistern be ordered seperatlyVitreous chinaAlpine White9 pcs per pallet

This download contains a plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2015 for use in MEP systems and is in line with 2015 industry standards.

Object Data

1 Revision

Last Updated

25/08/2017

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_AuthorIan Holmes
_Authorized ByKris Atkinson
_Bim Spec Guid0
_BS Bible Version14
_Created Bywww.bimstore.co.uk
_Current Revision0
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
ADA CompliantNo
Assembly CodeD2010
Asset TypeFixed
BIM Object NamePlumbingFixture_GroheLimited_EuroCeramicFloorStandingWC_39338000_METRIC
Classification NameUniclass2015
Classification ValuePr_40_20_93_94
Code Performancen/a
Cold Water Connection Diameter10 mm
ColorWhite
Constituentsn/a
Created Byinfo-uk@grohe.com
Created On2017-08-01T09:00:00
CW ConnectionNo
CWFU4.5
Descriptionclose coupled. universal trap for horizontal and vertical outlet. Triple Vortex. rimless. flush volume 5/3 l. including fixation set. (L bracket). cistern to be ordered separately. vitreous China. optional: Proguard and HyperClean (00H).
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturen/a
Documentation Maintenancen/a
Documentation Technicaln/a
Duration UnitYears
EcojoyNo
Expected Life0
Featuresclose coupled. universal trap for horizontal and vertical outlet. Triple Vortex. rimless. flush volume 5/3 l. including fixation set. (L bracket). cistern to be ordered separately. vitreous China. optional: Proguard and HyperClean (00H).
FinishCeramic
Grade2017
Hot Water Connection Diameter10 mm
HW ConnectionNo
HWFU4.5
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
Industry Standardsn/a
KeynoteN13
LEED Creditn/a
Low Emitting MaterialNo
ManufacturerGrohe Limited
Manufacturer NameGrohe Limited
Masterformat Number01 52 19
Masterformat TitleSanitary Facilities
MaterialCeramic
ModelEuro Ceramic floorstanding 2 piece (close couple) WC universal trap
Model Number39338000
Model ReferenceEuro Ceramic floorstanding 2 piece (close couple) WC universal trap
NBS DescriptionWC pans
NBS Object NameGrohe Limited - WC pans
NBS Office Master Tagn/a
NBS Reference45-35-70/384
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Percentage Of Recycled Contentn/a
Primary MaterialCeramic, White
Product Documentation Linkwww.grohe.co.uk/en_gb/euro-ceramic-floor-standing-2-piece-wc-39338000.html
Production Year2017
Product Page URLwww.grohe.co.uk/en_gb/euro-ceramic-floor-standing-2-piece-wc-39338000.html
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsn/a
Type Comments39338000
Type NameEuro Ceramic floorstanding 2 piece (close couple) WC universal trap
URLwww.grohe.com
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com
Waste ConnectionYes
WFU0
