Grohe Euphoria - 110 Shower Rail - 27225001

3.6k
0
- / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

30/03/2016

Download BIM

Add to collection

Available for:

GROHE EasyReach tray (27 596 000).

GROHE DreamSpray® perfect spray pattern.

GROHE SprayDimmer (Stepless flow rate reduction).

GROHE StarLight® chrome finish.

GROHE QuickFix® (upper bracket adjustable for adaption to existing drilling holes)

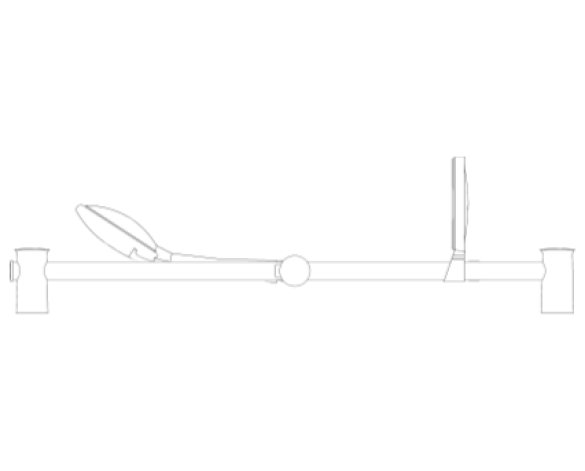

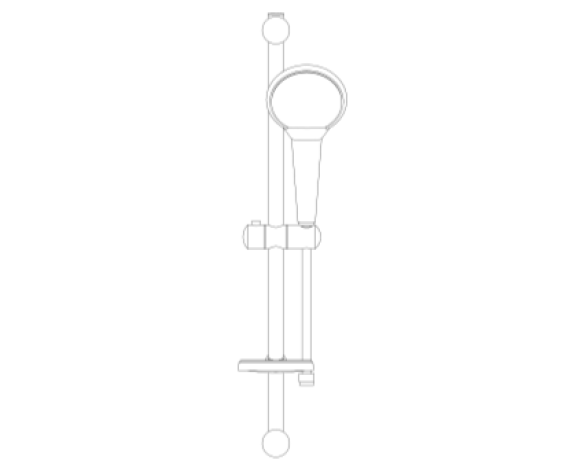

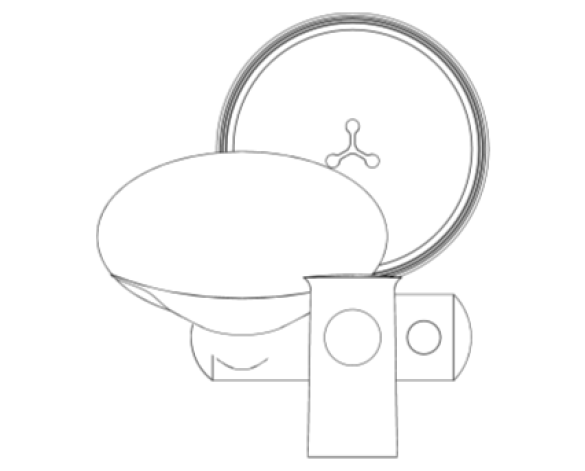

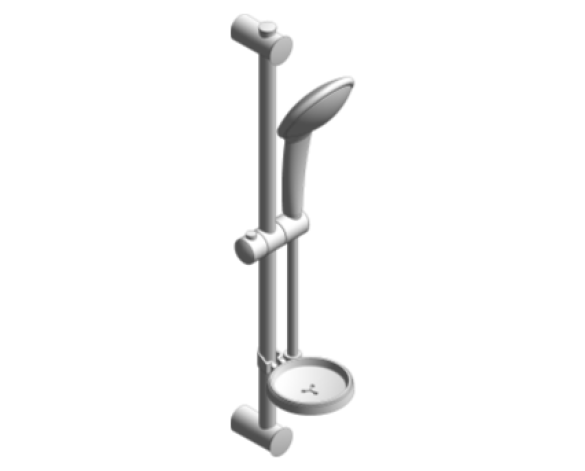

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

_authorized byKris Atkinson
_BIMspec_GUID0
_created byRyan Lashley
_current revision1
_distributed bywww.bimstore.co.uk
ADA CompliantNo
Assembly CodeC1030220
Asset TypeFixed
Classification NameUniclass 2015
Classification ValuePr_40_20_87_78
Cold Water Connection Diameter10 mm
ColorChrome
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnMarch 2016
CW ConnectionYes
CWFU4.5
Default Elevation600 mm
DescriptionEuphoria 110 Duo. Shower rail set 2 sprays. consisting of: hand shower Duo (27 220 000), shower rail 900 mm (27 500 000), Silverflex shower hose 1750 mm (28 388 000). SpeedClean anti-lime system. Inner WaterGuide for a longer life. Twistfree to prevent hose from twisting. min. recommended pressure 1.0 bar

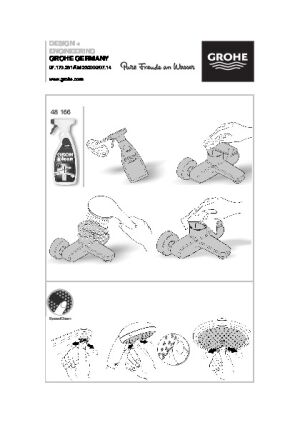

Documentation Maintenanced3unq1hljpybmw.cloudfront.net/tpi/1000/1900/1940/1948/1948997/original/1948997.pdf

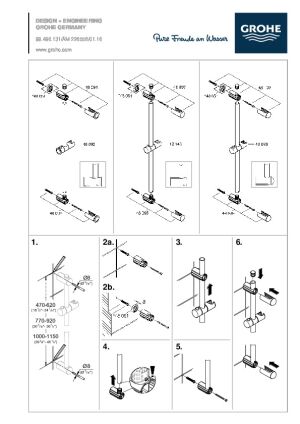

Documentation Technicald3unq1hljpybmw.cloudfront.net/tpi/1000/1900/1990/1995/1995873/original/1995873.pdf
Duration UnitYears
EcojoyNo
Expected Life0
Faucet MaterialGrohe-Chrome
FeaturesGROHE EasyReach tray (27 596 000). GROHE DreamSpray® perfect spray pattern. GROHE SprayDimmer (Stepless flow rate reduction). GROHE StarLight® chrome finish. GROHE QuickFix® (upper bracket adjustable for adaption to existing drilling holes)
FinishChrome
Hot Water Connection Diameter10 mm
HW ConnectionYes
HWFU4.5
Industry Standardsn/a
KeynoteN13
Low Emitting MaterialNo
ManufacturerGrohe Limited
Masterformat Number01 52 19
Masterformat TitleSanitary Facilities
MaterialChrome
ModelEuphoria - 110 Shower Rail
Model NumberEuphoria - 27225001
NBS DescriptionShower mixers;
NBS Object NameShower mixers;
NBS Reference45-35-70/335
Product Documentation Linkwww.grohe.com/30898/search/search-result/product-details/?product=27225-G204&color=000&material=27225001
Product Page URLwww.grohe.com/30898/search/search-result/product-details/?product=27225-G204&color=000&material=27225001
Production Year2016
Type CommentsEuphoria - 27225001
Type NameEuphoria - 110 Shower Rail
URLwww.grohe.com
Vent ConnectionNo
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
