Grohe Euphoria 110 Mono Shower - 27256001

2.1k
0
- / 5
Rate this product

CEN442

Compliant

COBie

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

16/02/2016

Download BIM

Add to collection

Available for:

hand shower Mono (27 224 000)shower rail, 600 mm (27 499 000)GROHE QuickFix® (upper bracket adjustable for adaption to existing drilling holes)shower hose 1500 mm (28 161 000)soap dishGROHE DreamSpray® perfect spray pattern GROHE StarLight® chrome finishSpeedClean anti-limescale systemInner WaterGuide for a longer lifeMin. recommended pressure 0.1 bar

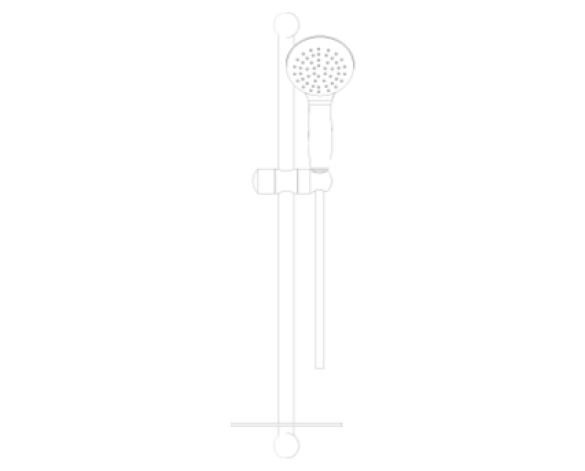

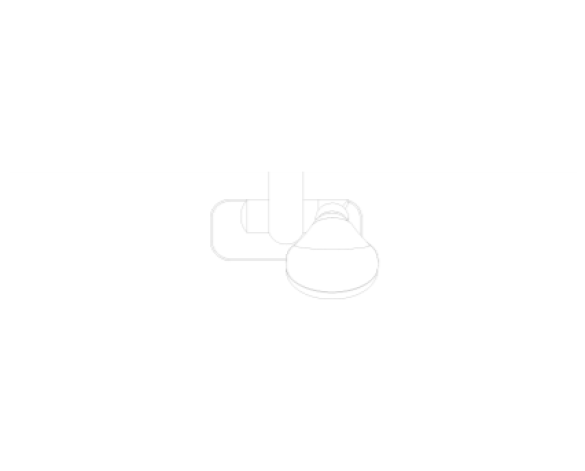

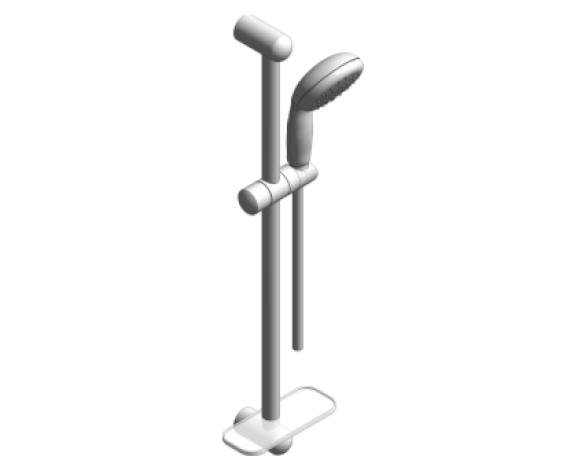

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

_BIMspec_GUID0
_created byJoe Shaw
_current revision1
_distributed bywww.bimstore.co.uk
ADA CompliantYes
Assembly CodeC1030220
Asset TypeFixed
Classification NameUniclass 2015
Classification ValuePr_40_20_87_75
Cold Water Connection Diameter10 mm
Cold Water Radius5 mm
ColorChrome
Components(27524) Shower Rail 900mm, (27597) Hand Shower 2 sprays, (28154) Relexaflex shower hose
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Cost$0.00
Created Byinfo@grohe.com
Created OnDecember 2015
CW ConnectionYes
CWFU4.8
DescriptionShower rail set
Documentation Installation Guidespecifi.bimstore.co.uk/document/share/1207
Documentation Maintenancespecifi.bimstore.co.uk/document/share/1197
Documentation Technicalspecifi.bimstore.co.uk/document/share/1207
Duration UnitYears
EcojoyYes
Expected Life0
FinishChrome
Hot Water Connection Diameter10 mm
Hot Water Radius5 mm
HW ConnectionYes
HWFU4.8
Industry StandardsN/A
KeynoteN13
Low Emitting MaterialYes
ManufacturerGrohe AG
MaterialChrome
Mixing LeverNo
ModelEuphoria 110 Mono - 27256001
NBS DescriptionShower fittings package
NBS Object NameShower fittings package
NBS Reference45-35-70/330
No of Holes0
Percentage of Recycled Content0
Production Year2015
Shower Head MaterialGrohe-Chrome
Type CommentsShower rail set
URLwww.grohe.com
Valve Spacing0 mm
Vent ConnectionNo
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
